Description

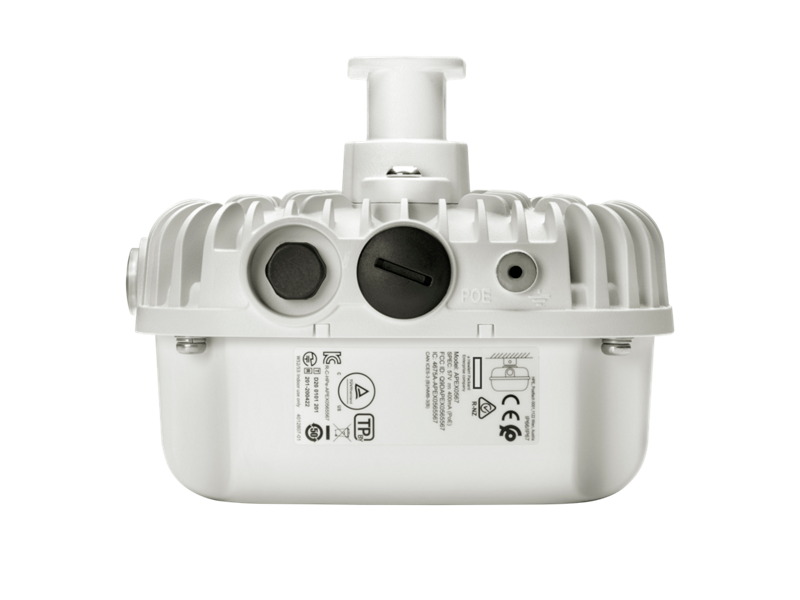

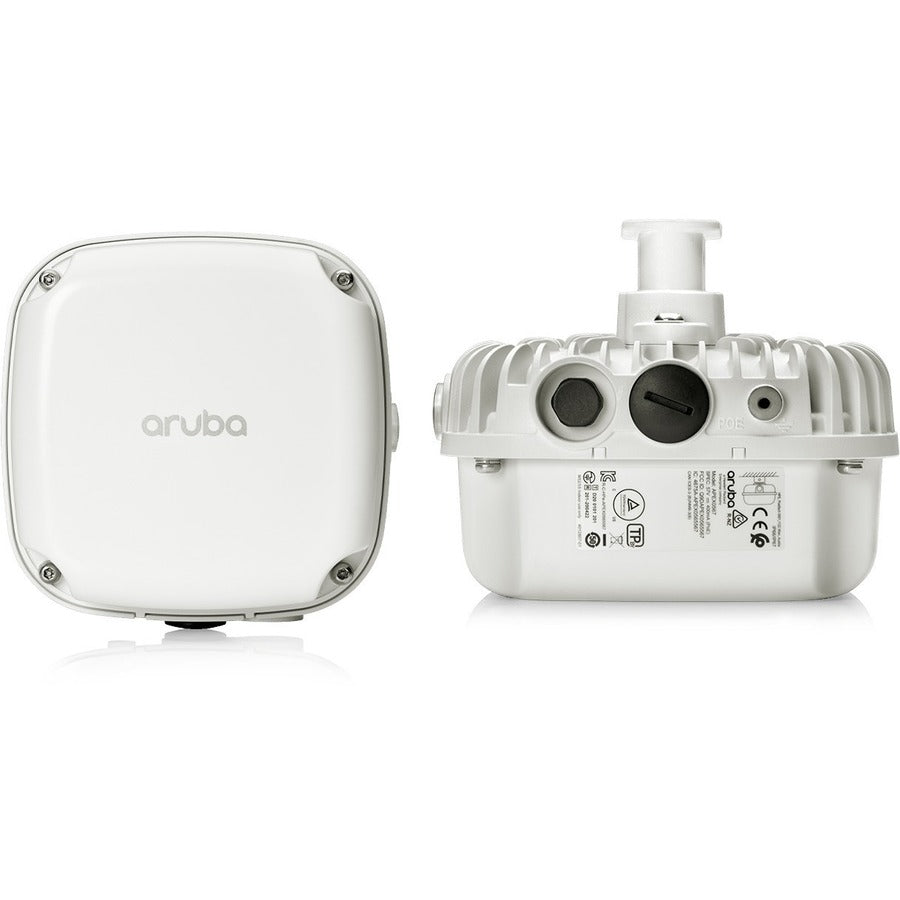

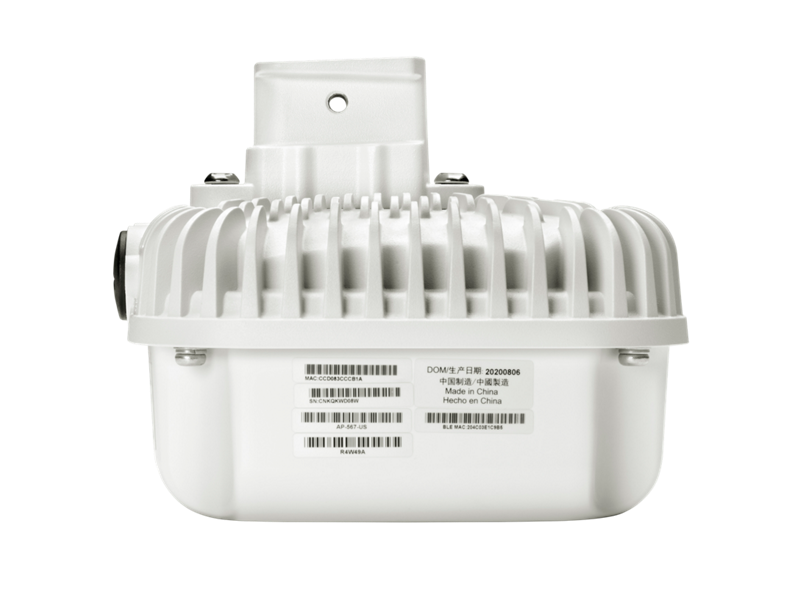

The HPE Aruba Networking AP‑565 (IL) is a robust, entry-level outdoor access point designed for high-performance wireless connectivity in environmentally harsh locations. Featuring dual-radio Wi-Fi 6 (802.11ax) technology, integrated omni-directional antennas, and support for Bluetooth 5 and Zigbee, it delivers up to 1.49 Gbps of aggregate throughput. Purpose-built to endure extreme temperatures, moisture, airborne particles, and wind speeds up to 165 mph, this TAA-compliant AP is ideal for outdoor campuses, warehouses, and industrial IoT deployments. Enhanced with ClientMatch, Dynamic Segmentation, and WPA3 security, the AP-565 ensures reliable, secure, and intelligent wireless access.
| Specification | Details |
|---|---|
| Product Number | R4W51A |
| Wi-Fi Standard | Wi‑Fi 6 (802.11ax); dual radio (2.4 GHz + 5 GHz) |
| Max Aggregate Data Rate | Up to 1.49 Gbps |
| Antenna Type | Integrated omni-directional antennas |
| Antenna Gain | 5 GHz: 5.4 dBi; 2.4 GHz: 3.2 dBi; BLE/Zigbee: 3.3 dBi |
| IoT Support | Bluetooth 5 and 802.15.4 (Zigbee) |
| Security Features | WPA3, Enhanced Open, TPM, PEF (Policy Enforcement Firewall) |
| Mounting Options | Optional mounting kit (sold separately) |
| Ethernet Port | 1x 10/100/1000BASE-T (RJ-45) |
| Power Consumption | Max: 15.6W; Idle: 4.2W; Deep-sleep: 1.7W |
| Operating Temperature | -40°C to +65°C |
| Environmental Resistance | Moisture, precipitation, dust, salt spray, 165 mph winds |
| Certifications | Wi-Fi Alliance Certified, UL2043, CE, FCC, EN 50155, EN 50121, IEC 61373 |
| Dimensions (H x W x D) | 11 x 16.5 x 16.5 cm |
| Weight | 1.03 kg |
| Warranty | Limited lifetime warranty |
