Description

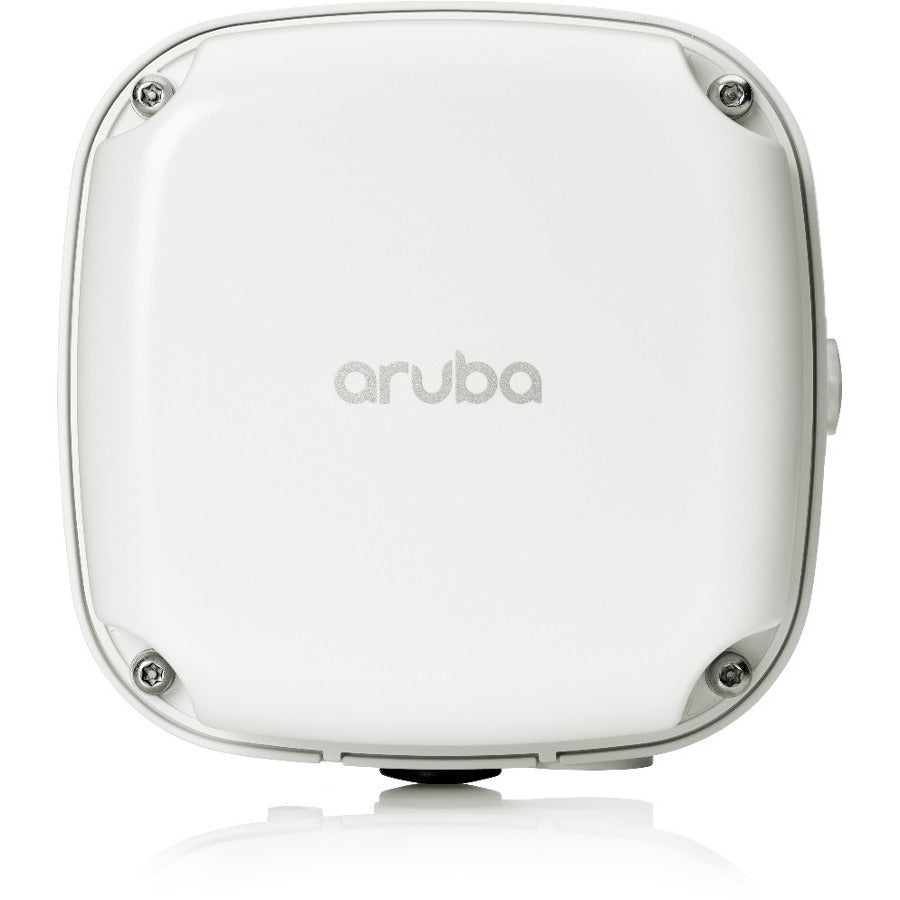

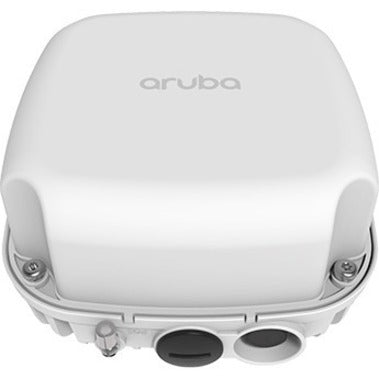

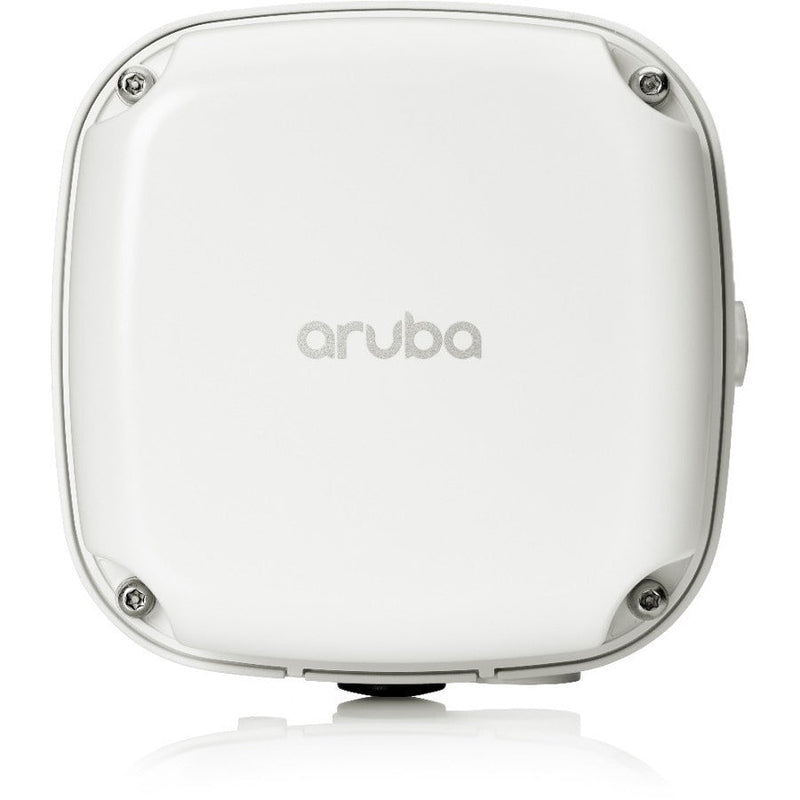

The HPE Aruba AP-565 is an entry-level outdoor Wi-Fi 6 (802.11ax) access point designed to deliver reliable, high-speed wireless connectivity in challenging environments. Ideal for warehouses, campuses, and outdoor installations, this rugged AP features a weatherproof and IP66-rated enclosure, internal antennas, and industrial-grade surge protection. With a maximum wireless throughput of 1.73 Gbit/s, dual-band operation, Bluetooth 5, and MIMO technology, it ensures high-performance networking for growing IoT and mobile demands. The AP-565 also supports wall, ceiling, and pole mounting for flexible deployment.
| Specification | Details |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Part Number | R4W40A |
| Brand | HPE |
| Product Series | 560 |
| Model | AP-565 |
| Wireless Standard | Wi-Fi 6 (802.11ax) |
| Bluetooth | Bluetooth 5 |
| Max Wireless Speed | 1.73 Gbit/s |
| Network Band | Dual Band (2.4 GHz / 5 GHz) |
| MIMO Technology | Yes |
| Data Encryption Standards | WPA3, WPA2-MPSK, WPA |
| Ethernet Ports (RJ-45) | 1 x Gigabit Ethernet |
| PoE Support | Yes (PoE PD Port) |
| USB Port | Yes |
| Mounting Options | Wall, Ceiling, Pole Mountable |
| Antenna Type | Internal |
| Ingress Protection Rating | IP66 |
| Power Consumption | 15.60 W |
| Dimensions (H x W x D) | 4.3" x 6.5" x 6.5" |
| Weight | 2.27 lb (Shipping: 2 lbs) |
| Product Condition | New and Factory Fresh |
