Description

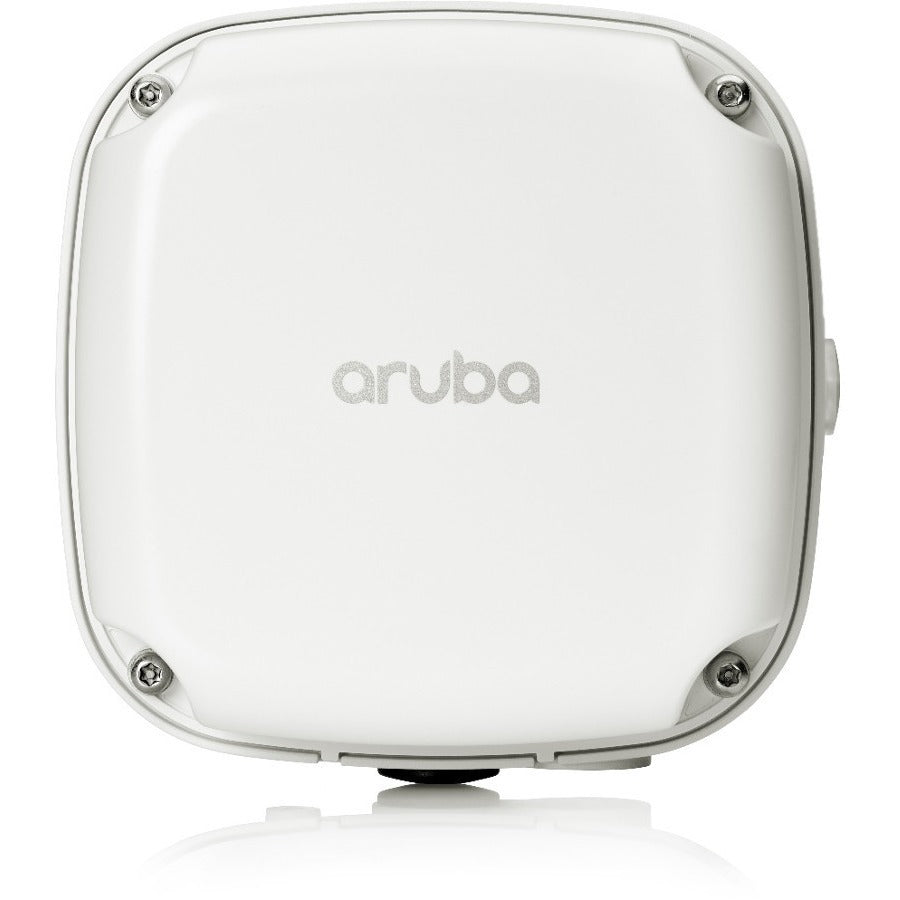

Deliver robust and reliable Wi-Fi 6 connectivity in the harshest outdoor environments with the HPE Aruba Networking AP-565 (RW). Designed for medium-density outdoor deployments, this access point features dual 2x2 MIMO radios, integrated omni-directional antennas, and a rugged enclosure rated for extreme temperatures, precipitation, and airborne contaminants.
With a maximum aggregate data rate of 1.49 Gbps, the AP‑565 offers enterprise-grade performance and secure connectivity for IoT-ready deployments. Built-in Bluetooth 5 and 802.15.4 (Zigbee) radios enable seamless integration of IoT devices without the need for overlays. Backed by industrial-grade surge protection and Dynamic Segmentation for secure user access, the AP-565 is the ideal choice for reliable and secure outdoor wireless coverage.
| Specification | Details |
|---|---|
| Product Number | R4W43A |
| AP Type | Outdoor Hardened, Wi-Fi 6, Dual Radio (5 GHz + 2.4 GHz), 2x2 MIMO |
| Antennas | Integrated Omni-directional |
| Antenna Gain | 5.4 dBi (5 GHz), 3.2 dBi (2.4 GHz), 3.3 dBi (BLE/Zigbee) |
| Maximum Data Rate | 1.49 Gbps (HE80/HE20) |
| Bluetooth / IoT Support | Bluetooth 5 and 802.15.4/Zigbee radios |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax (Wi-Fi 6), MU-MIMO, OFDMA, TWT |
| Security Features | WPA3, Enhanced Open, Dynamic Segmentation, TPM |
| Ports | 1x 10/100/1000BASE-T (RJ-45) |
| Mounting | Requires optional mounting kit |
| Power Consumption | Max: 15.6W, Idle: 4.2W, Deep Sleep: 1.7W |
| Operating Temperature | -40˚C to +65˚C (with solar loading) |
| Environmental Protection | Moisture, dust, contaminants, salt spray, 165 mph wind |
| Certifications | Wi-Fi Alliance, FCC/ISED, CE, UL2043, Railway EMC/Shock certs |
| Dimensions | 11 x 16.5 x 16.5 cm |
| Weight | 1.03 kg |
| Warranty | Limited Lifetime Warranty |
