Description

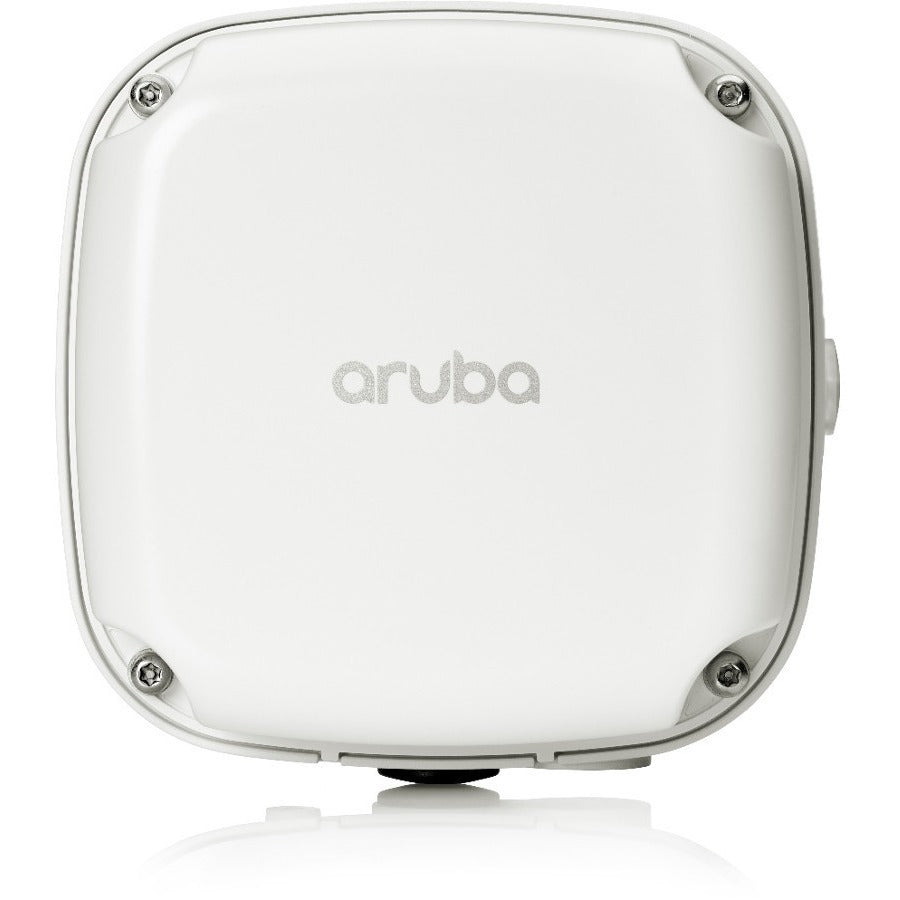

Deliver reliable, high-performance Wi-Fi 6 outdoors with the HPE Aruba Networking AP-565 (RW). Designed for environmentally challenging locations, this dual-radio access point offers up to 1.49 Gbps aggregate throughput and features integrated omnidirectional antennas for broad coverage. Ideal for medium-density outdoor environments such as warehouses, stadiums, and campuses, it withstands extreme conditions including temperatures from -40˚C to +65˚C and wind speeds up to 165 mph.
IoT-ready with built-in Bluetooth 5 and Zigbee radios, the AP-565 supports seamless connectivity for sensors and smart devices. With enterprise-grade features such as ClientMatch™, WPA3, Enhanced Open, Dynamic Segmentation, and TPM security, this access point is purpose-built to simplify deployment and enforce consistent security policies.
| Specification | Details |
|---|---|
| Model Number | R4W53A |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Radios | Dual Radio 2x2 MIMO (2.4 GHz and 5 GHz) |
| Max Data Rate | 1.49 Gbps (HE80/HE20) |
| Antenna Type | Integrated Omni-Directional |
| Antenna Gain | 5 GHz: 5.4 dBi, 2.4 GHz: 3.2 dBi |
| IoT Radios | Bluetooth 5, Zigbee (802.15.4) |
| Enclosure | Outdoor Hardened, Weatherproof, Temperature-Hardened |
| Environmental Rating | -40°C to +65°C; up to 165 mph wind |
| Ingress Protection | IP-rated (enclosed to resist moisture, dust, contaminants) |
| Security | WPA3, TPM, Enhanced Open, PEF (Policy Enforcement Firewall) |
| Mounting | Optional mounting kits available |
| Power Consumption | Max: 15.6W; Idle: 4.2W; Deep Sleep: 1.7W |
| Ports | 1x 10/100/1000BASE-T (RJ-45) |
| Certifications | TAA, Wi-Fi 6, CB Scheme, CE, FCC/ISED, Railway Certifications |
| Dimensions (W x D x H) | 11 x 16.5 x 16.5 cm |
| Weight | 1.03 kg |
| Warranty | Limited Lifetime Warranty |
