Description

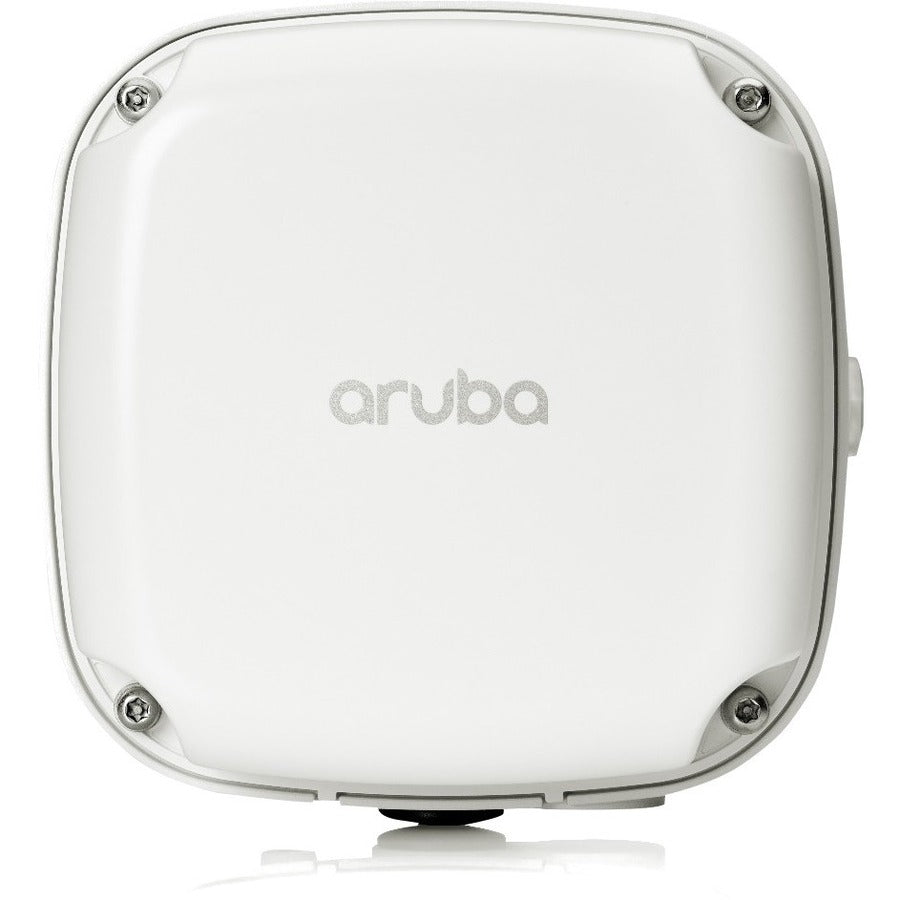

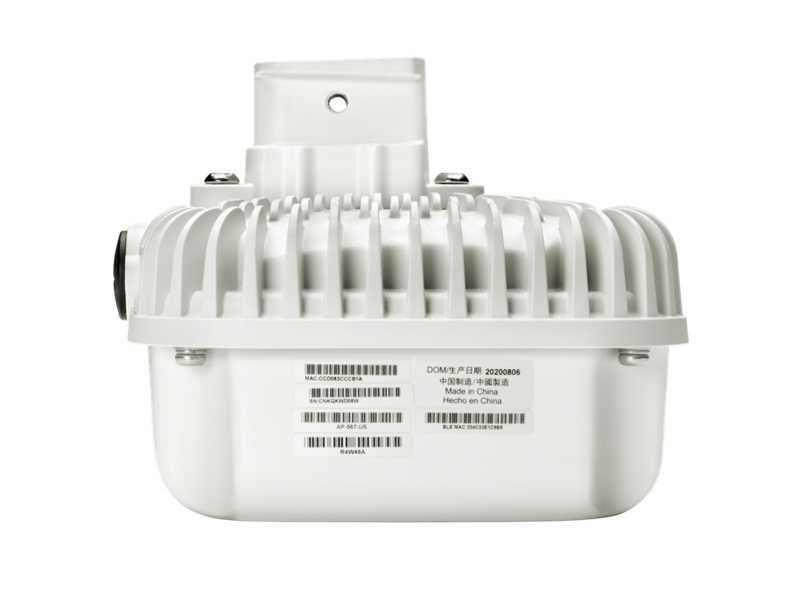

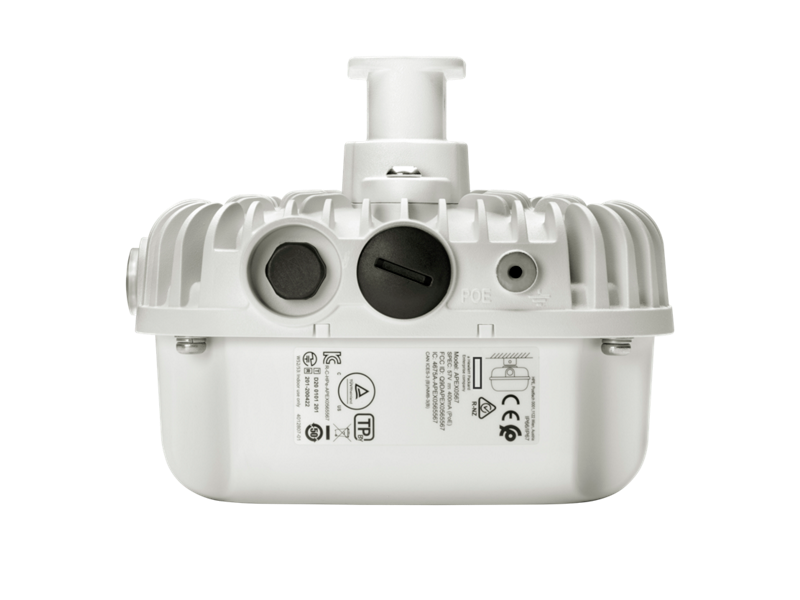

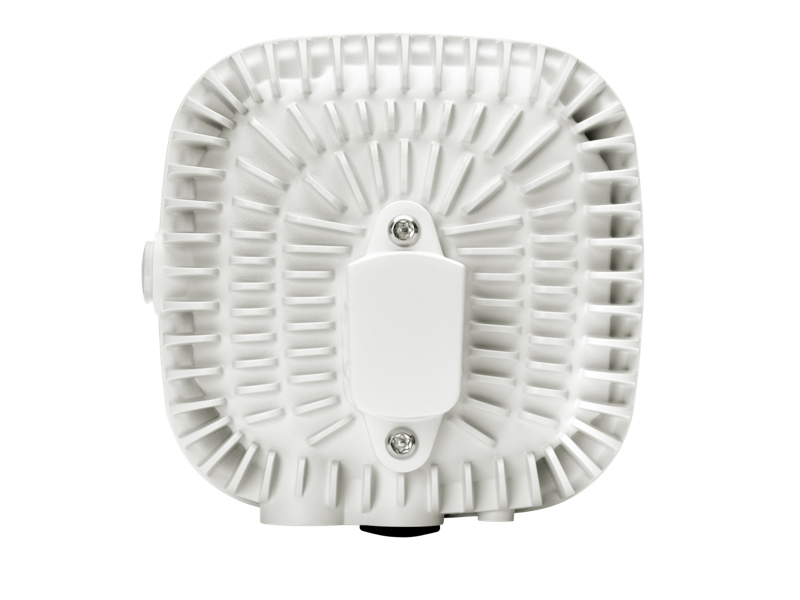

Deliver robust Wi-Fi 6 connectivity outdoors with the HPE Aruba Networking AP-567 (R4W56A). This entry-level, TAA-compliant access point features dual 2x2 MIMO radios and integrated directional antennas (90°H x 90°V) to support up to 1.49 Gbps throughput in environmentally harsh settings. Purpose-built for rugged environments such as warehouses and industrial sites, the AP-567 withstands extreme temperatures, airborne contaminants, dust, moisture, and wind speeds up to 165 mph.
The AP-567 is also IoT-ready, featuring integrated Bluetooth 5 and 802.15.4/Zigbee radios, making it ideal for modern enterprise deployments. Zero Touch Provisioning and Aruba Central support simplify deployment and management, while Dynamic Segmentation, WPA3, and onboard TPM deliver secure, scalable network access.
| Specification | Details |
|---|---|
| Product Number | R4W56A |
| AP Type | Outdoor Hardened, Dual-Radio Wi-Fi 6 (802.11ax), 2x2 MIMO for 2.4 GHz & 5 GHz |
| Maximum Data Rate | 1.49 Gbps (HE80/HE20) |
| Antenna Type | Integrated Directional Antennas (90°H x 90°V) |
| Antenna Gain | 5 GHz: 6.8 dBi, 2.4 GHz: 7.1 dBi, BLE/Zigbee: 3.0 dBi |
| IoT Support | Bluetooth 5 and 802.15.4/Zigbee |
| Connectivity | 1x 10/100/1000BASE-T (RJ-45) Ethernet port |
| Environmental Durability | -40°C to +65°C, up to 165 mph wind, dust, salt, moisture, contaminants |
| Mounting | Optional mounting kit required |
| Power Consumption | Max: 15.6W, Idle: 4.2W, Deep Sleep: 1.7W |
| Security | WPA3, Enhanced Open, TPM, Dynamic Segmentation, PEF |
| Software Features | OFDMA, MU-MIMO, TWT, Aruba ClientMatch, Zero Touch Provisioning |
| Certifications | TAA, Wi-Fi 6, UL2043, CE, FCC, EN 50155, EN 60601, and others |
| Dimensions | 11 x 16.5 x 16.5 cm |
| Weight | 1.09 kg |
| Warranty | Limited Lifetime Warranty |
