Description

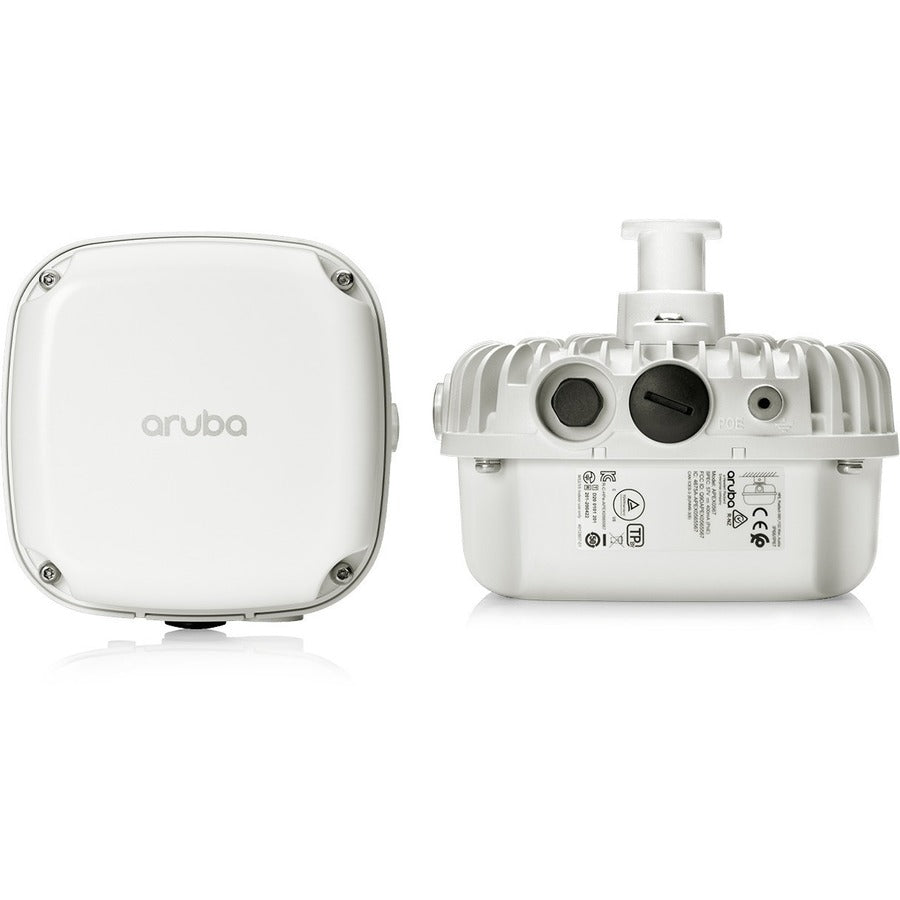

Deliver dependable Wi-Fi 6 performance in the harshest outdoor conditions with the HPE Aruba Networking AP‑567 (EG). This dual-radio 802.11ax access point features integrated directional antennas and is built for medium-density outdoor or warehouse deployments.
The AP-567 offers up to 1.49 Gbps aggregate data rate, Bluetooth 5 and 802.15.4 (Zigbee) support for IoT connectivity, and AI-powered client and RF optimization to ensure strong, consistent performance. Ruggedized for extreme environments, it operates in temperatures ranging from -40°C to +65°C and resists moisture, dust, and wind speeds up to 165 mph.
Dynamic Segmentation, WPA3 security, and Trusted Platform Module (TPM) ensure secure and efficient network access, while HPE Aruba Central provides cloud-based, unified network management.
| Specification | Details |
|---|---|
| Model Number | R4W45A |
| AP Type | Outdoor, Hardened, Dual-Radio Wi-Fi 6 (802.11ax) |
| Radios | 5 GHz 2x2 MIMO, 2.4 GHz 2x2 MIMO |
| Max Data Rate | 1.49 Gbps (HE80/HE20) |
| Antenna Type | Integrated 90°H x 90°V Directional Antennas |
| Antenna Gain | 5 GHz: 6.8 dBi; 2.4 GHz: 7.1 dBi |
| IoT Support | Bluetooth 5, Zigbee (802.15.4), integrated radio |
| Environmental Durability | -40°C to +65°C, resists 165 mph winds, dust, salt, moisture |
| Connectivity | 1x 10/100/1000BASE-T (RJ-45) Ethernet port |
| Power Consumption | Max: 15.6W; Idle: 4.2W; Deep Sleep: 1.7W (power source sold separately) |
| Mounting | Optional mounting kit (sold separately) |
| Security Features | WPA3, Enhanced Open, TPM, PEF Firewall, Dynamic Segmentation |
| Certifications | Wi-Fi 6 Certified, CE, FCC, RED, Railway (EN 50155, IEC 61373), UL2043 |
| Dimensions (W x H x D) | 16.5 x 16.5 x 11 cm |
| Weight | 1.09 kg |
| Warranty | Limited Lifetime Warranty |
| Region | Available in Egypt only |
