Description

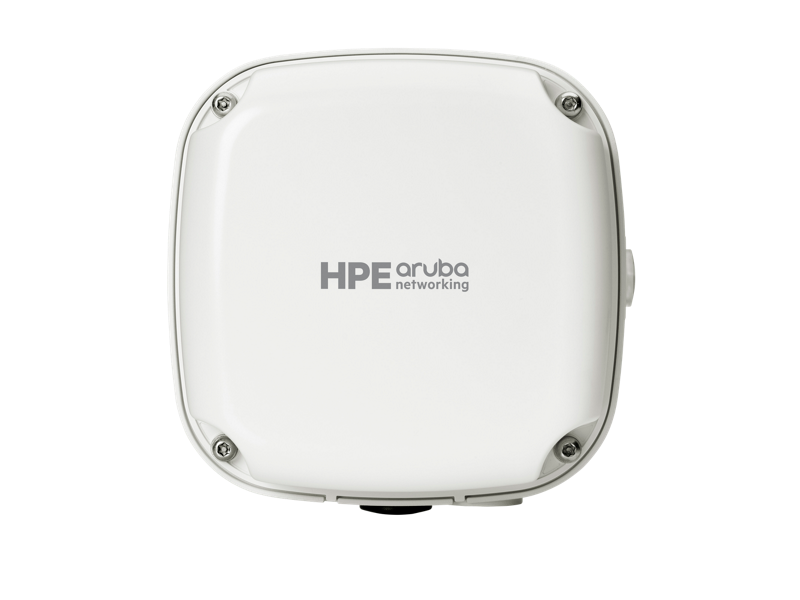

The HPE Aruba Networking AP-567 (IL) is a rugged, cost-effective Wi-Fi 6 outdoor access point built to perform in extreme environments. Ideal for industrial sites, warehouses, and exposed outdoor spaces, it features integrated 90° directional antennas and dual-radio 2x2 MIMO technology, supporting maximum aggregate data rates up to 1.49 Gbps. With built-in Bluetooth 5 and Zigbee support, it's also IoT-ready, allowing seamless connectivity for smart devices.
The AP-567 is designed to endure persistent moisture, dust, salt spray, and temperatures from -40°C to +65°C, including resistance to winds up to 165 mph. Featuring HPE Aruba’s advanced capabilities such as Dynamic Segmentation, WPA3 security, ClientMatch optimization, and AI-powered analytics, this outdoor access point ensures robust connectivity and simplified network management with HPE Aruba Central.
| Specification | Details |
|---|---|
| Product Number | R4W46A |
| AP Type | Outdoor, Wi-Fi 6, Dual-Radio (2.4 GHz & 5 GHz), 2x2 MIMO |
| Max Data Rate | Up to 1.49 Gbps (802.11ax, HE80/HE20) |
| Antennas | Integrated 90°H x 90°V Directional Antennas |
| Antenna Gain | 2.4 GHz: 7.1 dBi, 5 GHz: 6.8 dBi, BLE/Zigbee: 3.0 dBi |
| IoT Support | Bluetooth 5 and 802.15.4/Zigbee |
| Operating Temp. Range | -40°C to +65°C |
| Ingress Protection | Weatherproof and dust-resistant (IP-rated enclosure) |
| Wind Resistance | Up to 165 mph wind speeds |
| Power Consumption | Max 15.6W (idle: 4.2W, deep sleep: 1.7W) |
| Power Input | Power sources sold separately |
| Ethernet Ports | 1 x 10/100/1000BASE-T RJ-45 |
| Dimensions | 11 x 16.5 x 16.5 cm |
| Weight | 1.09 kg |
| Mounting | Requires optional mounting kit |
| Security | WPA3, TPM, Enhanced Open, Dynamic Segmentation |
| Certifications | Wi-Fi 6, UL2043, CE, FCC, Railway EMC & Shock Certifications |
| Warranty | Limited Lifetime Warranty |
