Description

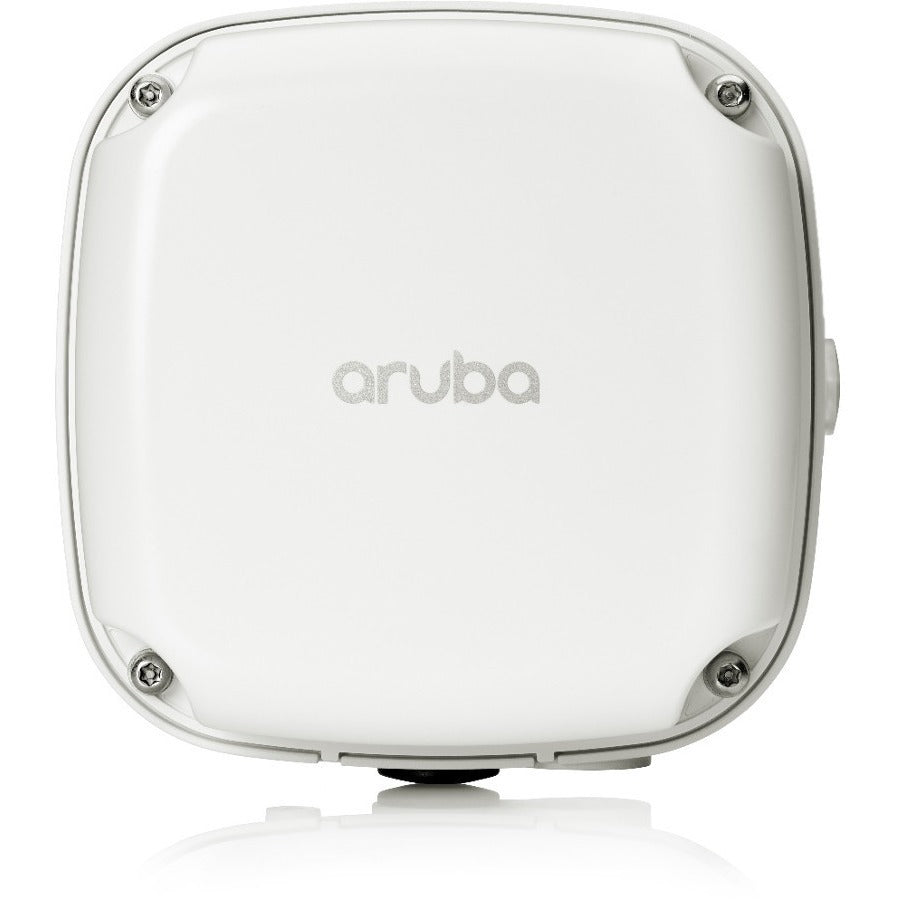

The HPE Aruba Networking AP-567 (RW) is a rugged, entry-level Wi-Fi 6 (802.11ax) outdoor access point designed for environmentally challenging locations. With built-in 90° directional antennas, this compact unit delivers up to 1.49 Gbps of aggregate data throughput across dual radios. Equipped with industrial-grade surge protection, integrated Bluetooth 5 and 802.15.4 (Zigbee) radios, and advanced client optimization technologies, the AP-567 ensures reliable performance for outdoor and warehouse environments.
Whether deployed on campuses, transportation hubs, or industrial zones, it offers robust security with Dynamic Segmentation, WPA3 encryption, and policy enforcement firewalls. The AP-567 is ready to withstand extreme temperatures, persistent moisture, high winds up to 165 mph, and airborne contaminants, making it ideal for IoT-heavy outdoor networks.
| Specification | Details |
|---|---|
| Product Number | R4W48A |
| AP Type | Outdoor, Wi-Fi 6, Hardened Dual Radio (2x2 MIMO per band) |
| Radios | Dual 2x2 MIMO – 2.4 GHz and 5 GHz |
| Antennas | Integrated 90°H x 90°V directional antennas |
| Antenna Gain (2.4 / 5 GHz) | 7.1 dBi (2.4 GHz), 6.8 dBi (5 GHz) |
| IoT Radios | Integrated Bluetooth 5 and 802.15.4 (Zigbee), 3.0 dBi antenna |
| Data Rate | Up to 1.49 Gbps aggregate throughput (HE80/HE20) |
| Security | WPA3, Enhanced Open, TPM, Dynamic Segmentation, PEF |
| Features | OFDMA, MU-MIMO, TWT, ClientMatch, Zero Touch Provisioning |
| Power Consumption | Max: 15.6W / Idle: 4.2W / Deep Sleep: 1.7W (Power sold separately) |
| Ethernet Ports | 1x 10/100/1000BASE-T (RJ-45) |
| Operating Temp. Range | -40°C to +65°C |
| Weather Resistance | IP-rated for dust, moisture, salt, precipitation, and 165 mph wind |
| Mounting Options | Optional mounting kits (sold separately) |
| Certifications | Wi-Fi 6, CB Scheme, cTUVus, UL2043, CE, RED, Railway certifications |
| Dimensions (W x H x D) | 11 x 16.5 x 16.5 cm |
| Weight | 1.09 kg |
| Warranty | Limited lifetime warranty |
