Description

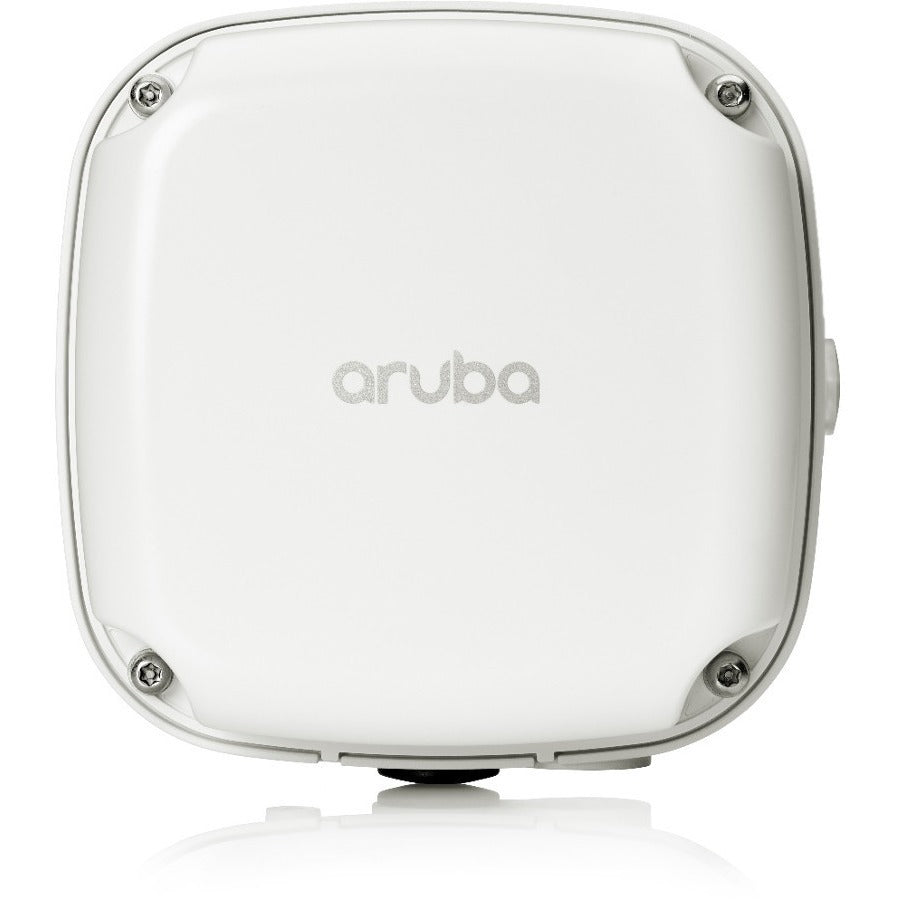

The HPE Aruba Networking AP‑567 (RW) is a robust, entry-level outdoor access point built for environmentally challenging locations. Supporting the latest Wi-Fi 6 (802.11ax) standard, it delivers up to 1.49 Gbps in aggregate throughput with dual-radio 2x2 MIMO capabilities. Equipped with integrated directional antennas (90°H x 90°V), Bluetooth 5, and Zigbee support, this AP enables seamless IoT integration and high-performance wireless coverage in extreme conditions such as persistent moisture, dust, salt spray, and temperatures from -40°C to +65°C.
Designed with a compact form factor, TAA compliance, and hardened against wind speeds up to 165 mph, the AP‑567 is ideal for outdoor warehouses, transportation hubs, industrial campuses, and more. Enhanced security features include Dynamic Segmentation, WPA3 encryption, and a built-in Trusted Platform Module (TPM) for secure credential storage.
| Feature | Details |
|---|---|
| Product Number | R4W58A |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Radios | Dual radio (5 GHz and 2.4 GHz), 2x2 MIMO |
| Max Aggregate Data Rate | 1.49 Gbps |
| Antenna Type | Integrated 90°H x 90°V directional antennas |
| Antenna Gain | 5 GHz: 6.8 dBi, 2.4 GHz: 7.1 dBi, BLE/Zigbee: 3.0 dBi |
| IoT Support | Bluetooth 5, Zigbee (802.15.4) |
| Security Features | WPA3, Enhanced Open, Dynamic Segmentation, Policy Enforcement Firewall, TPM |
| Power Consumption | Max: 15.6W, Idle: 4.2W, Deep Sleep: 1.7W |
| Power Source | Sold separately |
| Ports | 1 x RJ-45 10/100/1000BASE-T (E0) |
| Mounting Options | Requires optional mounting kit |
| Operating Temperature | -40°C to +65°C |
| Environmental Durability | Resistant to moisture, dust, salt spray; wind speeds up to 165 mph |
| Certifications | TAA compliant, CB Scheme, cTUVus, UL2043, Wi-Fi Alliance (802.11a/b/g/n/ac/ax), CE, RED, EMC, LVD, Railway (EN 50155, EN 50121, IEC 61373) |
| Dimensions | 11 x 16.5 x 16.5 cm |
| Weight | 1.09 kg |
| Warranty | Limited Lifetime Warranty |
