Description

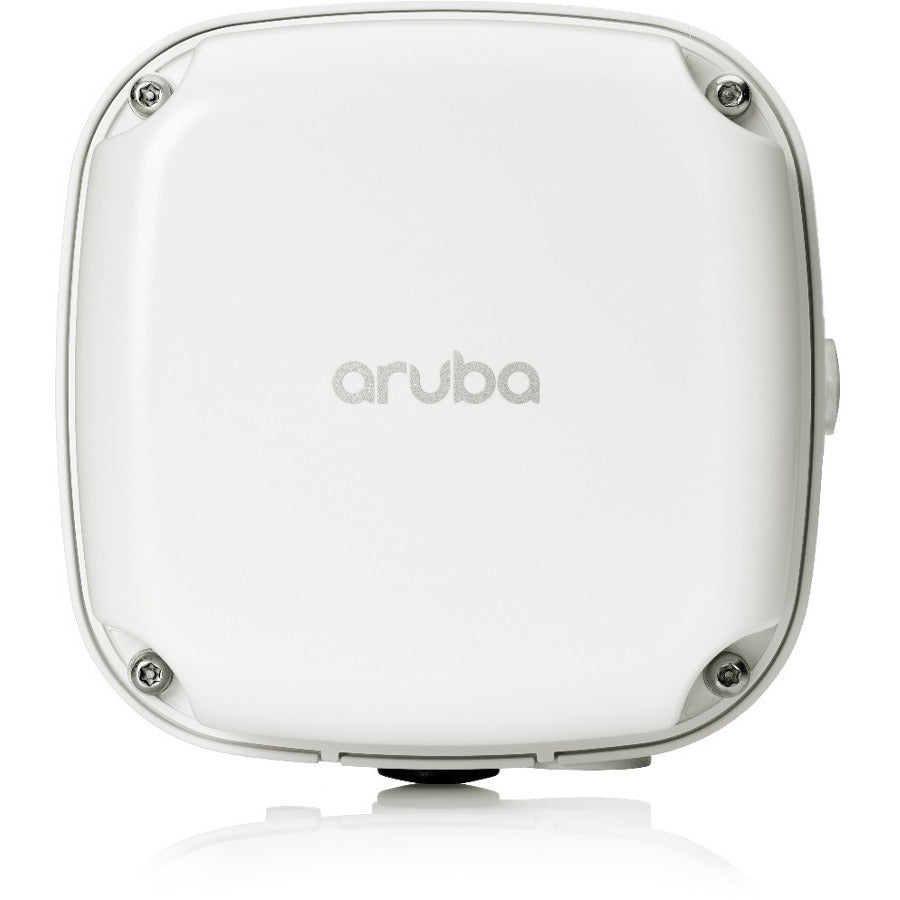

Delivering cost-effective outdoor Wi-Fi 6 connectivity, the HPE Aruba Networking AP-567 (R4W49A) is designed to thrive in the most demanding environments. Built with integrated directional antennas, this rugged dual-radio 802.11ax access point offers a maximum aggregate data rate of 1.49 Gbps and withstands extreme temperatures, heavy moisture, and high wind speeds. Equipped with Bluetooth 5 and Zigbee for IoT integration, advanced security with WPA3, and Aruba’s ClientMatch technology, it’s ideal for warehouses, industrial facilities, and other outdoor deployments. Simplify installation with Zero Touch Provisioning and manage effortlessly through Aruba Central.
| Specification | Details |
|---|---|
| Product Number | R4W49A |
| Product Type | Outdoor Hardened Access Point |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Radios | Dual radio 2x2 MIMO (5 GHz and 2.4 GHz) |
| Max Data Rate | 1.49 Gbps (HE80/HE20) |
| Antenna Type | Built-in 90°H x 90°V directional antennas |
| 5 GHz Antenna Gain | 6.8 dBi |
| 2.4 GHz Antenna Gain | 7.1 dBi |
| BLE/Zigbee Antenna Gain | 3.0 dBi |
| IoT Support | Integrated Bluetooth 5 and 802.15.4/Zigbee radio |
| Mounting Options | Optional mounting kits available |
| Network Interface | 1x 10/100/1000BASE-T (RJ-45) Ethernet port |
| Power Consumption | Max 15.6W (active), 4.2W (idle), 1.7W (deep sleep) |
| Power Source | Sold separately |
| Environmental Durability | -40˚C to +65˚C, withstands 165 mph winds, dust, salt spray, moisture |
| Security Features | WPA3, Enhanced Open, PEF, TPM |
| Management Platform | Aruba Central |
| Dimensions (WxDxH) | 11 x 16.5 x 16.5 cm |
| Weight | 1.09 kg |
| Certifications | FCC/ISED, CE, CB Scheme, Wi-Fi 6 Certified, UL2043, Railway Certifications |
| Warranty | Limited Lifetime Warranty |
| Available Region | US Only |
