Description

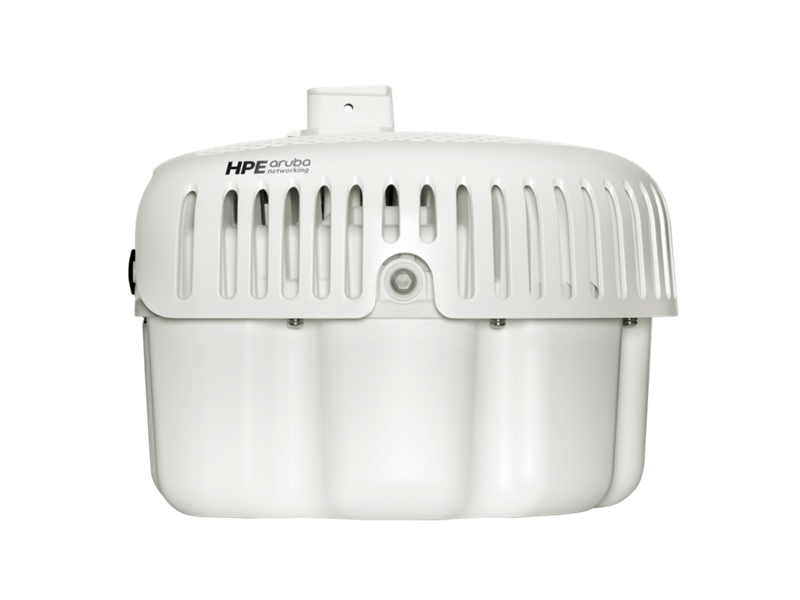

The HPE Aruba Networking AP‑584 (IL) is a high-performance Wi-Fi 6 outdoor access point designed for demanding enterprise and industrial deployments. Engineered to withstand extreme weather conditions with IP66/67-rated enclosures, the AP-584 delivers a maximum data rate of 2.97 Gbps. It supports external dual-band antennas, Bluetooth and Zigbee radios for IoT readiness, and flexible power options including 802.3bt PoE and direct AC input.
Ideal for large campuses, industrial zones, and harsh outdoor environments, this model ensures continuous connectivity, high throughput, and integrated security with advanced policy enforcement, dynamic segmentation, and WPA3 authentication.
| Specification | Details |
|---|---|
| Model | AP‑584 (IL) |
| Product Number | R7T17A |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Radios | Dual-radio: 5 GHz 4x4 MIMO, 2.4 GHz 2x2 MIMO |
| Max Aggregate Throughput | 2.97 Gbps |

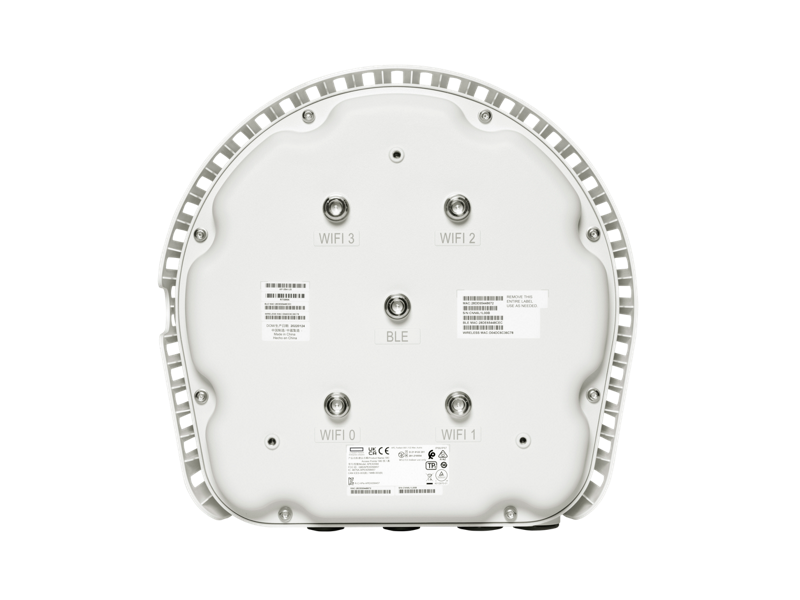

| Antenna Configuration | Four Nf connectors for external Wi-Fi antennas; One Nf for BLE/Zigbee |
| Included Antennas | 5 dBi omni-directional antenna |
| Power Options | IEEE 802.3bt Class 6 PoE (port E0), or AC (110–240V with AP-AC-MLX kit) |
| Max Power Consumption | 71 W (AC), 49.5 W (PoE 802.3bt Class 6) |
| Mounting | Optional mounting kits available |
| Ingress Protection | IP66/67 rated |
| Operating Temperature | -40°C to +65°C |
| IoT Support | Integrated Bluetooth and 802.15.4/Zigbee radios |
| Security | WPA3, Enhanced Open, Dynamic Segmentation, TPM, Policy Enforcement Firewall |
| Dimensions (H x W x D) | 24.4 x 32.4 x 31.2 cm |
| Weight | 5.52 kg |
| Certifications | Wi-Fi Alliance, Bluetooth SIG, CE, FCC/ISED, UL/IEC/EN 62368-1, and more |
| Warranty | Limited lifetime warranty |
