Description

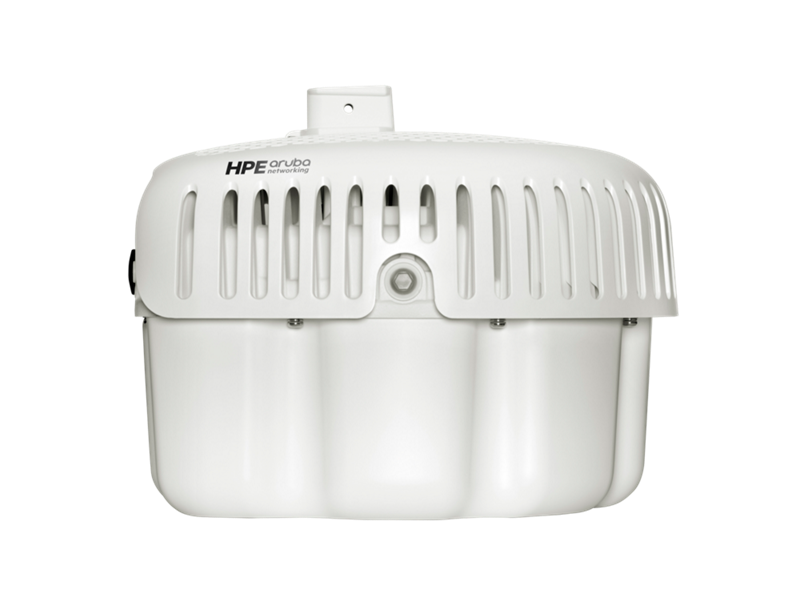

The HPE Aruba Networking AP-584 (IL) is a high-performance Wi-Fi 6 outdoor access point designed for the toughest environments, with IP66/67 weatherproofing, industrial-grade surge protection, and support for extreme temperatures ranging from -40°C to +65°C. Offering dual radio 4x4 MIMO operation and maximum aggregate throughput of 2.97 Gbps, it ensures seamless, high-speed connectivity for enterprise and Industrial IoT applications.
Equipped with external antenna connectors, advanced Bluetooth and Zigbee radios, and multiple power options including PoE and direct AC, this AP delivers deployment flexibility and superior coverage. Enhanced security is built in, featuring WPA3, dynamic segmentation, and a trusted platform module (TPM) for protected credentials and boot code. Managed via Aruba Central, the AP-584 offers AI-driven analytics, seamless policy enforcement, and Zero Touch Provisioning.
| Specification | Details |
|---|---|
| Model Number | R7T02A |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Radios | Dual-radio: 4x4 MIMO (5GHz), 2x2 MIMO (2.4GHz) |
| Max Data Rate | 4.8 Gbps (5 GHz) + 575 Mbps (2.4 GHz); Aggregate: 2.97 Gbps |

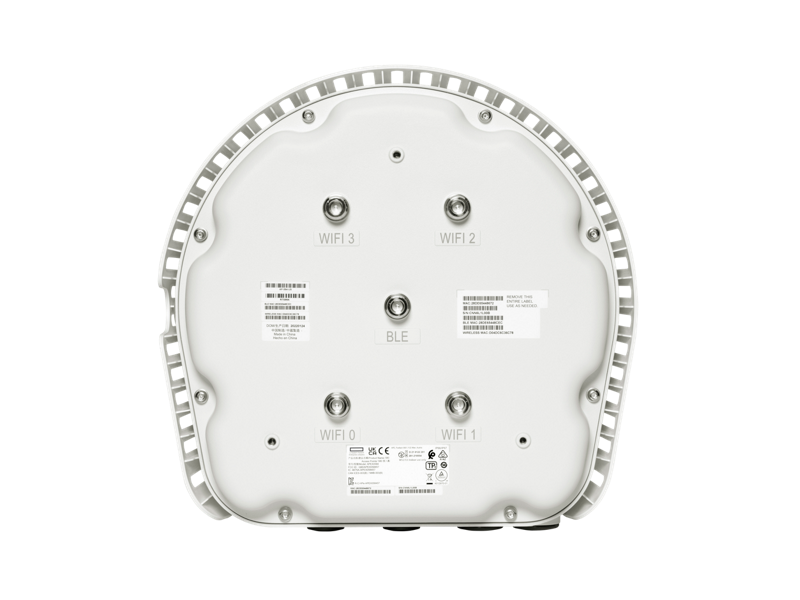

| Antenna Type | External (4x dual-band Nf connectors + 1 BLE Nf connector); includes 5dBi omni antennas |
| Mounting Options | Optional mounting kits available |
| Power Options | 802.3bt PoE (Class 6), direct AC power (with optional kit) |
| Power Consumption | Max 71W (AC), 49.5W (PoE Class 6); Idle: 9.2W (PoE), 10.8W (AC) |
| Environmental Rating | IP66/67, -40°C to +65°C |
| Security | WPA3, Enhanced Open, TPM, Policy Enforcement Firewall |
| IOT Support | Integrated Bluetooth & Zigbee radios |
| Certifications | Wi-Fi Alliance, Bluetooth SIG, CE, FCC/ISED, UL/IEC/EN 62368-1, RED, EMC, LVD |
| Dimensions (H x W x D) | 24.4 x 32.4 x 31.2 cm |
| Weight | 5.52 kg |
| Warranty | Limited Lifetime Warranty |
| Region | Available in Israel (IL) only |
