Description
Built for the most challenging outdoor environments, the HPE Aruba Networking AP‑584 (JP) delivers enterprise-grade Wi-Fi 6 performance with dual radio 4x4 MIMO and flexible connectivity options. Supporting a maximum aggregate throughput of 2.97 Gbps, this rugged access point ensures high availability with weatherproof protection (IP66/67) and extreme temperature tolerance (−40°C to +65°C).
The AP‑584 (JP) is a future-ready platform with integrated Bluetooth and Zigbee radios to support Industrial IoT, advanced security through dynamic segmentation, and seamless integration with HPE Aruba Networking Central for centralized management. This model features external antenna connectors, ideal for directional coverage in expansive outdoor settings.
| Specification | Details |
|---|---|
| Product Number | R7T03A |
| Radio Technology | Dual radio (2.4 GHz 2x2 + 5 GHz 4x4) Wi‑Fi 6 (802.11ax) |
| Max Data Rate | Up to 2.97 Gbps total (4.8 Gbps on 5 GHz + 575 Mbps on 2.4 GHz) |

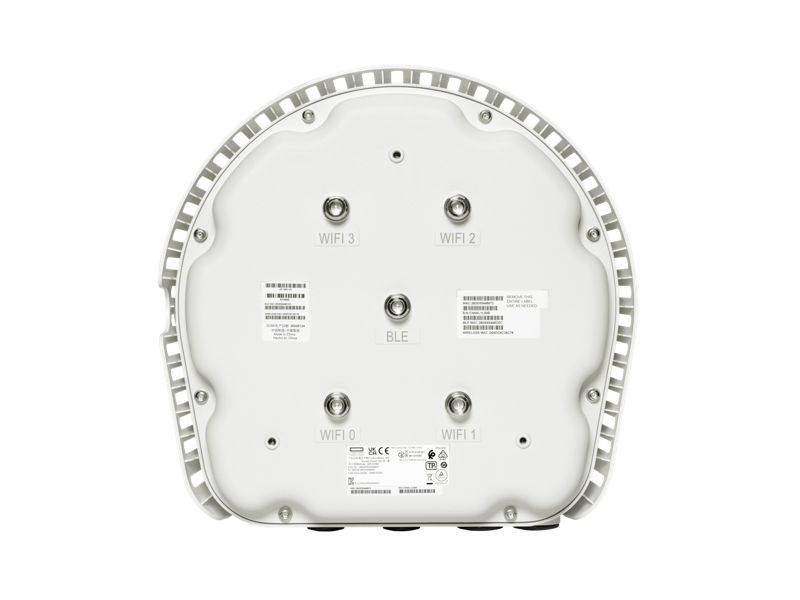

| Antenna Type | 4x dual-band Nf connectors (external); 1x BLE/Zigbee Nf connector |
| Bluetooth/Zigbee | Integrated high-power radios for IoT |
| Input Power Options | 802.3bt PoE Class 6 or AC (100–240V with optional AP-AC-MLX kit) |
| Power Consumption (Max) | Up to 71 W (AC), 49.5 W (PoE), 3 W deep sleep |
| Mounting | Optional mounting kits available |
| Operating Temperature | −40°C to +65°C (−40°F to +149°F) |
| Ingress Protection | IP66/IP67, industrial surge protection |
| Dimensions (HxWxD) | 24.4 x 32.4 x 31.2 cm |
| Weight | 5.52 kg |
| Certifications | Wi-Fi Alliance, Bluetooth SIG, FCC, CE, IEC/EN 62368-1, and more |
| Management | Aruba Central (Cloud), CLI, Web UI |
| Warranty | Limited lifetime warranty |
