Description

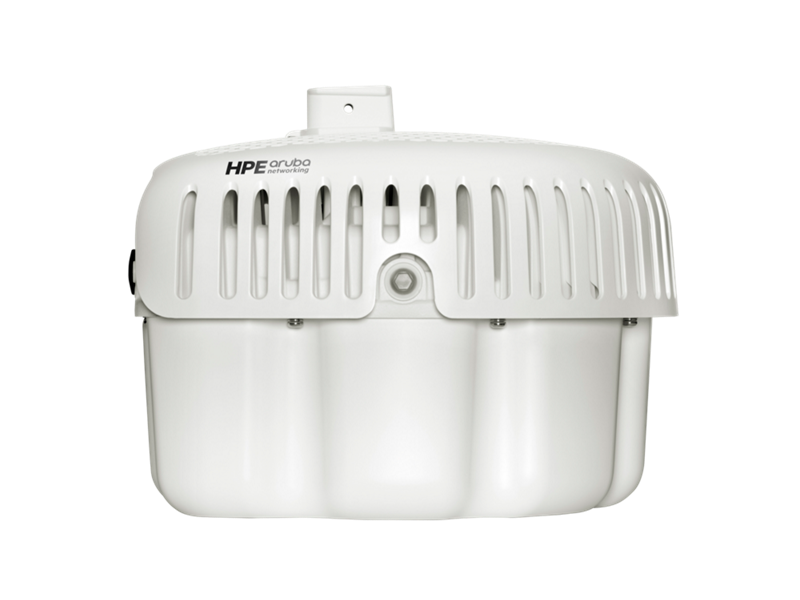

The HPE Aruba Networking AP‑584 (RW) is a rugged, high-performance outdoor access point designed for challenging environments. Equipped with dual radio 4x4 MIMO and Wi-Fi 6 (802.11ax) capabilities, this AP delivers a peak aggregate data rate of up to 2.97 Gbps. It supports external antennas, advanced client optimization, and robust IoT integration — making it ideal for large-scale campuses, industrial IoT, and enterprise outdoor deployments.
Built to withstand extreme weather conditions with an IP66/67 rating and operational range of -40°C to +65°C, the AP‑584 ensures 24/7 uptime. Enhanced with dynamic segmentation, WPA3 security, and integrated BLE/Zigbee radios, it provides secure, scalable connectivity with simplified policy enforcement.
Key Features
-
Dual-radio 802.11ax (Wi-Fi 6) with OFDMA & MU-MIMO
-
Up to 2.97 Gbps aggregate throughput
-
External antenna support (4x Nf connectors included)
-
BLE and Zigbee radios for IoT
-
Operates in temperatures from -40°C to +65°C
-
IP66/67-rated enclosure with industrial surge protection
-
Dual redundant power: PoE (802.3bt) and AC
| Specification | Details |
|---|---|
| Product Number | R7T15A |
| Product Name | HPE Aruba Networking AP‑584 (RW) Outdoor Access Point |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Radios | Dual radio – 4x4 MU-MIMO @ 5GHz, 2x2 @ 2.4GHz |
| Max Data Rates | 4.8 Gbps (5 GHz) + 575 Mbps (2.4 GHz) |
| Aggregate Throughput | Up to 2.97 Gbps |

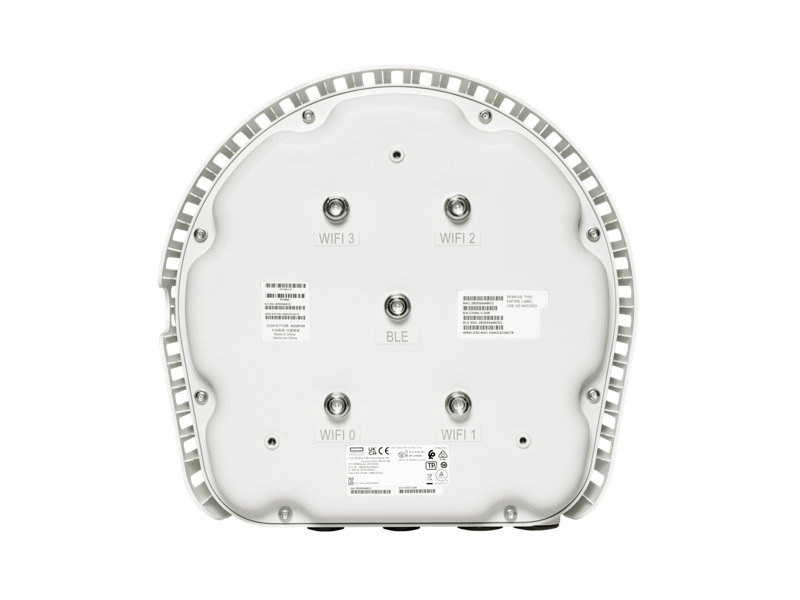

| Antenna Connectors | 4x Nf connectors (dual-band), 1x BLE/Zigbee Nf connector (5dBi included) |
| IoT Support | Integrated Bluetooth and 802.15.4/Zigbee radios |
| Power Options | PoE+ (802.3at/bt), Class 6 |
| Power Consumption | Max 71W (AC), 49.5W (PoE, Class 6) |
| Mounting Options | Optional mounting kits available |
| Enclosure Rating | IP66/67, surge protected |
| Operating Temp. Range | -40°C to +65°C |
| Dimensions (H x W x D) | 24.4 x 32.4 x 31.2 cm |
| Weight | 5.52 kg |
| Certifications | Wi-Fi Alliance, FCC, CE, UL, TAA Compliant |
| Warranty | Limited lifetime warranty |
