Description

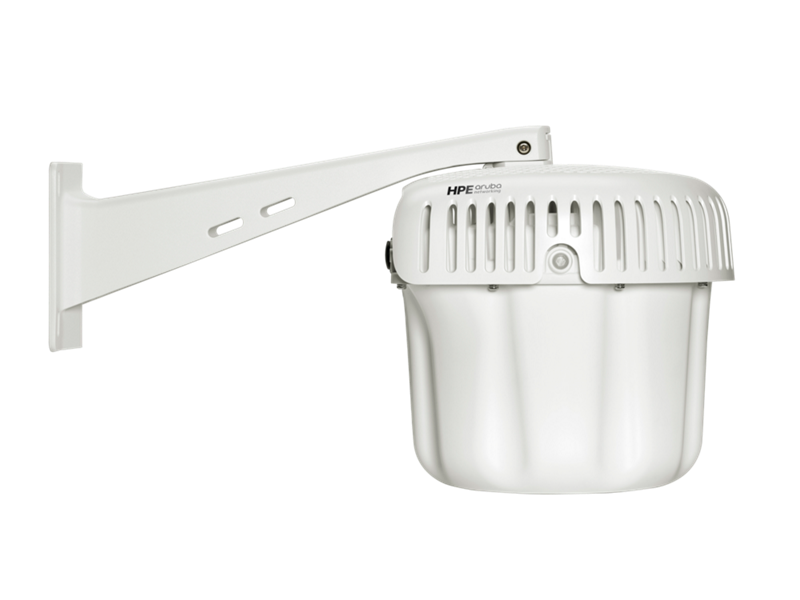

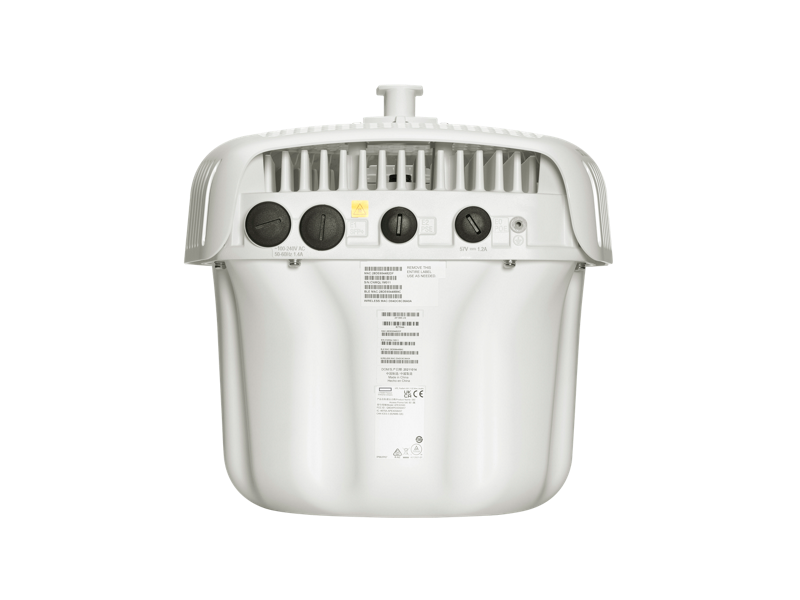

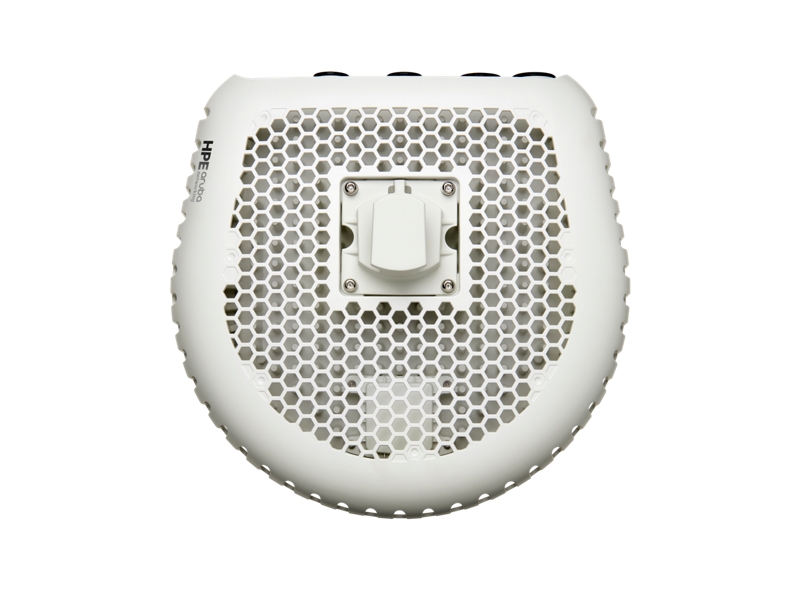

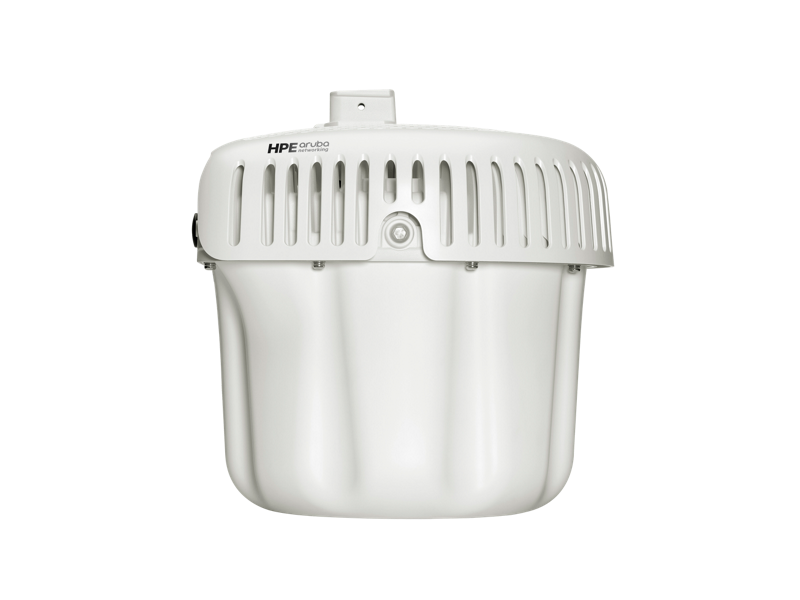

The HPE Aruba Networking AP‑585 (JP) is a high-performance outdoor Wi‑Fi 6 access point designed for industrial and enterprise environments across Japan. Engineered with dual-radio 4x4 MIMO and internal omni-directional antennas, this TAA-compliant unit delivers an impressive maximum data rate of up to 2.97 Gbps. Built to withstand extreme temperatures, dust, and moisture, it’s ideal for large outdoor deployments.
Backed by a limited lifetime warranty, the AP‑585 features integrated Bluetooth and Zigbee radios, flexible power options (PoE or AC), and enhanced security with WPA3 and dynamic segmentation. Whether for industrial IoT, education, or enterprise, it enables fast, secure, and scalable wireless networking.
| Specification | Details |
|---|---|
| Product Number | R7T23A |
| Wi-Fi Standard | Wi‑Fi 6 (802.11ax) |
| Radios | Dual Radio: 5 GHz (4x4 MIMO), 2.4 GHz (2x2 MIMO) |
| Max Data Rates | 4.8 Gbps (5 GHz), 575 Mbps (2.4 GHz); Aggregate: 2.97 Gbps |
| Antenna Type | Built-in omni-directional antennas (H/V polarized) |
| Antenna Gain | 5 GHz: 4.5 dBi avg (5.8 dBi peak), 2.4 GHz: 3.0 dBi avg (4.4 dBi peak) |
| IoT Support | Bluetooth, 802.15.4/Zigbee |
| Power Options | IEEE 802.3bt PoE (Class 6), or direct AC (110–240V with optional kit) |
| Power Consumption | Max: 71W (AC), 49.5W (PoE); Idle: 9.2W (PoE), 10.8W (AC) |
| Environmental Ratings | IP66/IP67; Temp: -40°C to +65°C |
| Dimensions (H x W x D) | 32 x 32.4 x 31.3 cm |
| Weight | 5.24 kg |
| Certifications | Wi-Fi Alliance, Bluetooth SIG, CE, FCC, UL/IEC/EN 62368-1, TAA |
| Mounting | Optional mounting kits (sold separately) |
| Security | WPA3, Enhanced Open, TPM, Dynamic Segmentation, PEF |
| Warranty | Limited Lifetime Warranty |
