Description

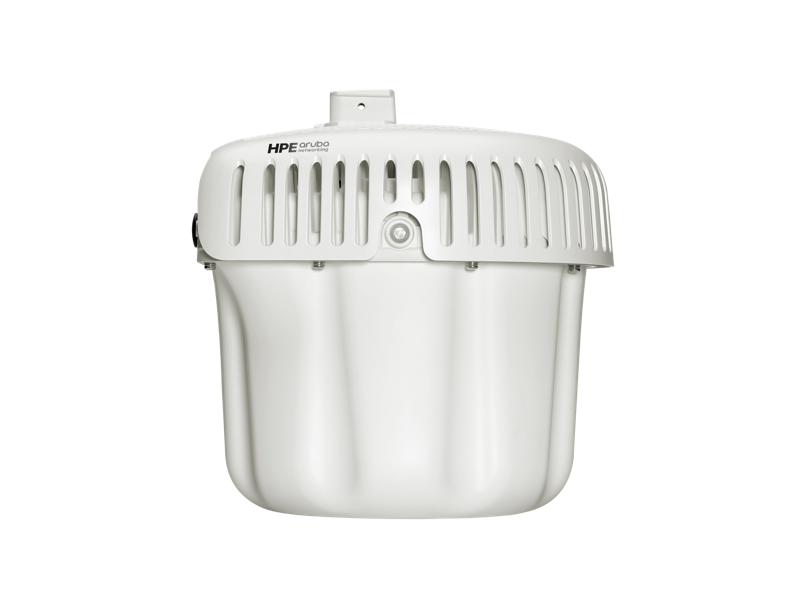

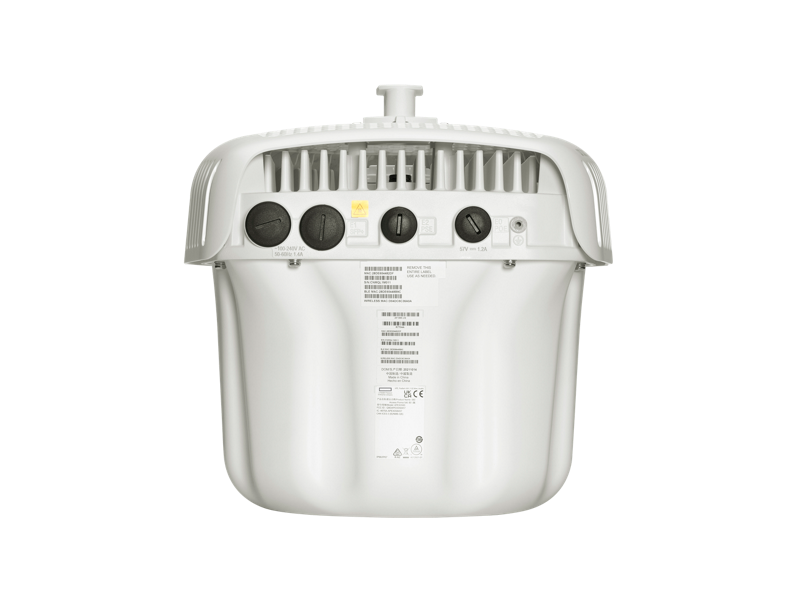

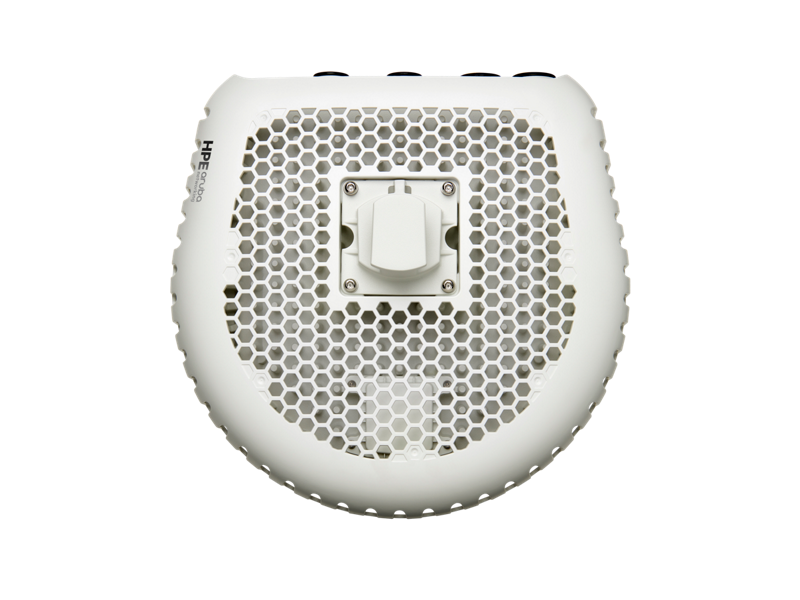

The HPE Aruba Networking AP‑585 (RW) is a ruggedized, high-performance Wi‑Fi 6 (802.11ax) access point purpose-built for harsh outdoor environments. Featuring internal omni-directional antennas and delivering an aggregate data rate of up to 2.97 Gbps, this access point is ideal for large outdoor deployments including industrial sites, campuses, and stadiums.
With IP66/67-rated weatherproofing, built-in Bluetooth and 802.15.4/Zigbee radios for IoT readiness, and flexible power and connectivity options (including 5GbE and AC power), the AP‑585 ensures reliability, security, and scalability. Backed by Aruba’s advanced network management and limited lifetime warranty, it's designed to deliver high-availability, secure, and intelligent wireless connectivity anywhere.
| Specification | Details |
|---|---|
| Product Number | R7T20A |
| Form Factor | Outdoor AP with integrated internal omni antennas |
| Wi-Fi Standard | Wi‑Fi 6 (IEEE 802.11ax) |
| Radios | Dual Radio: 5 GHz (4x4 MIMO), 2.4 GHz (2x2 MIMO) |
| Max Data Rate | 2.97 Gbps (4.8 Gbps @ 5 GHz + 575 Mbps @ 2.4 GHz) |
| Antenna Type | Internal Omni Antennas (5 GHz: 4.5 dBi avg, 5.8 dBi peak; 2.4 GHz: 3.0 dBi avg, 4.4 dBi peak) |
| IoT Support | High-power Bluetooth & 802.15.4/Zigbee radios |
| Enclosure Rating | IP66/67 certified |
| Operating Temperature | -40°C to +65°C |
| Power Options | 802.3bt PoE (Class 6), Direct AC (110–240V, optional kit) |
| Power Consumption | Up to 71W (AC); 49.5W (PoE Class 6) |

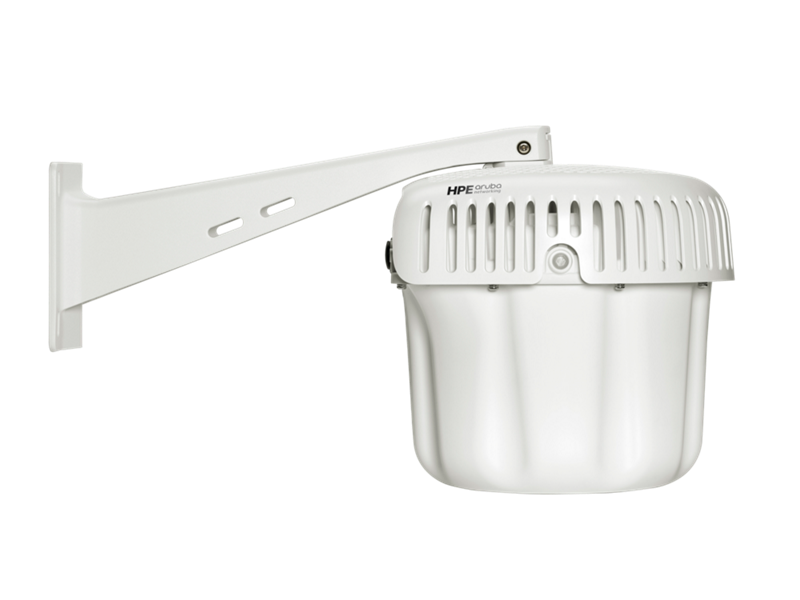

| Mounting | Optional mounting kits available |
| Security | WPA3, Policy Enforcement Firewall, TPM, Enhanced Open |
| Management | Aruba Central, Zero Touch Provisioning |
| Certifications | Wi-Fi Alliance, Bluetooth SIG, CE, FCC, UL, RED, and more |
| Dimensions (HxWxD) | 32 x 32.4 x 31.3 cm |
| Weight | 5.24 kg |
| Warranty | Limited lifetime warranty |
