Description

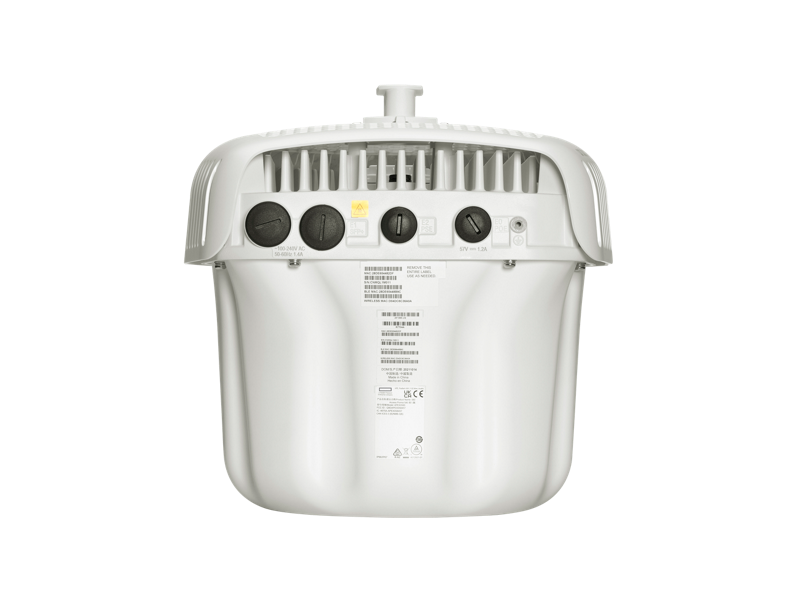

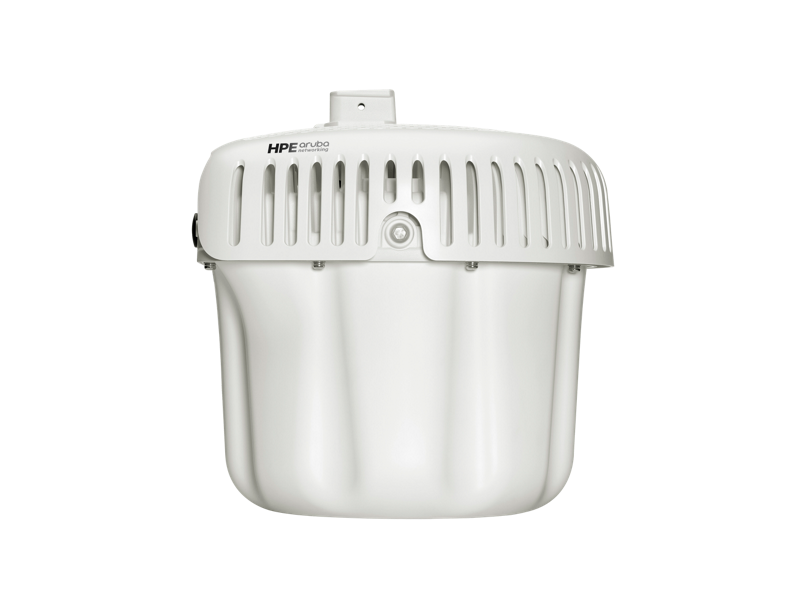

The HPE Aruba Networking AP-585EX (US) is a ruggedized, high-performance Wi-Fi 6 (802.11ax) access point engineered for hazardous locations including Class 1 Division 2 and ATEX Zone 2 environments. Designed to withstand extreme temperatures, moisture, and airborne contaminants, this IP66-rated access point delivers a maximum aggregate data rate of 2.97 Gbps, and includes high-power Bluetooth and Zigbee radios for robust Industrial IoT coverage.
With dual 4x4 MU-MIMO radios, support for 5Gbps Ethernet, 802.3bt Class 6 PoE or AC power, and AI-powered automation tools, the AP-585EX provides exceptional performance, security, and flexibility for outdoor and hazardous deployments. It features internal omnidirectional antennas and is built with Trusted Platform Module (TPM) security and Dynamic Segmentation for end-to-end encrypted traffic.
| Specification | Details |
|---|---|
| Product Number | R7T29A |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Radios | Dual Radio 4x4 MIMO (2.4GHz and 5GHz) |
| Max Aggregate Throughput | Up to 2.97 Gbps |
| Antenna Type | Internal Omni-directional (H and V polarized) |
| Bluetooth & Zigbee | High-power Bluetooth and 802.15.4/Zigbee radios |
| Certifications | Class 1 Div 2, ATEX Zone 2, Wi-Fi Alliance, FCC, CE, IECEx, UL, etc. |
| IP Rating | IP66 |
| Temperature Range | -40°C to +65°C (temperature hardened) |
| Power Options | 802.3bt PoE Class 6 (port E0), AC Power (110–240V) |

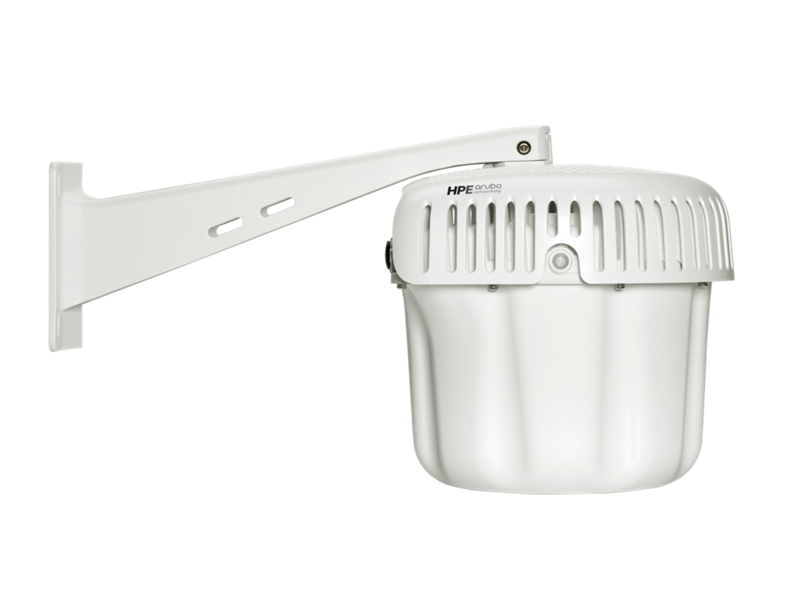

| Mounting | Optional mounting kits available |
| Security Features | WPA3, TPM, Enhanced Open, Policy Enforcement Firewall, Dynamic Segmentation |
| Power Consumption (Max) | Up to 71W (AC); up to 49.5W (PoE, Class 6) |
| Dimensions (HxWxD) | 32 x 32.4 x 31.3 cm |
| Weight | 5.24 kg |
| Warranty | Limited Lifetime Warranty |
