Description

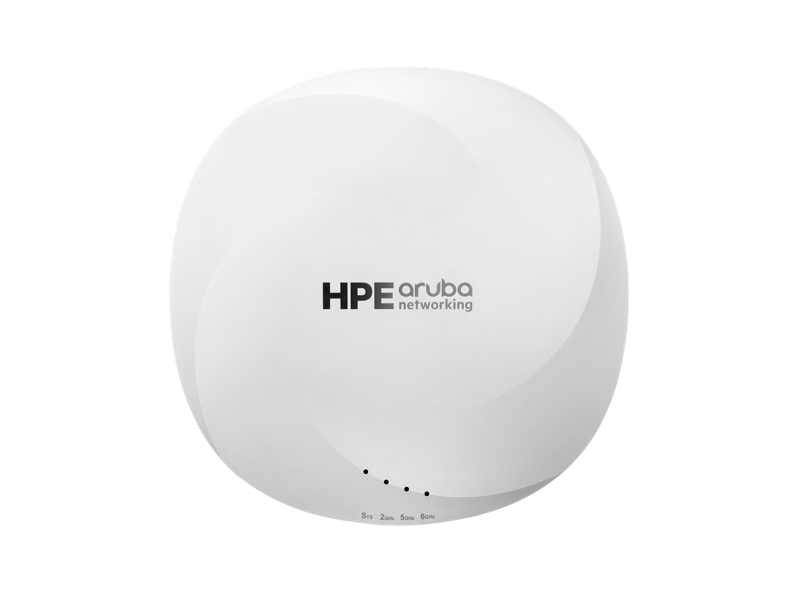

The HPE Aruba Networking AP‑615‑EG is a tri-band Wi-Fi 6E campus access point designed to meet the growing demands of high-density environments such as modern enterprises and educational institutions. With support for the 6 GHz band, the AP-615 unlocks up to 1200 MHz of additional spectrum, delivering blazing-fast throughput of up to 3.6 Gbps.
Equipped with dual radios that can be configured across any two of the three bands (2.4 GHz, 5 GHz, and 6 GHz), it offers flexible deployment options with optimized performance. This compact, energy-efficient unit features built-in omni-directional antennas, GPS for location-based services, and is TAA compliant. Ideal for indoor deployment, the AP-615‑EG includes a limited lifetime warranty and supports advanced HPE Aruba Networking features such as ClientMatch, Intelligent Power Monitoring, and Zero Touch Provisioning.
| Specification | Details |
|---|---|
| Product Number | R7J51A |
| Model | AP-615-EG |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Radio Configuration | Dual radio, Tri-band (2.4 GHz, 5 GHz, 6 GHz), 2x2 MIMO |
| Max Data Rate | Up to 3.6 Gbps |
| Antenna Type | Integrated downtilt omni antennas |
| Antenna Gain | 2.8 dBi (2.4 GHz), 4.5 dBi (5 GHz and 6 GHz) |
| Power Options | 802.3af (PoE Class 3), 12V DC input |
| Power Consumption | Max: 12.5W (DC), 14.7W (PoE) typical / up to 20.9W worst case |
| Ports | 1x RJ-45 Ethernet, USB 2.0, Serial Console, DC input |
| Additional Radios | BLE 5.0 and Zigbee (802.15.4) |
| Location Features | Built-in GPS and fine time measurement |
| Mounting | Integrated bracket (mount kits sold separately) |
| Certifications | Wi-Fi CERTIFIED 6E, UL2043, CE, FCC/ISED, RED, EMC, LVD, WPA3, etc. |
| Dimensions (W x D x H) | 5.1 x 20.1 x 18.3 cm |
| Weight | 0.72 kg |
| Environment | Indoor |
| Compliance | TAA Compliant (Egypt Only) |
| Warranty | Limited Lifetime Warranty |
