Description

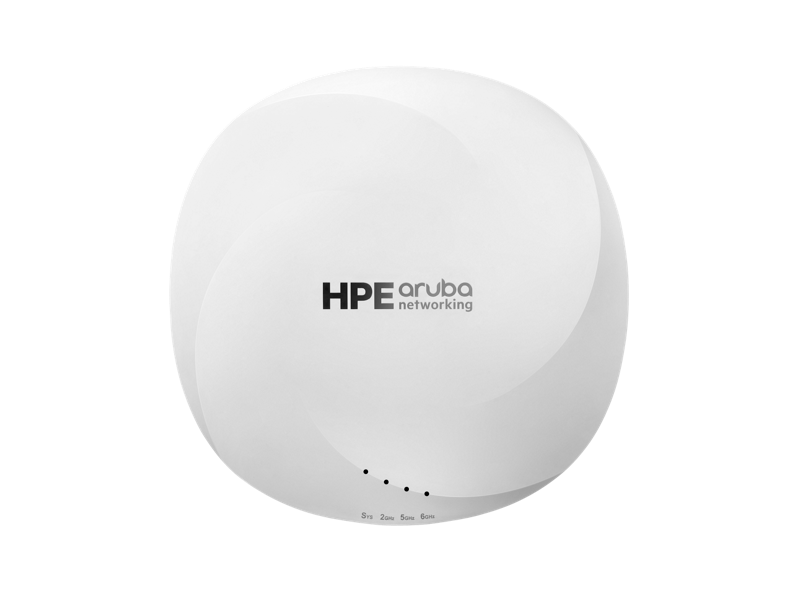

The HPE Aruba Networking AP-615-IL from the 610 Series is a compact, power-efficient Wi-Fi 6E indoor access point designed to deliver next-gen wireless connectivity across tri-band frequencies (2.4GHz, 5GHz, and 6GHz). Supporting a maximum combined data rate of up to 3.6 Gbps, this TAA-compliant model is ideal for campus networks requiring high capacity, low latency, and improved indoor location awareness.
Engineered with software-programmable dual radios, it offers full tri-band coverage in multi-AP environments, making it perfect for deployments in video-rich, IoT-heavy, and cloud-first scenarios. With integrated GPS and fine time measurements, APs can serve as location anchors for high-accuracy indoor positioning. The AP-615-IL supports PoE (Class 3) and offers flexible mounting with a pre-installed bracket.
| Specification | Details |
|---|---|
| Model Number | R7J52A |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Radios | Dual-radio, tri-band (2.4 GHz, 5 GHz, 6 GHz) |
| MIMO Configuration | 2x2 MIMO |
| Peak Data Rate | Up to 3.6 Gbps |
| Antenna Type | Integrated omni-directional antennas |
| Antenna Gain | 2.8 dBi (2.4 GHz), 4.5 dBi (5 GHz/6 GHz) |
| PoE Support | 802.3af Class 3 |
| Max Power Consumption | 14.7W (PoE), 12.5W (DC) |
| Mounting | Integrated mounting bracket; mount kits sold separately |
| Dimensions (W x D x H) | 20.1 x 18.3 x 5.1 cm |
| Weight | 0.72 kg |
| Ports | 1x RJ-45 Ethernet, DC power, USB 2.0, BLE 5.0, Zigbee, serial console |
| Location Services | Built-in GPS, fine time measurement, Open Locate support |
| Certifications | Wi-Fi CERTIFIED 6E, UL2043, CE, FCC/ISED, RED Directive, WPA3 |
| Warranty | Limited lifetime warranty |
