Description

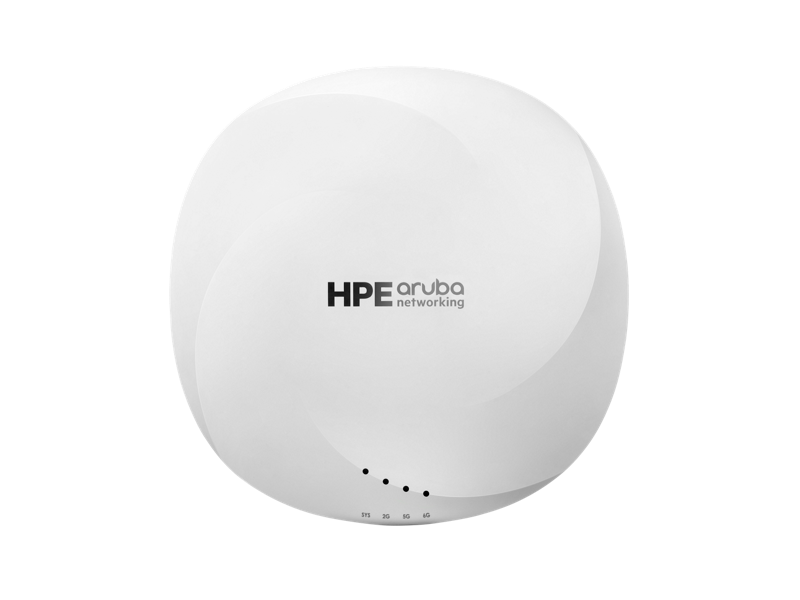

The HPE Aruba Networking AP-635 (JP) is a high-performance tri-radio Wi‑Fi 6E access point designed to deliver blazing-fast, low-latency connectivity across the 2.4 GHz, 5 GHz, and 6 GHz bands. With a maximum aggregate data rate of 3.9 Gbps and advanced filtering to reduce interference between bands, this access point enables seamless support for high-density environments and bandwidth-intensive applications such as video conferencing, AR/VR, and IoT.
Engineered for future-ready deployments, the AP-635 features dual Smart Rate Ethernet ports for hitless failover, integrated omni-directional antennas, and support for Bluetooth and Zigbee. Ideal for Japanese indoor enterprise settings, this model ensures optimal coverage, security, and performance.
| Specification | Details |
|---|---|
| Model Number | R7J26A |
| Region | Japan only |
| Wi‑Fi Standard | IEEE 802.11ax (Wi-Fi 6E) – 2.4GHz, 5GHz, 6GHz |
| Radio Configuration | Tri-Radio (2.4 GHz, 5 GHz, 6 GHz) – 2x2 MIMO per band |
| Max Data Rate | Up to 3.9 Gbps aggregate |
| Antennas | Integrated omni-directional antennas (2x2 per band) |
| Peak Antenna Gain | 2.9 dBi (2.4 GHz), 4.9 dBi (5 GHz), 4.3 dBi (6 GHz) |
| Power Input | 12V DC or 48V PoE (802.3af/at/bt, Class 3+) |
| Power Consumption | 23.8W (PoE), 20.7W (DC) |
| Ports | 2x Smart Rate Ethernet (100/1000/2500BASE-T) RJ-45 with hitless failover |
| Additional Radios | BLE 5.0 and Zigbee (802.15.4) |
| Mounting | Pre-installed bracket (mount kits sold separately) |
| Certifications | Wi-Fi 6E, WPA3, UL2043, Bluetooth SIG, Wi-Fi Alliance, Ethernet Alliance |
| Regulatory Compliance | FCC/ISED, CE, RED, EMC, LVD, UL/IEC 62368-1, EN60601 |
| Heat Dissipation | 66.3 BTU/hr (PoE), 57.9 BTU/hr (DC) |
| Dimensions (W x D x H) | 220 x 220 x 50 mm |
| Weight | 1300 g |
| Warranty | Limited lifetime warranty |
