Description

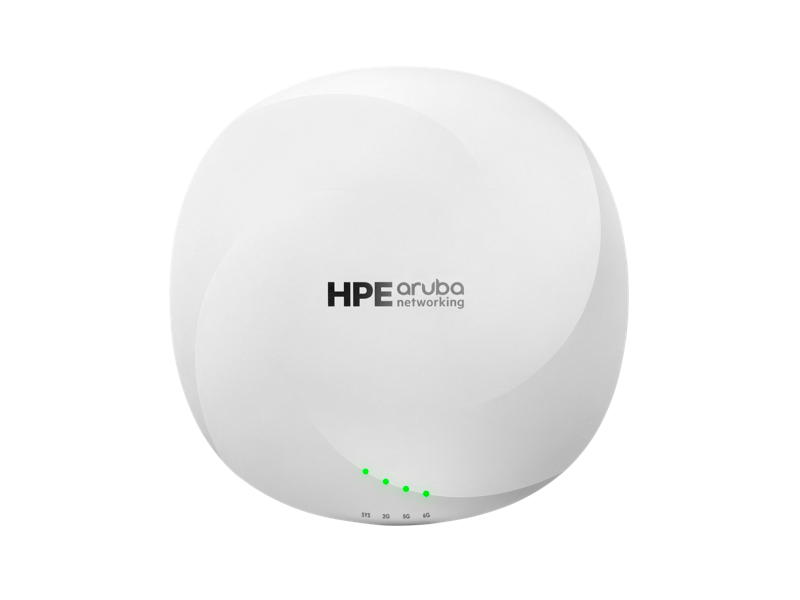

The HPE Aruba Networking AP-635 (RW) is a high-performance tri-radio access point engineered to bring the full benefits of Wi-Fi 6E to enterprise and campus networks. Supporting the new 6 GHz band with up to 1200 MHz of additional spectrum, it delivers faster speeds, wider channels, and reduced interference, making it ideal for bandwidth-intensive applications like HD video, VR/AR, and IoT.
Featuring internal omni-directional antennas, a compact plenum-rated design, and advanced filtering to mitigate cross-band interference, the AP-635 ensures optimal indoor coverage. High availability is ensured through dual Ethernet ports with hitless failover and PoE power redundancy. Built on the 802.11ax standard, this AP supports cloud, controller, or controllerless deployment for unmatched operational flexibility.
| Specification | Details |
|---|---|
| Product Number | R7J32A |
| Form Factor | Indoor, ceiling mount with internal antennas |
| Radios | Tri-radio (2.4 GHz, 5 GHz, 6 GHz) concurrent operation |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6E) |
| MIMO Configuration | 2x2 MIMO per band |
| Max Data Rate | 3.9 Gbps aggregate |
| Antenna Type | Integrated omni-directional (4.6 dBi @2.4GHz, 7.0 dBi @5GHz, 6.3 dBi @6GHz) |
| Ethernet Ports | 2x RJ-45 100/1000/2500BASE-T Smart Rate (PoE+) |
| PoE Support | 802.3af/at/bt compliant (Class 3 or higher) |
| Power Input | 12V DC or 48V PoE |
| Power Consumption | 23.8W (PoE), 20.7W (DC) |
| Heat Dissipation | 66.3 BTU/hr (PoE), 57.9 BTU/hr (DC) |

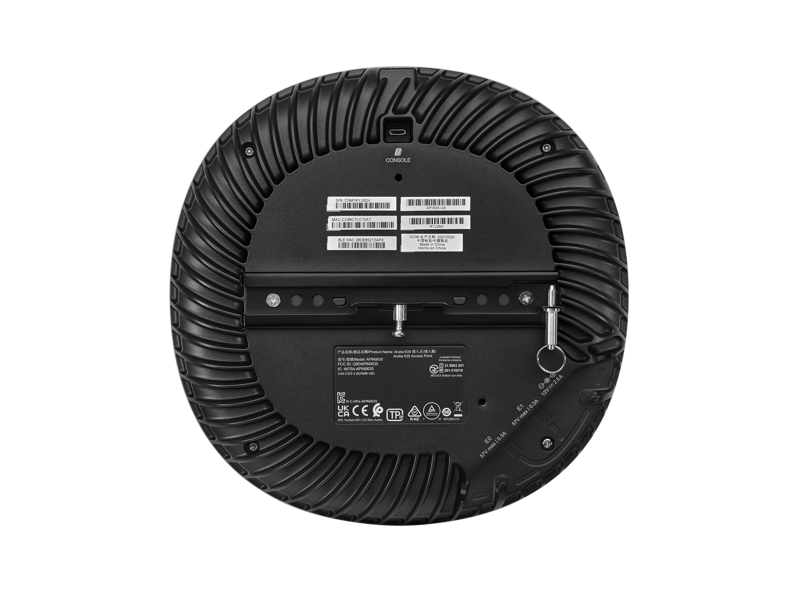

| Mounting | Integrated bracket for Aruba mounting kits (sold separately) |
| Bluetooth/Zigbee | BLE 5.0 and 802.15.4 support |
| Certifications | UL2043, Wi-Fi CERTIFIED 6E, WPA3, Passpoint, Plenum-rated |
| Regulatory Compliance | CE, FCC/ISED, RED, EMC, Low Voltage Directives, IEC/EN 62368-1 |
| Product Dimensions (W x D x H) | 220mm x 220mm x 50mm |
| Weight | 1.3 kg (2.87 lbs) |
| Warranty | Limited Lifetime Warranty |
