Description

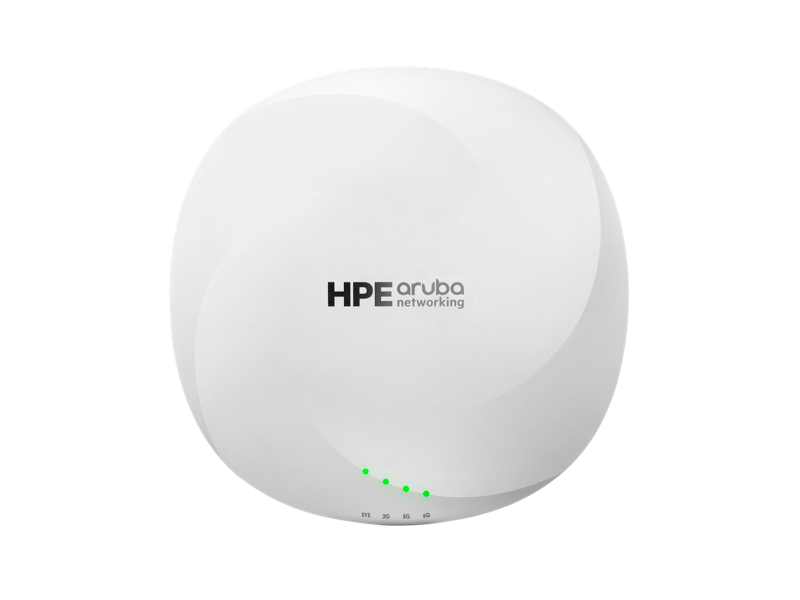

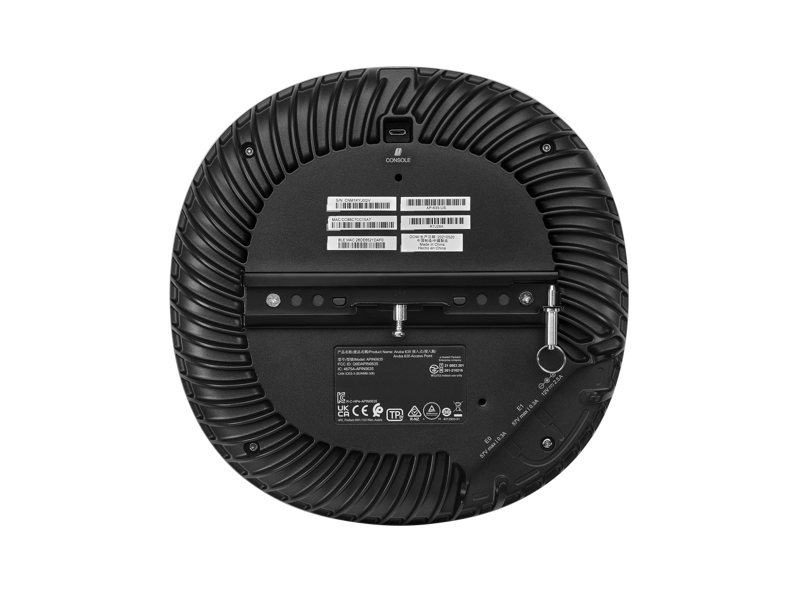

The HPE Aruba Networking AP‑635 (JP) is a tri-radio, Wi‑Fi 6E-enabled campus access point engineered for high-performance indoor environments. Designed for Japan and TAA-compliant, this access point delivers next-generation wireless performance using the 6 GHz band alongside 2.4 GHz and 5 GHz. With an aggregate data rate of up to 3.9 Gbps and seven 160 MHz channels, the AP‑635 ensures ultra-low latency, reliable coverage, and optimal performance for bandwidth-intensive applications such as AR/VR, high-def video, and IoT.
The AP features advanced filtering to eliminate interference between bands and dual Smart Rate Ethernet ports for seamless hitless failover. Supporting advanced features like ClientMatch, Intelligent Power Monitoring, BLE/Zigbee IoT radios, and secure WPA3, the AP‑635 ensures reliable and secure wireless connectivity for demanding campus and enterprise networks.
| Specification | Details |
|---|---|
| Product Number | R7J31A |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax) – 2.4GHz, 5GHz, 6GHz concurrent tri-radio |
| MIMO Configuration | 2x2 for each band |
| Max Data Rate | Up to 3.9 Gbps |
| Antennas | Integrated dual-band omni antennas; 4.6 dBi (2.4GHz), 7.0 dBi (5GHz), 6.3 dBi (6GHz) |
| Ethernet Ports | 2x RJ-45 Smart Rate (100/1000/2500BASE‑T), PoE-PD (Class 3+) |
| Power Input | 48V DC PoE (802.3af/at/bt) or 12V DC input |
| Power Consumption | Max 23.8W (PoE), 20.7W (DC), excl. USB device power draw |
| Heat Dissipation | 66.3 BTU/hr (PoE), 57.9 BTU/hr (DC) |
| Mounting | Pre-installed bracket (mount kits sold separately) |
| Indoor Rating | Plenum-rated (UL2043), ceiling-mount optimized |
| Security & Certifications | WPA3, WPA2, WPA, Enhanced Open; Wi-Fi Certified 6E; TAA Compliant |
| IoT Support | Bluetooth 5.0 (BLE) and Zigbee (802.15.4) |
| Dimensions (WxDxH) | 220 mm x 220 mm x 50 mm |
| Weight | 1.3 kg |
| Warranty | Limited Lifetime Warranty |
