Description
Tri-Radio Wi-Fi 6E for High-Density Campus Networks

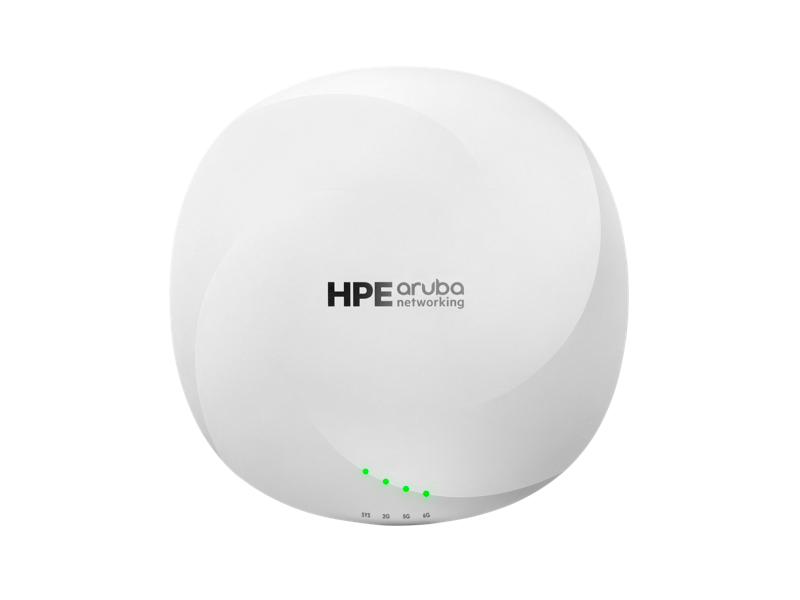

The HPE Aruba Networking AP-635 (EG) is a high-performance tri-radio access point purpose-built for campus environments demanding next-gen connectivity. Featuring Wi-Fi 6E (802.11ax) support, this AP operates concurrently on the 2.4 GHz, 5 GHz, and the newly opened 6 GHz bands—delivering blazing speeds up to 3.9 Gbps, wider 160 MHz channels, and significantly reduced interference.
Engineered for low-power indoor deployments, the AP-635 integrates advanced features such as ultra tri-band filtering, ClientMatch, Advanced Cellular Coexistence, and intelligent power monitoring. It ensures seamless roaming and application performance for latency-sensitive services like AR/VR and HD video.
Redundant dual Ethernet ports with Smart Rate (1/2.5 Gbps) and PoE provide hitless failover for maximum uptime. With support for Bluetooth 5.0, Zigbee, TAA compliance, and robust security protocols including WPA3, it’s future-ready for scalable enterprise deployments.
| Specification | Details |
|---|---|
| Product SKU | R7J29A |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax), Tri-radio: 2.4GHz, 5GHz, 6GHz |
| MIMO Configuration | 2x2 MIMO per band |
| Max Data Rate | 3.9 Gbps aggregate |
| Antennas | 2x internal omni-directional, 4.6 dBi (2.4GHz), 7.0 dBi (5GHz), 6.3 dBi (6GHz) |
| Ports | 2x RJ-45 Smart Rate Ethernet (100/1000/2500BASE-T), PoE (802.3af/at/bt) |

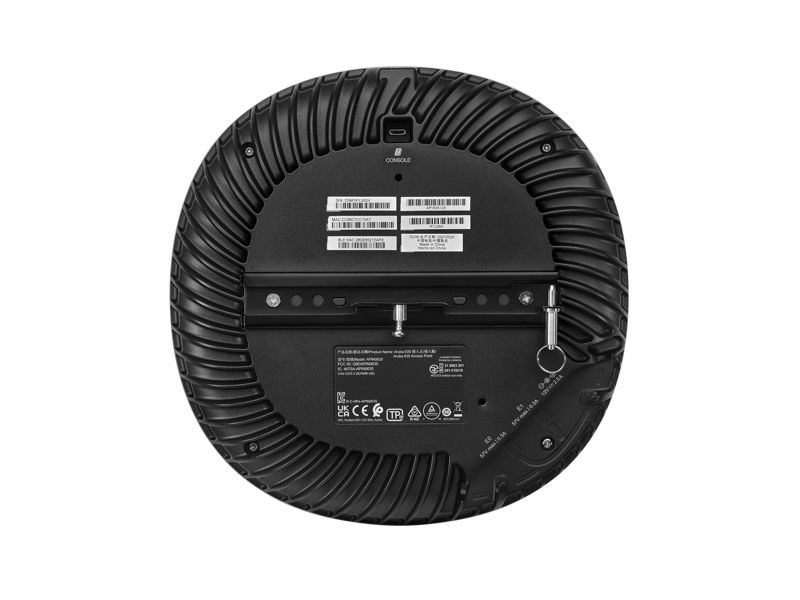

| Mounting | Ceiling (bracket pre-installed, kits sold separately) |
| Input Voltage | 12V DC or 48V PoE |
| Power Consumption | Max 23.8W (PoE), Max 20.7W (DC) |
| Heat Dissipation | 66.3 BTU/hr (PoE), 57.9 BTU/hr (DC) |
| Bluetooth / IoT | Bluetooth 5.0, Zigbee (802.15.4) |
| Security Standards | WPA/WPA2/WPA3-Enterprise, OWE, CNSA, Wi-Fi Certified 6E |
| Compliance | TAA compliant, UL2043, FCC/ISED, CE, RED, EMC, Low Voltage Directives |
| Environment | Indoor (Low Power Indoor use) |
| Dimensions | 220mm (W) x 220mm (D) x 50mm (H) |
| Weight | 1300g (2.87 lbs) |
| Warranty | Limited Lifetime Warranty |
