Description

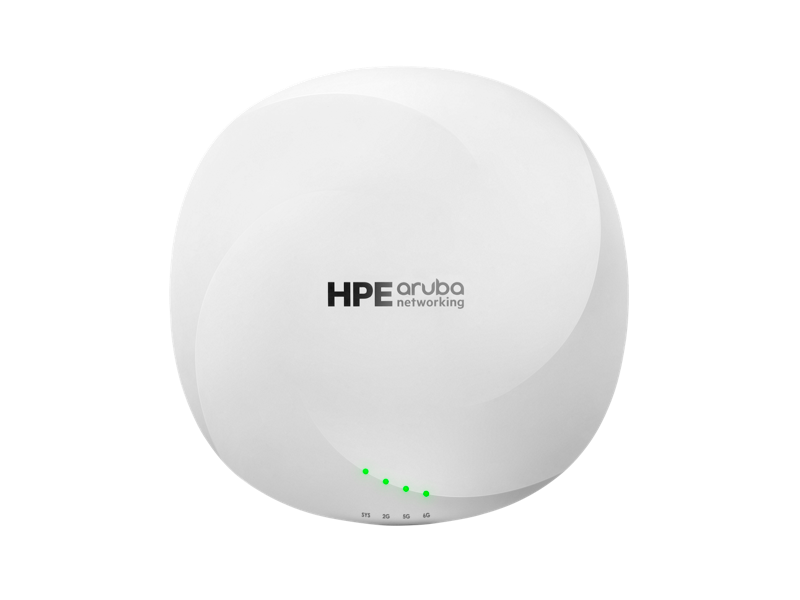

The HPE Aruba Networking AP-635 (R7J30A) is a tri-radio, Wi-Fi 6E enabled campus access point purpose-built to unlock the potential of the 6 GHz band. Designed with internal omni-directional antennas, this TAA-compliant access point delivers up to 3.9 Gbps aggregate throughput using concurrent 2.4 GHz, 5 GHz, and 6 GHz bands, making it ideal for high-density, bandwidth-intensive environments like enterprise campuses and education facilities.
With unique tri-band filtering to reduce cross-band interference, automated country-specific 6 GHz regulatory updates, and dual Smart Rate Ethernet ports for hitless failover, the AP-635 ensures maximum performance, resiliency, and seamless connectivity for future-ready wireless infrastructure.
| Specification | Details |
|---|---|
| Product Number | R7J30A |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax); Tri-Radio 2x2 MIMO (2.4GHz, 5GHz, 6GHz) |
| Max Aggregate Throughput | Up to 3.9 Gbps |
| Antenna Type | Internal downtilt omni-directional (2x2 MIMO) |
| Antenna Gain | 4.6 dBi (2.4GHz), 7.0 dBi (5GHz), 6.3 dBi (6GHz) |
| BLE & IoT Radios | Bluetooth Low Energy (BLE) 5.0, Zigbee (802.15.4) |
| Ports | 2x RJ-45 Ethernet (100/1000/2500BASE-T, NBase-T, PoE+) |
| Power Input | 12V DC or 48V DC (PoE: 802.3af/at/bt Class 3+) |
| Power Consumption | 23.8W (PoE), 20.7W (DC) |
| Heat Dissipation | 66.3 BTU/hr (PoE), 57.9 BTU/hr (DC) |
| Mounting | Pre-installed bracket; compatible with Aruba mounting kits (sold separately) |
| Certifications | Wi-Fi CERTIFIED 6E, WPA3, TAA Compliant, UL2043, FCC, CE, etc. |
| Dimensions (W x D x H) | 220 x 220 x 50 mm |
| Weight | 1300g |
| Warranty | Limited Lifetime |
