Description

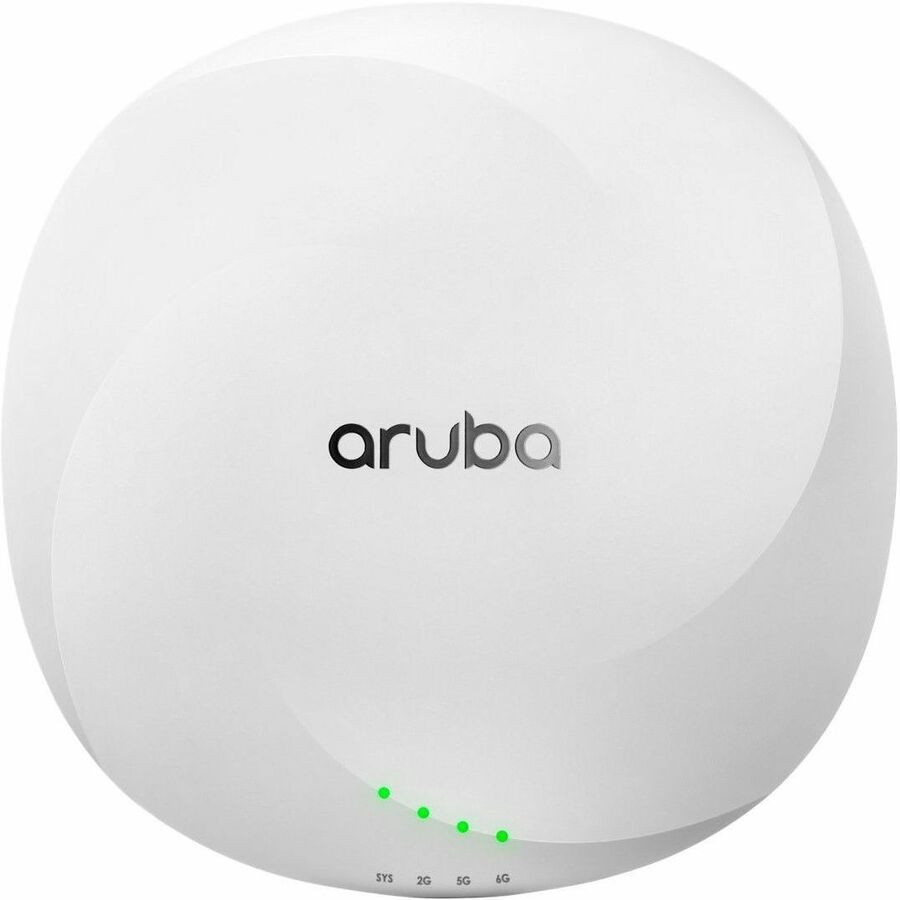

Upgrade your network with the HPE Aruba Networking AP-635 (S3J36A) – a 5-pack of high-performance, tri-radio Wi-Fi 6E indoor access points. Designed for campus environments, these access points unlock up to 1200 MHz of new 6 GHz spectrum, enabling ultra-fast wireless speeds, low-latency performance, and minimal interference. Each AP supports tri-band operation (2.4 GHz, 5 GHz, and 6 GHz) with 2x2 MIMO and built-in directional antennas, making them ideal for high-density, high-performance use cases like HD video, AR/VR, and IoT.
Advanced filtering technology mitigates interference between bands while HPE Aruba features such as ClientMatch, Advanced Cellular Coexistence, and Intelligent Power Monitoring ensure a seamless user experience. With support for hitless failover, Smart Rate Ethernet, and flexible deployment modes, the AP-635 provides a future-ready wireless foundation for your growing enterprise.
| Specification | Details |
|---|---|
| Product Number | S3J36A |
| Pack Size | 5 units |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax), Tri-band (2.4 GHz, 5 GHz, 6 GHz) |
| Radio Configuration | Tri Radio, 2x2 MIMO per band |
| Max Aggregate Throughput | Up to 3.9 Gbps |
| Antenna Type | Integrated omni-directional antennas |
| Antenna Gain | 2.9 dBi (2.4 GHz), 4.9 dBi (5 GHz), 4.3 dBi (6 GHz) |

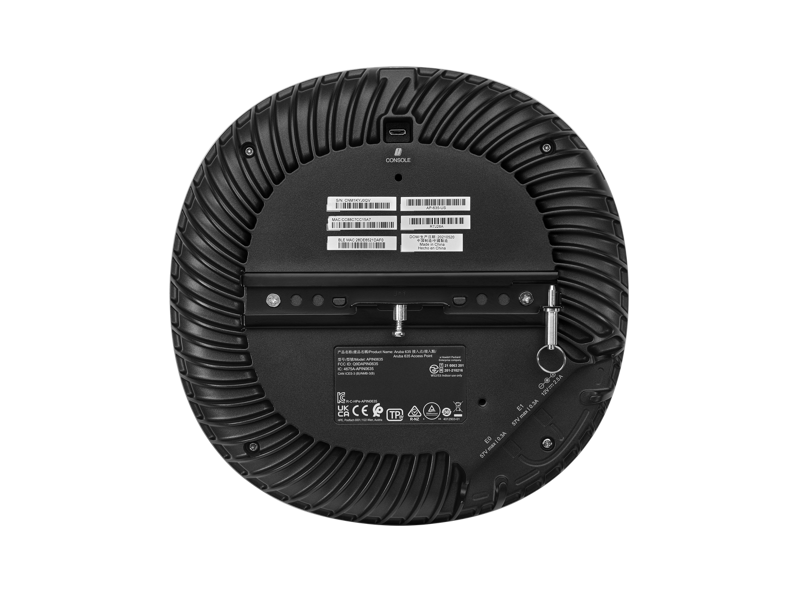

| Mounting | Optimized for horizontal ceiling mount |
| Ports | 2x Smart Rate Ethernet (1/2.5G), 1x USB 2.0 Type-A |
| Power Options | 12V DC or 48V PoE (Class 5) |
| Power Consumption | 23.8W (PoE), 20.7W (DC), excludes up to 5W USB load |
| Heat Dissipation | 66.3 BTU/hr (PoE), 57.9 BTU/hr (DC) |
| Security & Compliance | WPA3, WPA2, WPA, Enhanced Open (OWE), UL2043, FCC, CE, etc. |
| Bluetooth/Zigbee Support | BLE 5.0 and Zigbee (802.15.4) |
| Dimensions (W x D x H) | 220 mm x 220 mm x 50 mm |
| Weight | 1300 g per AP |
| Warranty | Limited Lifetime Warranty |
| Certifications | Wi-Fi Alliance, Bluetooth SIG, Ethernet Alliance |
| Deployment Modes | Controller-managed, Controllerless (Instant), and Cloud-managed |
