Description

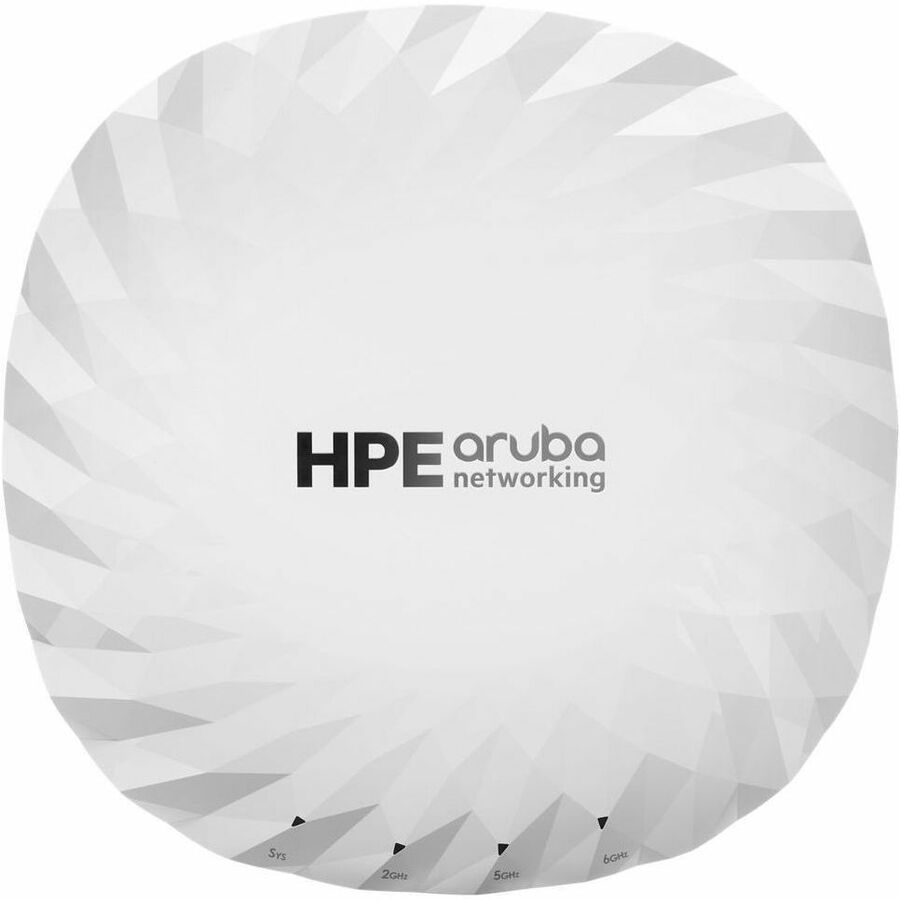

Deliver next-generation wireless connectivity with the HPE Aruba Networking AP-735 (IL), a powerful tri-radio 2x2 Wi-Fi 7 access point engineered for dense, high-performance enterprise environments. Supporting tri-band operation (2.4GHz, 5GHz, and 6GHz) and peak data rates up to 9.3 Gbps, the AP-735 is ideal for education, healthcare, retail, and industrial IoT deployments.
Featuring patented Ultra Tri-Band (UTB) filtering, built-in IoT radios (Bluetooth 5.4 and Zigbee), dual 5GbE Smart Rate ports, MACsec, and a GNSS receiver, it delivers reliable, secure, and location-aware wireless performance. AI-powered power-saving, enhanced policy enforcement, and robust security protocols such as WPA3 and TPM elevate both efficiency and protection. Designed for ceiling mount with internal antennas, this Israeli-region model (S1G40A) is ready for next-gen campus networking.
| Specification | Details |
|---|---|
| SKU / Part Number | S1G40A |
| Model | HPE Aruba Networking AP-735 (IL) |
| Radio Configuration | Tri-Radio 2x2 MIMO (2.4GHz, 5GHz, 6GHz) |
| Wi-Fi Standard | IEEE 802.11be (Wi-Fi 7) |
| Maximum Data Rate | Up to 9.3 Gbps aggregate (tri-band) |
| Antenna Type | Integrated down-tilt omni antennas (5.1 dBi @ 2.4GHz, 5.5 dBi @ 5GHz, 5.3 dBi @ 6GHz) |
| Ports | 2x Smart Rate RJ-45 (1/2.5/5GbE), 2x USB 2.0 (Type-A), Console (micro-B USB) |
| IoT Support | 2x Bluetooth 5.4 & Zigbee radios, GNSS, barometric sensor, 2x USB extensions |
| Power Options | 48V PoE (802.3at/bt), or 12VDC via circular plug |
| Power Consumption | Max: 24W (PoE), 20W (DC); With USB: 36W (PoE), 31W (DC); Idle: 8W–12W |
| Security | WPA3, Enhanced Open, MACsec (5GbE), PEF, TPM module |
| Location Services | GNSS, 802.11az (FTM), barometric pressure sensor |

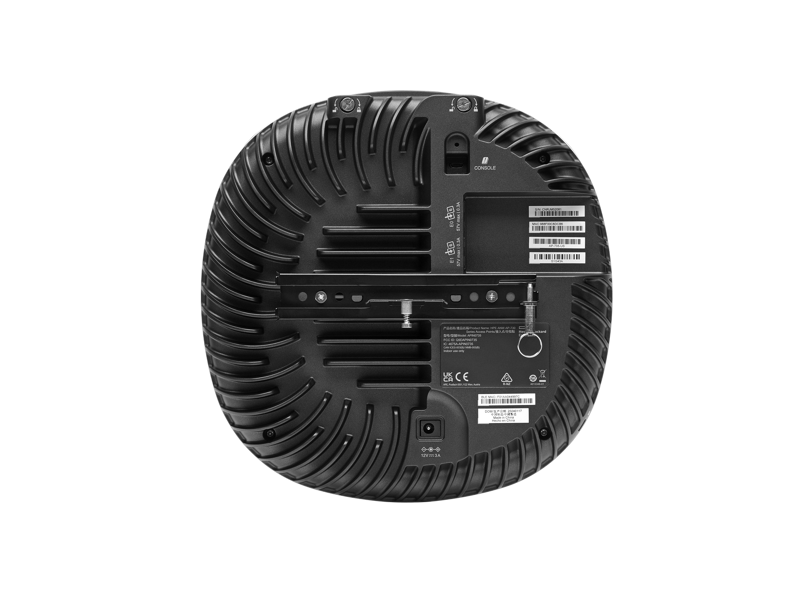

| Mounting | Integrated bracket (mount kits sold separately) |
| Form Factor | Indoor ceiling-mount |
| Warranty | Limited Lifetime Warranty |
