Description

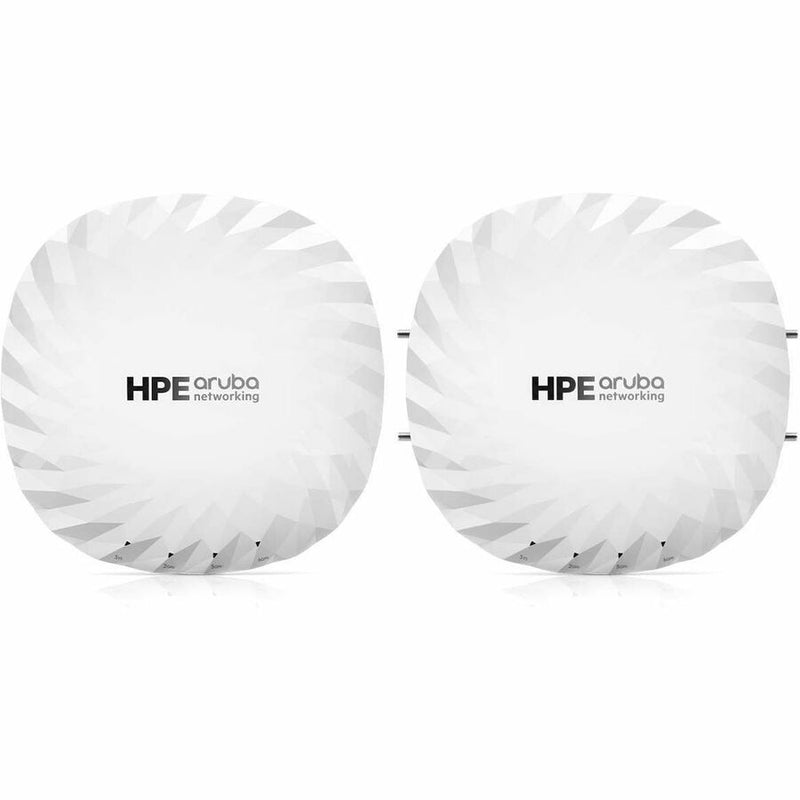

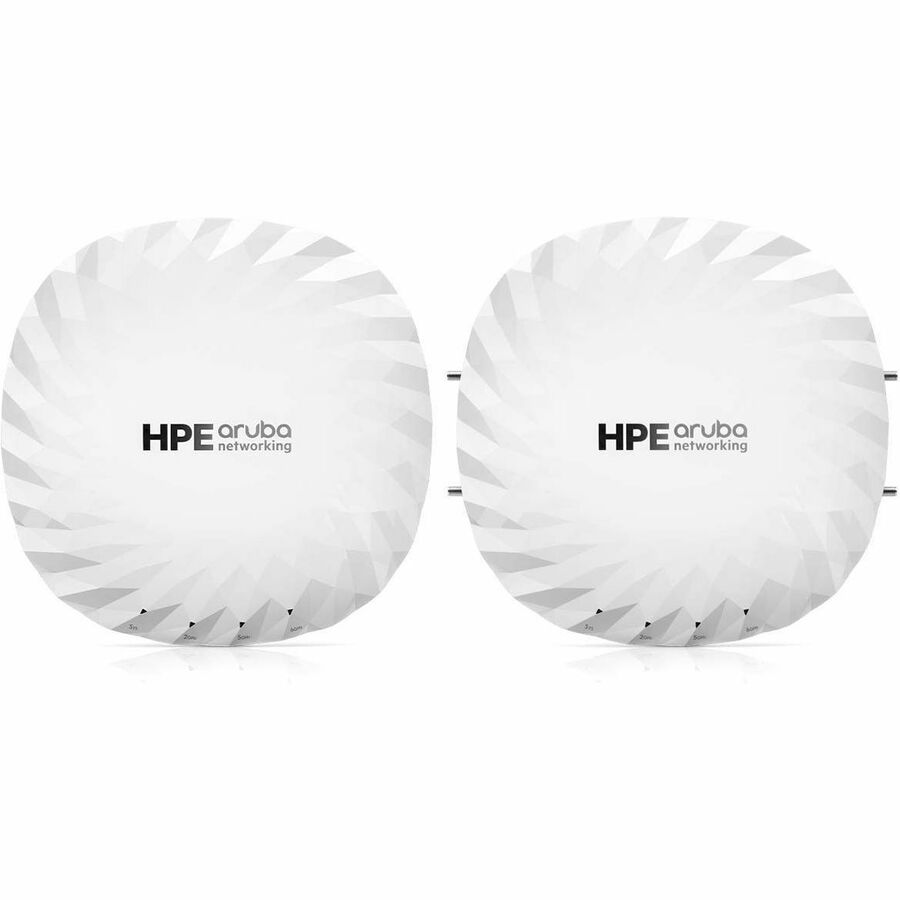

The HPE Aruba Networking AP-735 (JP) is a high-performance, tri-radio access point built for Wi‑Fi 7 networks in demanding environments like campuses, retail, healthcare, and industrial IoT. Featuring Ultra Tri-Band (UTB) filtering and advanced 2x2 MIMO radios across 2.4, 5, and 6 GHz bands, this access point delivers a blazing-fast 9.3 Gbps aggregate throughput. With dual 5 Gbps Smart Rate Ethernet ports, integrated GNSS, barometric sensors, and support for Bluetooth 5.4 and Zigbee, it offers unparalleled connectivity, high-accuracy indoor location, and IoT expansion capabilities. Managed through HPE Aruba Networking Central, it enables AI-powered insights and secure, dynamic segmentation for enterprise-grade protection.
| Specification | Details |
|---|---|
| Product Number | S1G41A |
| Wi‑Fi Standard | Wi-Fi 7 (IEEE 802.11be) |
| Radio Configuration | Tri radio: 2.4 GHz, 5 GHz, 6 GHz – concurrent 2x2 MIMO |
| Max Aggregate Throughput | Up to 9.3 Gbps |
| Antenna Type | Integrated omni-directional, down-tilt (peak gain: 5.1 dBi – 5.5 dBi) |
| Ethernet Ports | 2x 5 Gbps Smart Rate (RJ‑45) with MACsec, hitless failover |
| USB Ports | 2x USB 2.0 Type-A host interfaces |
| IoT Radios | Dual Bluetooth 5.4 and 802.15.4 radios (Zigbee support) |
| Security Features | WPA3, Enhanced Open, TPM, Dynamic Segmentation, PEF |
| Sensors | GNSS receiver, barometric pressure sensor, intelligent location support |
| Input Power | PoE: 48V 802.3at/bt (Class 4+); DC: 12 VDC (2.1mm/5.5mm plug) |
| Max Power Consumption | DC: 20W/31W (idle/peak); PoE: 24W/36W (idle/peak with USB) |
| Mounting | Integrated bracket (mounting kits sold separately) |
| Certifications | Wi-Fi 7 certified, UL2043, Bluetooth SIG, PoE Class 5, CE, FCC/ISED |
| Environment | Indoor use only |
| Warranty | Limited lifetime warranty |
