Description

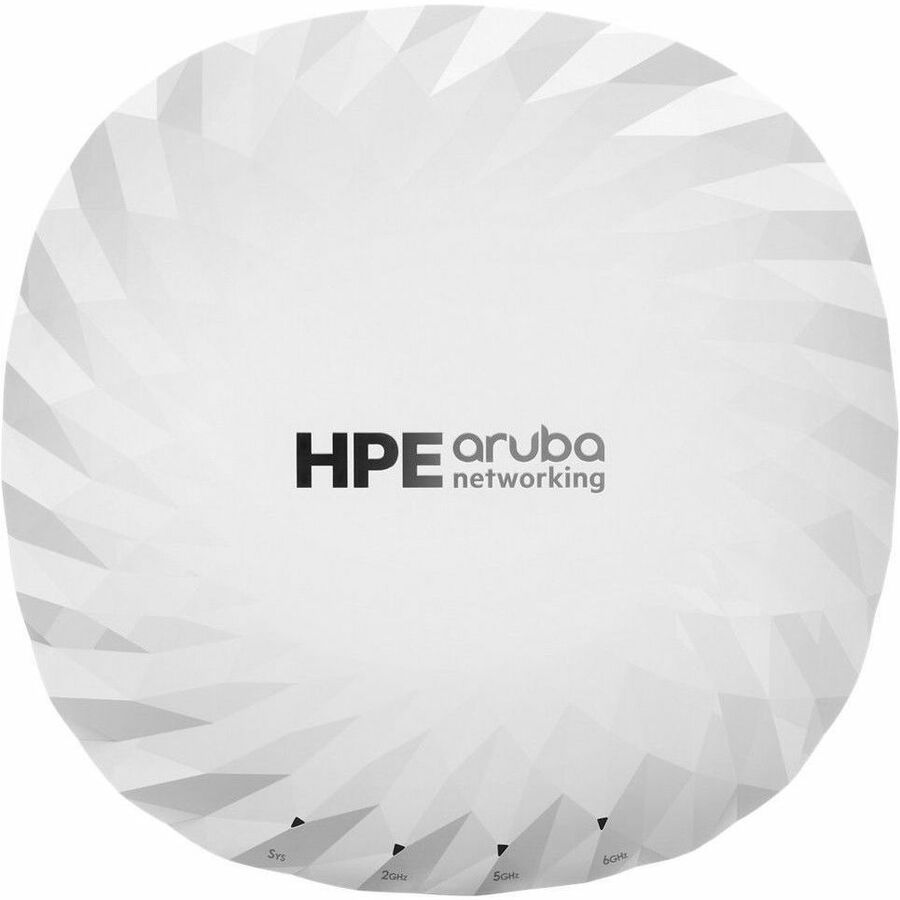

Experience unmatched Wi-Fi performance with the HPE Aruba Networking AP-735, a tri-radio Wi‑Fi 7 access point built for high-density, high-demand environments like campuses, retail, healthcare, and industrial IoT deployments. The AP-735 delivers up to 9.3 Gbps maximum tri-band throughput across the 2.4 GHz, 5 GHz, and 6 GHz bands, backed by patented Ultra Tri-band (UTB) filtering to optimize coverage and eliminate interference.
With integrated Bluetooth 5.4, Zigbee radios, dual USB ports, and built-in GNSS/barometric sensors, this access point is a versatile IoT platform that ensures precise indoor location tracking and extended device compatibility. Dual 5 Gbps Ethernet ports offer resilient high-speed connectivity with MACsec security support. Combined with HPE Aruba Networking Central for AI-driven management and Dynamic Segmentation for simplified security, the AP-735 empowers modern enterprises with scalable, secure, and sustainable wireless networking.
| Specification | Details |
|---|---|
| Product Number | S1G42A |
| Wi-Fi Standard | IEEE 802.11be (Wi-Fi 7), tri-band (2.4GHz, 5GHz, 6GHz) |
| Radio Configuration | 3x 2x2 MIMO radios, up to 9.3 Gbps total; up to 14.4 Gbps (optional config) |
| Antenna Type | Internal down-tilt omni-directional, optimized for ceiling mount |
| Peak Antenna Gain | 5.1 dBi (2.4 GHz), 5.5 dBi (5 GHz), 5.3 dBi (6 GHz) |
| Ethernet Ports | 2x Smart Rate Ethernet (RJ-45), 1/2.5/5 Gbps, MACsec-capable |
| USB Ports | 2x USB 2.0 (Type-A) |
| Console Port | Micro-B USB |
| IoT Radios | 2x Bluetooth 5.4 and 802.15.4 (Zigbee) |
| Location Services | GNSS receiver, barometric pressure sensor, 802.11az FTM |
| Mounting | Integrated bracket, optional kits sold separately |
| Input Power | 48Vdc via PoE (802.3at/bt Class 4+), or 12Vdc DC-in |
| Power Consumption (max) | 20W/31W (DC); 24W/36W (PoE); Idle: 8W–24W; Deep-sleep: 1.5W–2W |
| Security Features | WPA3, Enhanced Open, MACsec, TPM, PEF, Dynamic Segmentation |
| Certifications | Wi-Fi CERTIFIED a/b/g/n/ac/6/7; Bluetooth SIG; UL2043; CE; FCC/ISED |
| Warranty | Limited Lifetime Warranty |
| Environment | Indoor |
