Description

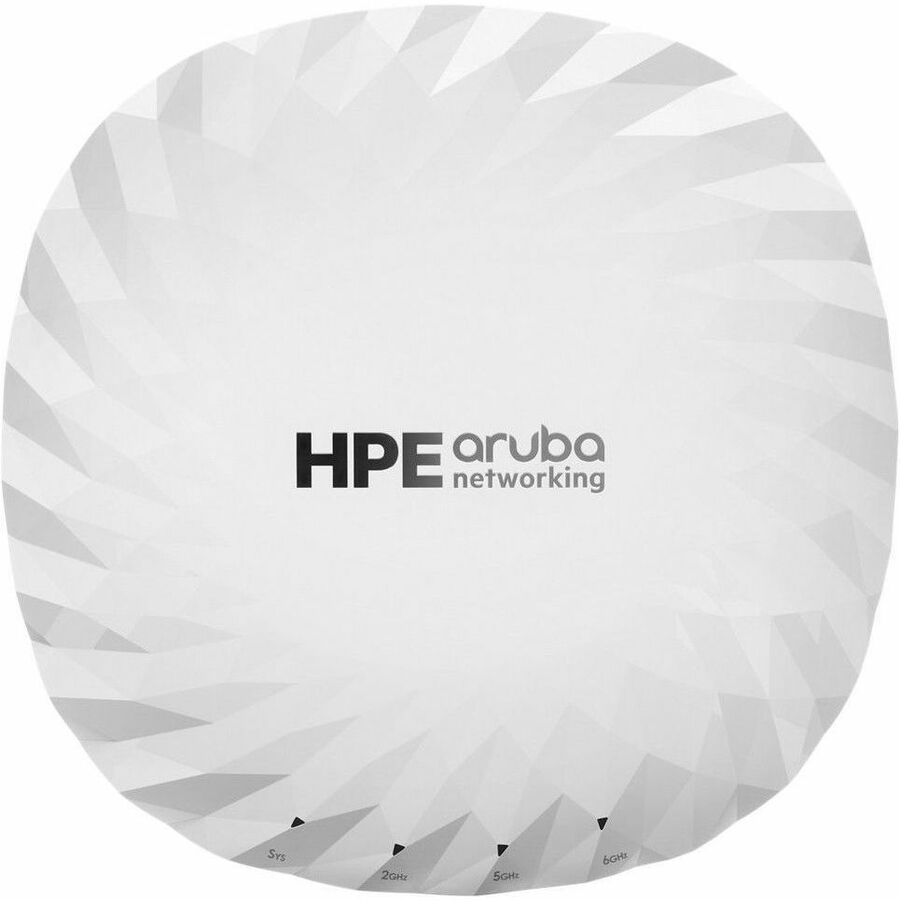

The HPE Aruba Networking AP-735 (S1G43A) is a next-generation indoor access point engineered for Wi-Fi 7 and high-density environments such as enterprises, education, retail, and IoT deployments. With tri-radio 2x2 MIMO support across 2.4 GHz, 5 GHz, and 6 GHz bands, this access point delivers blazing speeds up to 9.3 Gbps and leverages patented Ultra Tri-Band (UTB) filtering for optimal spectrum utilization. Dual 5GbE ports provide high availability and seamless failover.
Featuring built-in Bluetooth 5.4 and Zigbee radios, USB ports for IoT expansion, GNSS receiver, and barometric sensor, the AP-735 supports accurate indoor location services. Integrated with Aruba Central for AI-powered management, and secured with MACsec, WPA3, TPM, and Dynamic Segmentation, the AP-735 combines performance, scalability, and zero-trust security for modern campus networks.
| Specification | Details |
|---|---|
| Model Number | S1G43A |
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11be) |
| Radio Configuration | Tri-radio, 2x2 MIMO for 2.4 GHz, 5 GHz, and 6 GHz |
| Max Data Rate | Up to 9.3 Gbps tri-band aggregate |
| Antenna Type | Internal, down-tilt omni-directional (5.1dBi–5.5dBi gain) |
| Ports | 2x Smart Rate 1/2.5/5GbE (RJ-45), 2x USB 2.0 Type-A, Console (micro-USB) |
| Mounting Options | Integrated bracket; optional kits available |
| Security Features | WPA3, MACsec, TPM, Enhanced Open, Dynamic Segmentation, PEF firewall |
| IoT Support | 2x Bluetooth 5.4 & Zigbee radios, 2x USB, AIC filtering |
| Location Services | Built-in GNSS, barometric sensor, FTM (802.11az) for <1m accuracy |
| Power Options | 802.3at/bt PoE (Class 4+), 12V DC jack |
| Max Power Consumption | DC: 20W/31W; PoE: 24W/36W (with USB devices) |
| Idle/Deep Sleep Power | DC: 8W/1.5W; PoE: 12W/2.0W |
| Certifications | Wi-Fi Alliance, UL2043, Bluetooth SIG, FCC/ISED, CE, EMC, RED |
| Deployment Environment | Indoor ceiling mount |
| Warranty | Limited lifetime warranty |
