Description

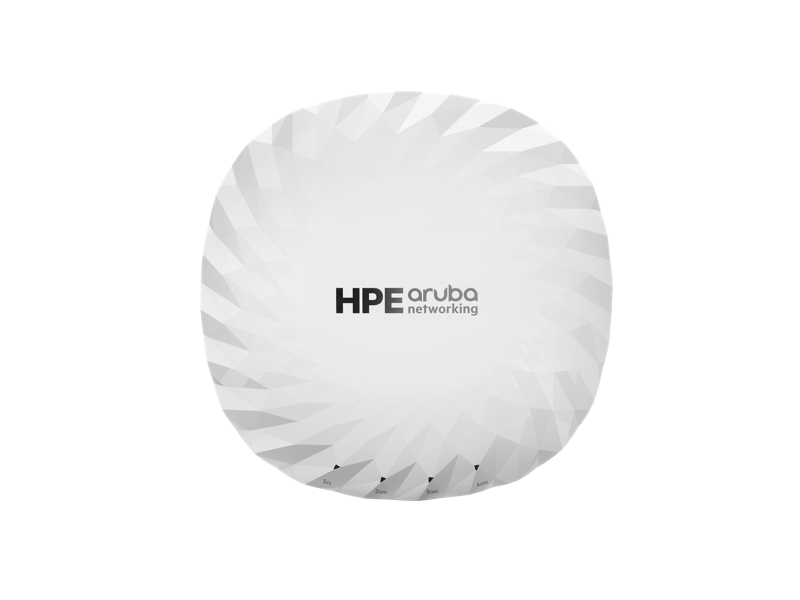

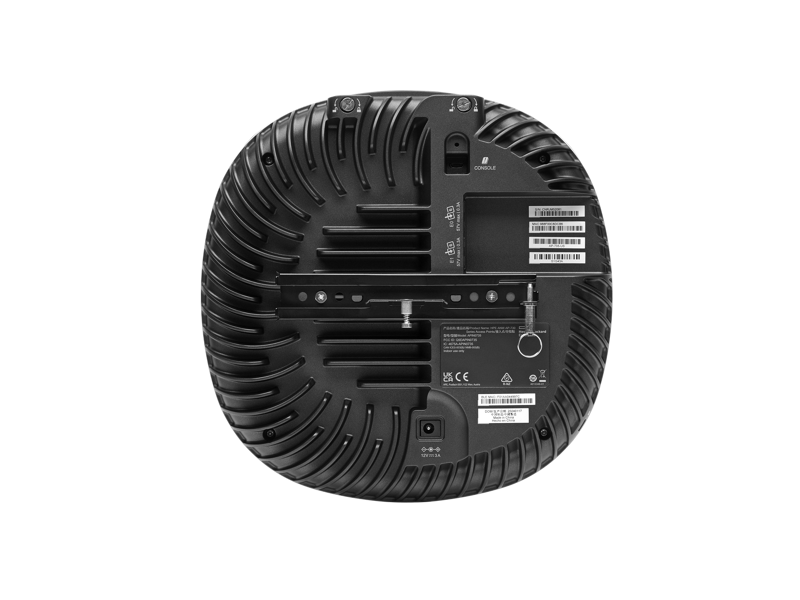

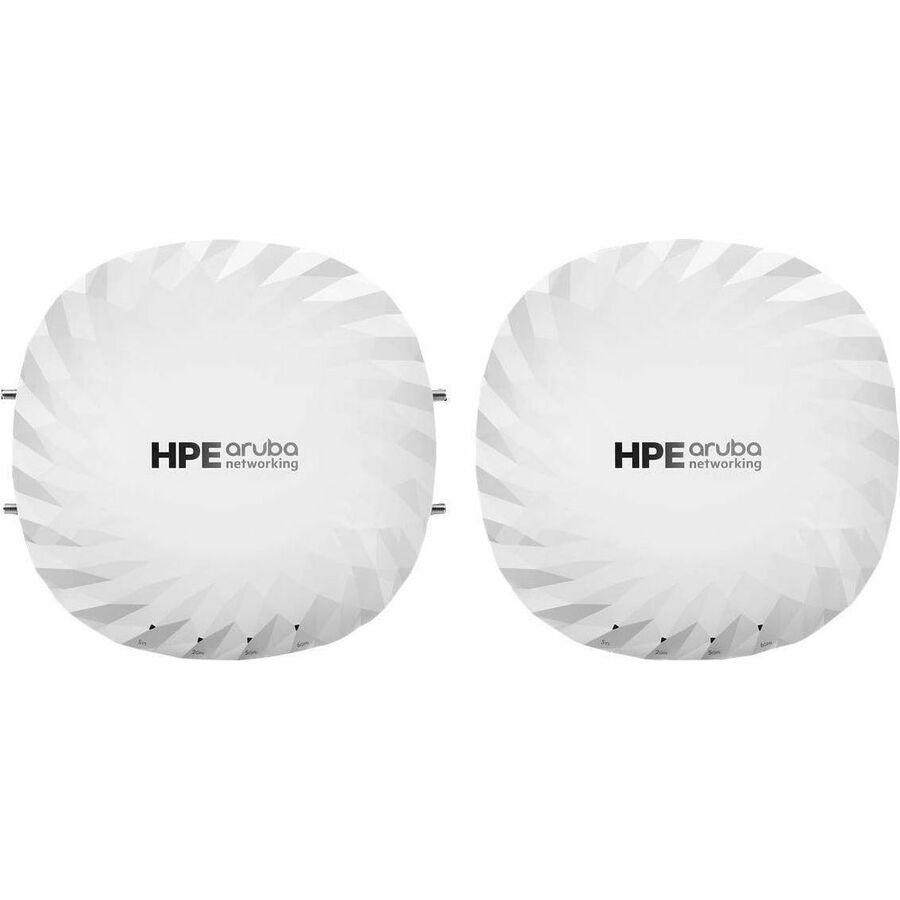

The HPE Aruba Networking AP-735 (RW) is a high-performance, tri-radio Wi-Fi 7 access point built for next-gen wireless networks in enterprise, education, healthcare, and industrial IoT environments. Featuring 2x2 MIMO on 2.4 GHz, 5 GHz, and 6 GHz bands, this 5-pack of indoor APs delivers up to 9.3 Gbps of aggregate throughput and supports up to 14.4 Gbps with dual-band mode for 5 GHz and 6 GHz.
Patented Ultra Tri-Band (UTB) Filtering enhances coverage and reduces interference across bands. With dual 5 Gbps Smart Rate Ethernet ports, Bluetooth 5.4, Zigbee radios, barometric sensors, and built-in GNSS, it supports advanced IoT applications and precise indoor location services.
Designed for modern secure networks, the AP-735 includes MACsec support, WPA3, and a Policy Enforcement Firewall for traffic segmentation. HPE Aruba Networking Central provides AI-driven insights and centralized management. Ideal for future-ready campus networks with high client density and advanced security needs.
| Specification | Details |
|---|---|
| Model Number | S0H12A |
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11be) |
| Radios | Tri-Radio (2.4 GHz, 5 GHz, 6 GHz) |
| MIMO | 2x2 per band |
| Max Data Rate | Up to 9.3 Gbps (tri-band) / Up to 14.4 Gbps (dual 5 GHz & 6 GHz mode) |
| Antenna Type | Internal omni-directional with peak gain: 5.1 dBi (2.4 GHz), 5.5 dBi (5 GHz), 5.3 dBi (6 GHz) |
| Ports | 2x RJ-45 (Smart Rate Ethernet 1/2.5/5 Gbps), 2x USB 2.0 (Type A), 1x Micro-B console |
| PoE Class | Class 4 or higher (802.3at/bt) |
| Power Consumption | DC: 20W (idle)/31W (max), PoE: 24W (idle)/36W (max) |
| Location Features | Built-in GNSS, barometric sensor, FTM (802.11az) |
| IoT Support | Dual radios for Bluetooth 5.4 and Zigbee (802.15.4), 2x USB extensions |
| Security Features | WPA3, MACsec, PEF, Enhanced Open, TPM for secure storage |
| Mounting | Pre-installed bracket; optional kits available |
| Certifications | UL2043, FCC, ISED, CE, RED, WFA (Wi-Fi 6/7 certified) |
| Warranty | Limited Lifetime Warranty |
| Form Factor | Indoor Ceiling Mount |
