Description
The HPE Aruba Networking AP-735 (US) from the 730 Series is a cutting-edge Wi‑Fi 7 access point built for high-performance, secure, and scalable campus environments. This 5-pack bundle delivers seamless tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz, offering up to 9.3 Gbps aggregate data rate and superior reliability with dual 5 Gbps Smart Rate Ethernet ports.
Designed for enterprise, healthcare, education, retail, and industrial IoT deployments, it features patented Ultra Tri-Band (UTB) filtering, Bluetooth 5.4 and Zigbee radios, built-in GNSS and barometric sensors, and enhanced security with WPA3, MACsec, and Dynamic Segmentation. It also supports precision indoor locationing, automated energy savings, and powerful IoT integration through HPE Aruba Networking Central.
This indoor access point supports 2x2 MIMO across all bands, features integrated down-tilt antennas, and includes mounting hardware. Backed by a limited lifetime warranty.
| Specification | Details |
|---|---|
| Product Number | S0H13A |
| Bundle | 5-Pack |
| Radio Configuration | Tri Radio 2x2 MIMO (2.4 GHz, 5 GHz, 6 GHz) |
| Wi-Fi Standard | Wi‑Fi 7 (IEEE 802.11be) |
| Max Aggregate Data Rate | Up to 9.3 Gbps (tri-band); up to 14.4 Gbps (dual 5/6 GHz mode) |
| Antenna Type | Internal down-tilt omni-directional antennas |
| Antenna Gain | 5.1 dBi (2.4 GHz), 5.5 dBi (5 GHz), 5.3 dBi (6 GHz) |
| Ethernet Ports | 2x Smart Rate RJ-45 (1/2.5/5 Gbps), MACsec-capable |
| USB Ports | 2x USB 2.0 Type-A |
| Other Ports | Serial console (Micro-B USB), Kensington lock slot |
| IoT Support | Bluetooth 5.4, Zigbee (802.15.4), 2x radios + 2 USB ports |
| Location Capabilities | GNSS receiver, barometric sensor, FTM (802.11az) sub-1m accuracy |
| Power Options | 48V PoE (802.3at/bt); 12V DC input |
| Power Consumption | Max: 24W (PoE) / 20W (DC); Up to 36W/31W with USB; Idle: 12W (PoE) / 8W (DC) |

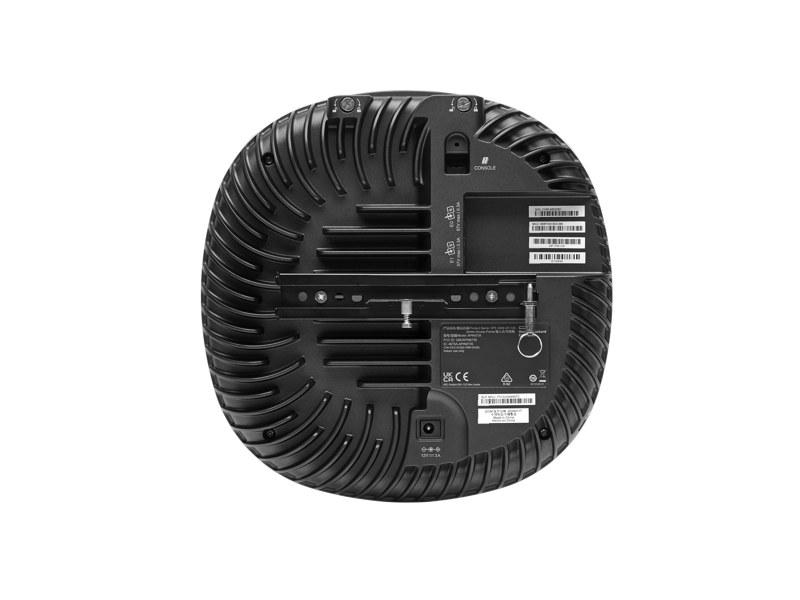

| Mounting | Pre-installed mounting bracket (optional kits sold separately) |
| Security | WPA3, Enhanced Open, TPM, Dynamic Segmentation, MACsec, PEF |
| Certifications | FCC, ISED, CE, Wi-Fi Alliance, UL2043, EN 60950, IEC/EN 62368‑1 |
| Warranty | Limited lifetime |
| Region | US Only |
