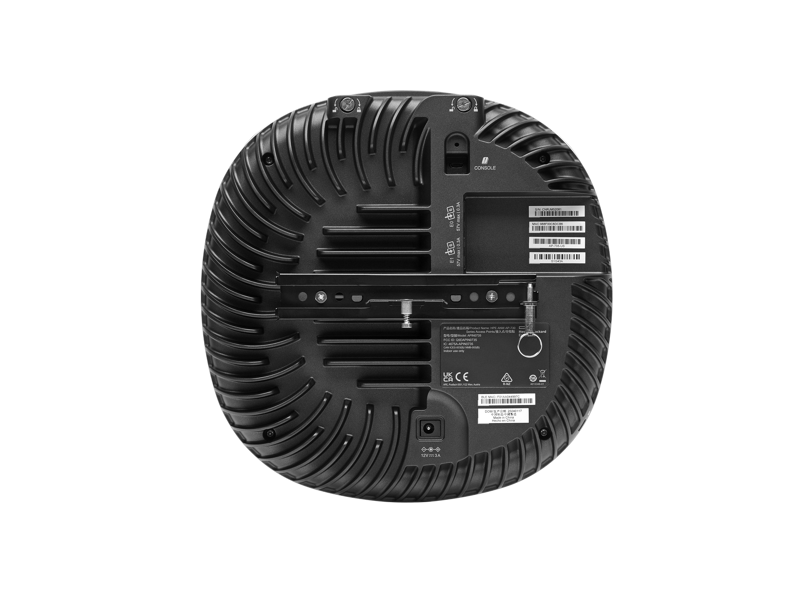

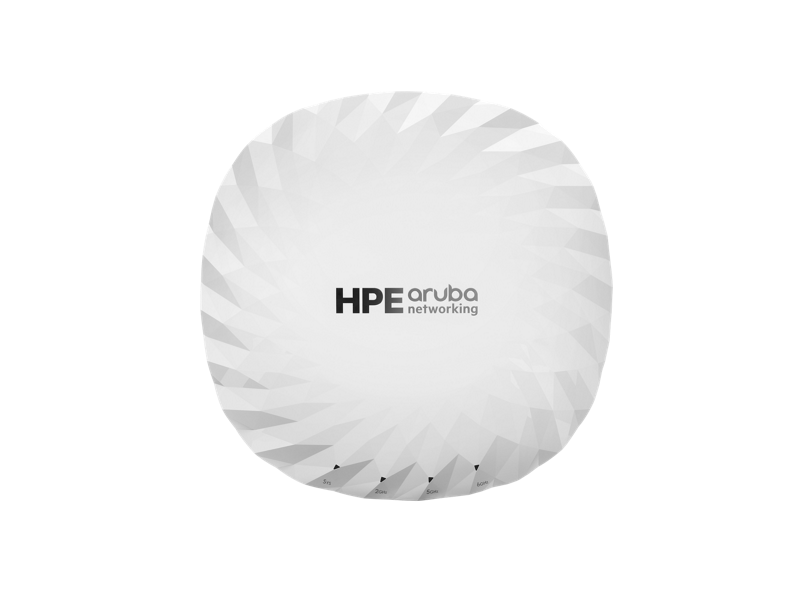

Bring next-generation wireless performance to your campus network with the HPE Aruba Networking AP‑735 (EGF1). Designed for high-density, mission-critical environments, this Wi-Fi 7 (802.11be) tri-radio access point delivers an aggregate data rate of up to 9.3 Gbps across 2.4 GHz, 5 GHz, and 6 GHz bands.
With patented Ultra Tri-Band (UTB) filtering, dual 5 Gbps Ethernet ports, integrated Bluetooth 5.4 and Zigbee radios, and built-in GNSS and barometric sensors, the AP-735 enables high-speed, secure, and location-aware wireless connectivity for a wide range of devices and IoT deployments. Ideal for enterprise, healthcare, education, and industrial sectors.
| Specification | Details |
|---|---|
| Product Number | S1G44A |
| Model | AP-735 (EGF1) |
| Wi-Fi Standard | IEEE 802.11be (Wi-Fi 7) |
| Radios | Tri-Radio: 2.4 GHz, 5 GHz, and 6 GHz (Concurrent) |
| MIMO | 2x2 MIMO on each band |
| Max Data Rate | Up to 9.3 Gbps (tri-band aggregate) |
| Antenna Type | Integrated down-tilt omni-directional antennas |
| Antenna Gain | 5.1 dBi (2.4 GHz), 5.5 dBi (5 GHz), 5.3 dBi (6 GHz) |
| Ethernet Ports | 2x HPE Smart Rate (1/2.5/5 Gbps) RJ-45 |
| USB Ports | 2x USB 2.0 Type-A |
| Console Port | Proprietary Micro-B USB |
| Mounting | Pre-installed bracket (mount kits sold separately) |
| Power Input | PoE (802.3at/bt Class 4+), 48V DC or 12V DC adapter |
| Max Power Consumption | 36W (PoE), 31W (DC) with USB devices |
| Idle Power Consumption | 12W (PoE), 8W (DC) |
| Deep Sleep Mode | 2W (PoE), 1.5W (DC) |
| IoT Support | Dual Bluetooth 5.4 and Zigbee radios, 2x USB ports |
| Location Services | Built-in GNSS, barometric pressure sensor, FTM (802.11az) |
| Security | WPA3, Enhanced Open, PEF firewall, TPM, MACsec (5 GbE) |
| Certifications | TAA, Wi-Fi CERTIFIED, UL2043, FCC/ISED, CE, IEC/EN 62368-1 |
| Deployment Type | Indoor Campus |
| Warranty | Limited Lifetime Warranty |
