Description

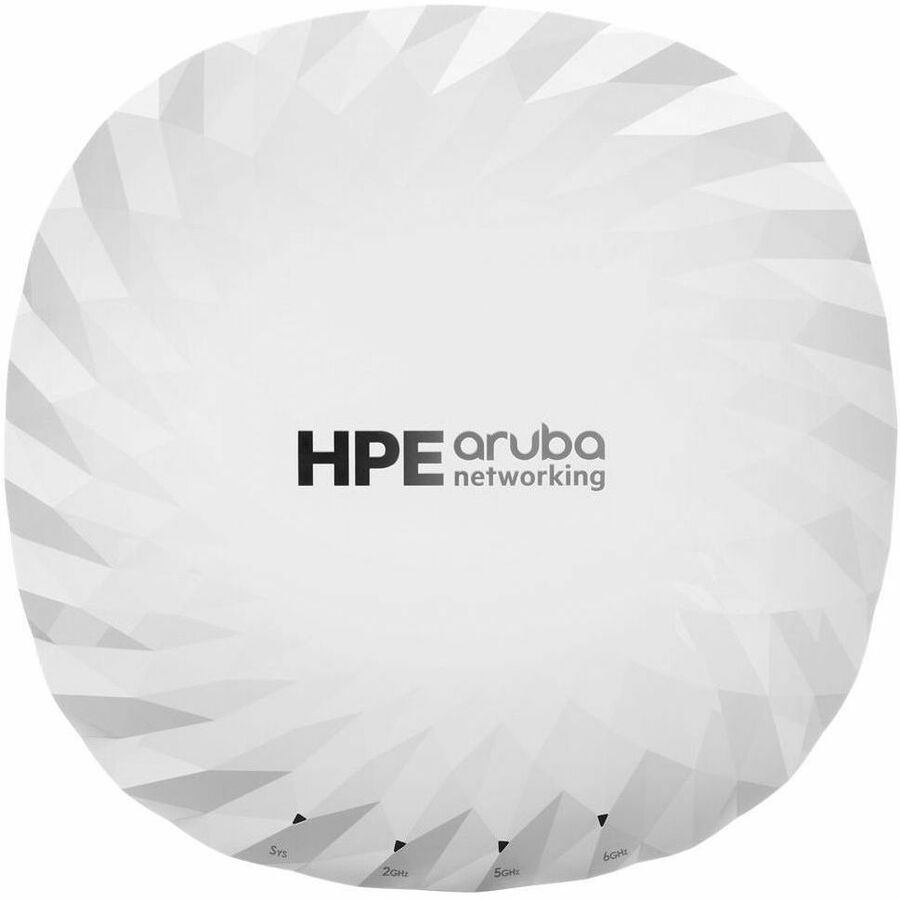

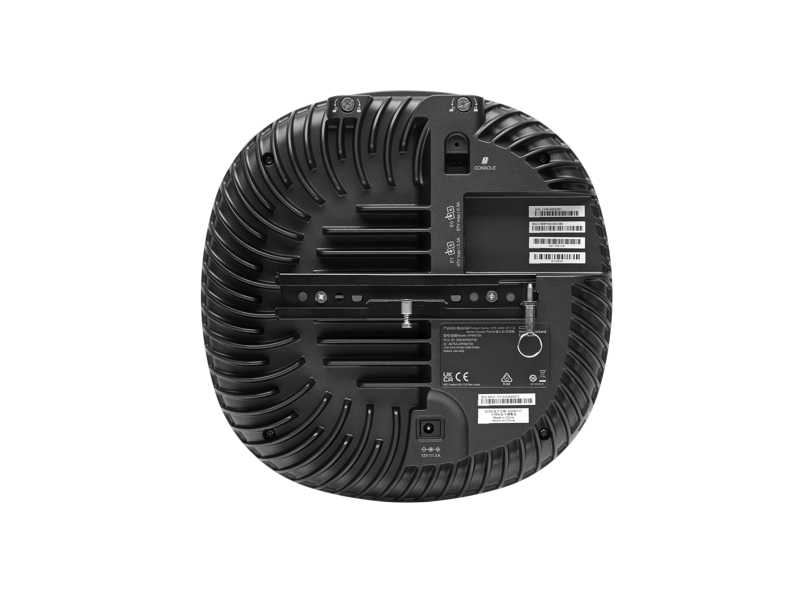

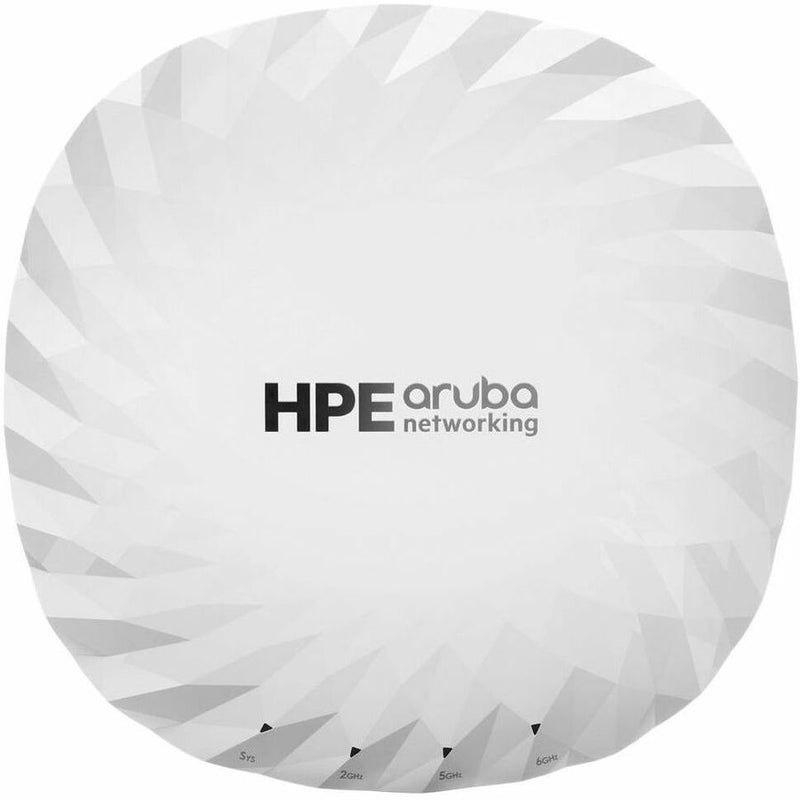

Empower high-performance enterprise networks with the HPE Aruba Networking AP‑735 (RWF1), a tri-radio Wi‑Fi 7 access point designed for dense indoor deployments such as campuses, healthcare facilities, retail environments, and industrial IoT scenarios. Supporting the full 2.4 GHz, 5 GHz, and 6 GHz bands with patented Ultra Tri-Band filtering and integrated omni-directional antennas, this access point delivers up to 9.3 Gbps aggregate throughput and maximized spectrum efficiency.
Built for resiliency and precision, the AP-735 includes dual 5 Gbps Smart Rate Ethernet ports, internal GNSS and barometric sensors for advanced indoor locationing, dual USB ports for IoT expansion, and enhanced WPA3-based security. Integrated Bluetooth 5.4 and 802.15.4 radios simplify IoT deployment while energy-efficient capabilities like Target Wake Time (TWT) and dynamic power save modes align with sustainability initiatives.
This model is TAA compliant and includes a limited lifetime warranty, ensuring long-term reliability and compliance for mission-critical wireless networks.
| Specification | Details |
|---|---|
| Model | HPE Aruba Networking AP‑735 (RWF1) |
| Part Number | S1G47A |
| Wi-Fi Standard | IEEE 802.11be (Wi‑Fi 7), tri-radio (2.4GHz, 5GHz, 6GHz) |
| Max Data Rate | Up to 9.3 Gbps aggregate (tri-radio 2x2 MIMO) |
| Antenna Type | Integrated down-tilt omni‑directional; optimized for ceiling mounting |
| Antenna Gain | 5.1 dBi (2.4GHz), 5.5 dBi (5GHz), 5.3 dBi (6GHz) |
| Ports | 2x RJ-45 Smart Rate Ethernet (1/2.5/5 Gbps), 2x USB 2.0 (Type-A) |
| Power Input | 48V DC PoE (802.3at/bt Class 4 or higher), 12V DC via 2.1mm/5.5mm plug |
| Max Power Consumption | 31W (DC), 36W (PoE) with USB; Idle: 8W–24W; Deep sleep: 1.5W–2.0W |
| Security | WPA3, MACsec, Enhanced Open (OWE), Policy Enforcement Firewall (PEF), TPM |
| IoT Support | Dual Bluetooth 5.4 and 802.15.4 radios, 2x USB for device expansion |
| Location Services | GNSS, barometric sensor, 802.11az FTM support for sub-1m precision |
| Certifications | Wi‑Fi Alliance (a/b/g/n/ac/6/7), UL2043, Bluetooth SIG, CE, FCC, ISED |
| Compliance | TAA, EN 60601-1-1, EN 60601-1-2, IEC/EN 62368‑1, RED, EMC, LVD |
| Mounting | Ceiling mount (bracket pre-installed), kits sold separately |
| Deployment Environment | Indoor Campus |
| Warranty | Limited Lifetime Warranty |
