Description

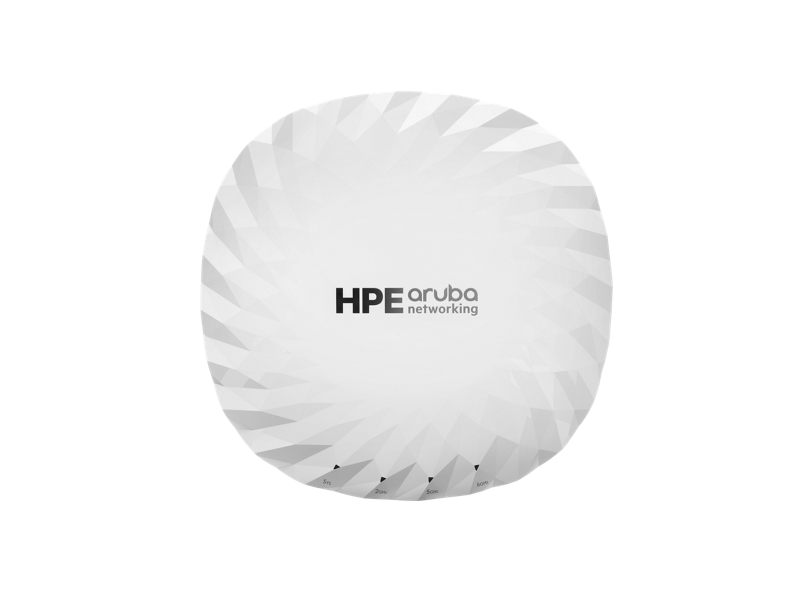

The HPE Aruba Networking AP-735 (ILF1) is a high-performance tri-radio access point engineered for the Wi‑Fi 7 standard and optimized for next-generation campus environments. With tri-band support across 2.4 GHz, 5 GHz, and 6 GHz, patented Ultra Tri-Band (UTB) filtering, and dual 5 Gbps Smart Rate Ethernet ports, the AP-735 delivers up to 9.3 Gbps aggregate throughput and resilient, secure connectivity.
Built for dense IoT and mission-critical environments, it supports advanced indoor location services, integrated GNSS, Bluetooth 5.4, Zigbee, and dynamic power management. Enhanced security features include Dynamic Segmentation, MACsec, WPA3, and a built-in TPM. This TAA-compliant model is ideal for enterprise, education, healthcare, retail, and industrial IoT deployments.
| Specification | Details |
|---|---|
| Product Number | S1G45A |
| Wi-Fi Standard | IEEE 802.11be (Wi‑Fi 7) |
| Radios | Tri-Radio (2.4 GHz, 5 GHz, 6 GHz) with 2x2 MIMO |
| Maximum Data Rate | Up to 9.3 Gbps tri-band aggregate (14.4 Gbps with dual-band mode) |
| Antenna Type | Integrated omni-directional antennas |
| Antenna Gain | 5.1 dBi (2.4 GHz), 5.5 dBi (5 GHz), 5.3 dBi (6 GHz) |
| Ports | 2x 1/2.5/5 Gbps Smart Rate Ethernet (RJ-45), 2x USB 2.0 (Type A) |
| IoT Radios | Bluetooth 5.4 and 802.15.4 (Zigbee) |
| Security | WPA3, Enhanced Open, MACsec, TPM, Dynamic Segmentation, PEF |

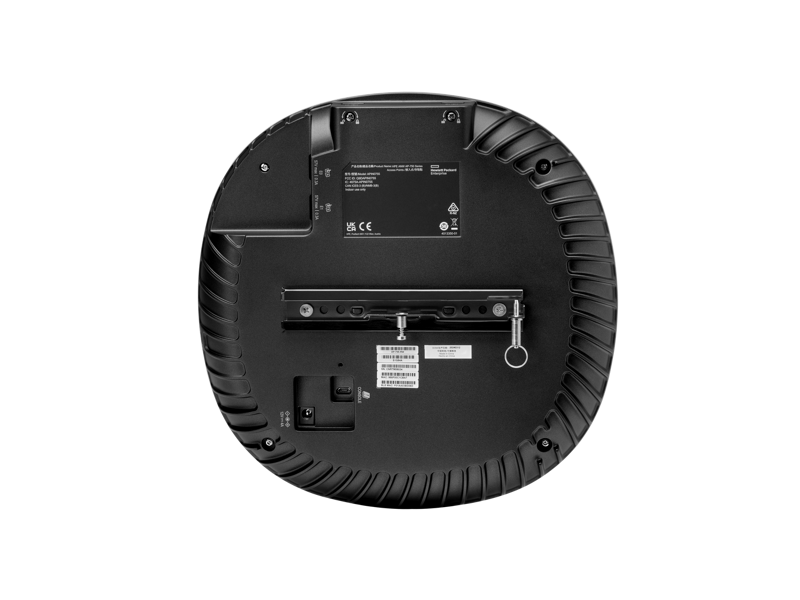

| Mounting | Integrated mounting bracket, optional kits available |
| Power Options | 802.3at/bt PoE (Class 4+), or 12V DC input |
| Max Power Consumption | 36W (PoE), 31W (DC), with USB devices attached |
| Idle/Deep Sleep Power | 12W/2W (PoE), 8W/1.5W (DC) |
| Location Services | GNSS, barometric sensor, FTM (802.11az) |
| Certifications | Wi-Fi CERTIFIED 6/7, Bluetooth SIG, UL2043, CE, FCC/ISED, TAA-compliant |
| Deployment Environment | Indoor, TAA-compliant |
| Warranty | Limited Lifetime |
