Description

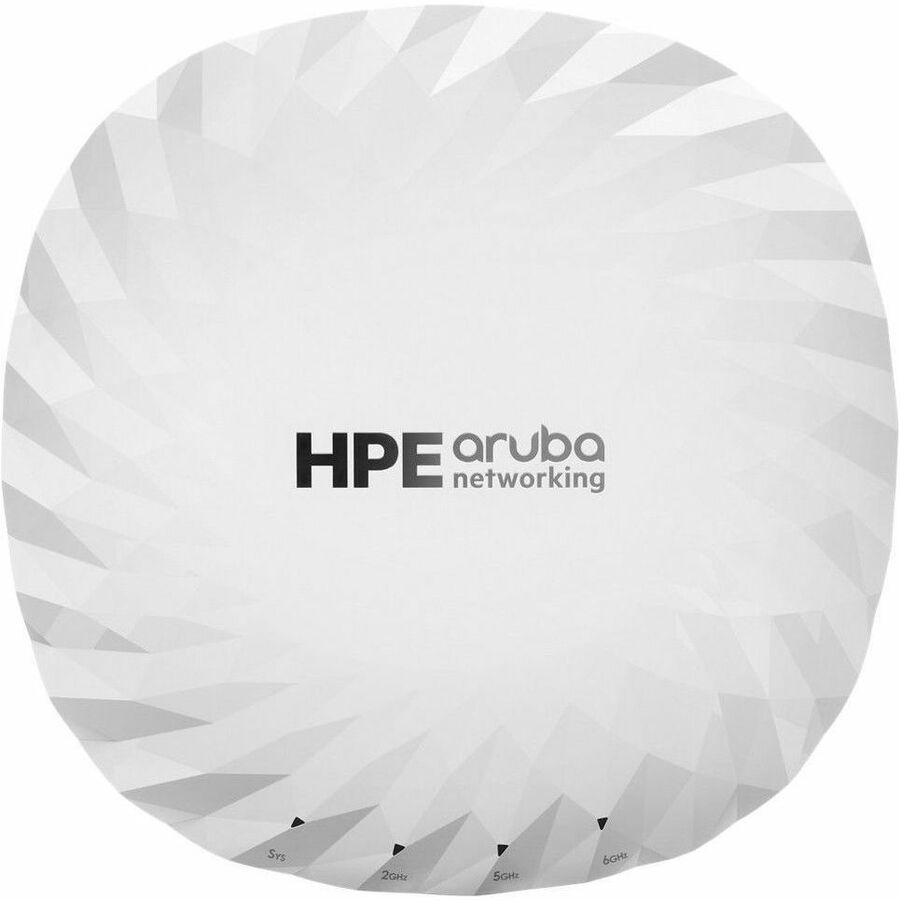

The HPE Aruba Networking AP-735 (JPF1) is a high-performance, tri-radio access point built on the Wi-Fi 7 (802.11be) standard, designed to deliver next-generation wireless connectivity in enterprise, healthcare, education, and industrial IoT environments. Supporting tri-band operation (2.4 GHz, 5 GHz, and 6 GHz), it delivers a maximum aggregate throughput of up to 9.3 Gbps using 2x2 MIMO radios and optional dual-band configuration.
Engineered for dense client and IoT deployments, the AP-735 includes integrated Bluetooth 5.4 and Zigbee radios, Ultra Tri-Band (UTB) filtering, and a built-in GNSS receiver with barometric sensors for location-aware services. With enhanced security via WPA3, Dynamic Segmentation, and MACsec on 5 GbE, it also features dual 5 Gbps Smart Rate Ethernet ports for hitless failover and USB extensibility.
Whether mounted in a ceiling for optimal omni-directional coverage or acting as an indoor IoT platform, the AP-735 is ideal for future-ready, resilient, and high-capacity campus networks.
| Specification | Details |
|---|---|
| Product Number | S1G46A |
| Wi-Fi Standard | Wi-Fi 7 (IEEE 802.11be) |
| Radio Configuration | Tri-radio (2.4 GHz, 5 GHz, 6 GHz), 2x2 MIMO |
| Max Aggregate Data Rate | Up to 9.3 Gbps (tri-band); Up to 14.4 Gbps (dual 5/6 GHz mode) |
| Antenna Type | Internal omni-directional (5.1 dBi @2.4 GHz, 5.5 dBi @5 GHz, 5.3 dBi @6 GHz) |

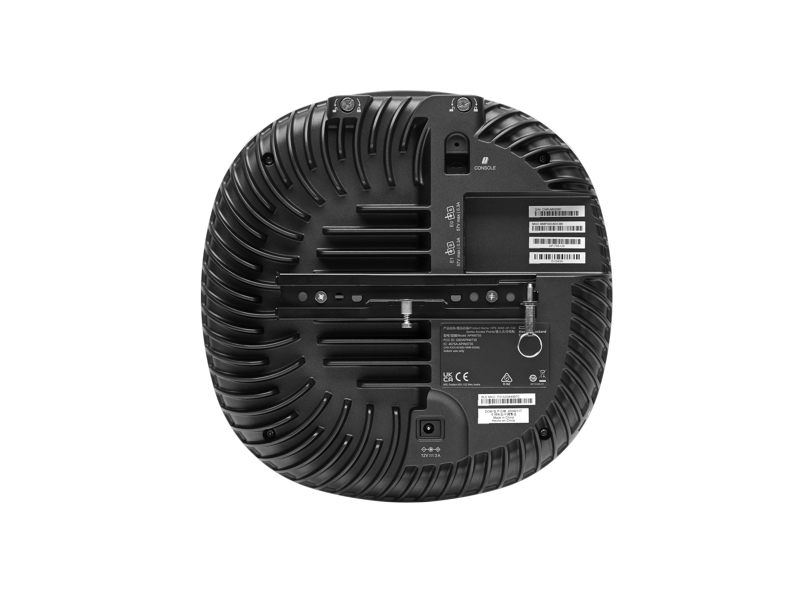

| Mounting | Ceiling mount with bracket (pre-installed), optional kits sold separately |
| Ethernet Ports | 2x 1/2.5/5 Gbps Smart Rate (RJ-45), MACsec-capable |
| USB Ports | 2x USB 2.0 (Type A) |
| IoT Radios | 2x Bluetooth 5.4 and 802.15.4 (Zigbee) |
| Additional Interfaces | Serial console (micro-B USB), Kensington lock slot |
| Power Input | 48V PoE (802.3at/bt), or 12V DC adapter |
| Power Consumption | Max: 31W (DC), 36W (PoE); Idle: 8W/12W; Deep Sleep: 1.5W/2W |
| Security Features | WPA3, Enhanced Open, TPM, MACsec, Policy Enforcement Firewall (PEF) |
| Location Services | GNSS, barometric pressure sensor, 802.11az (FTM) |
| Certifications | Wi-Fi CERTIFIED 6/7, UL2043, Bluetooth SIG, TAA compliant |
| Environmental Rating | Indoor, plenum-rated |
| Warranty | Limited lifetime warranty |
