Description

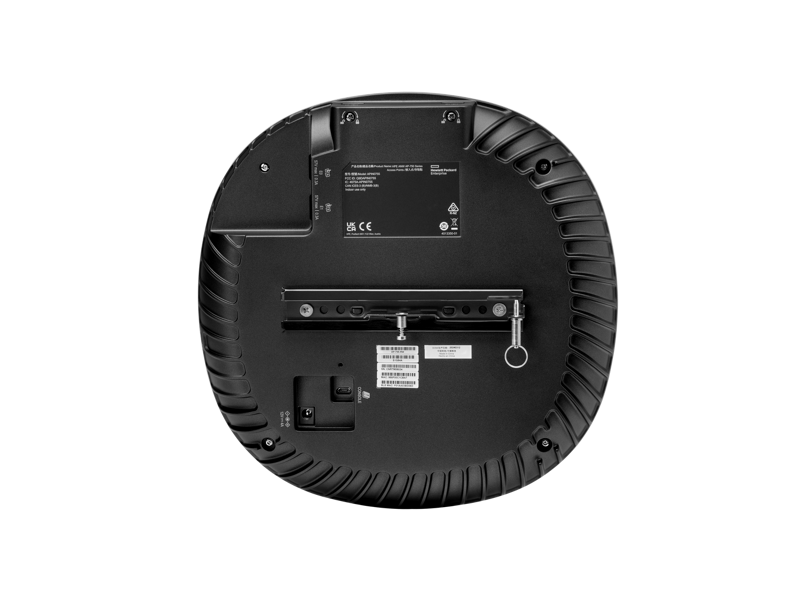

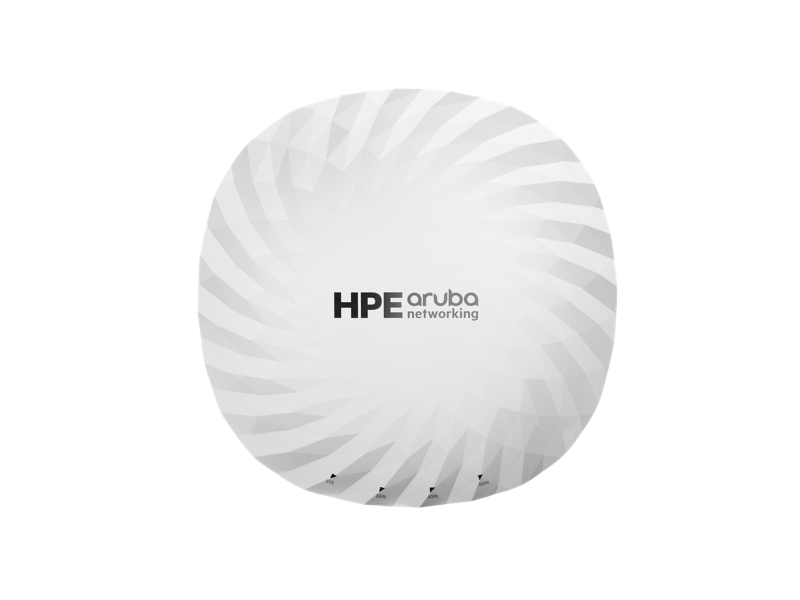

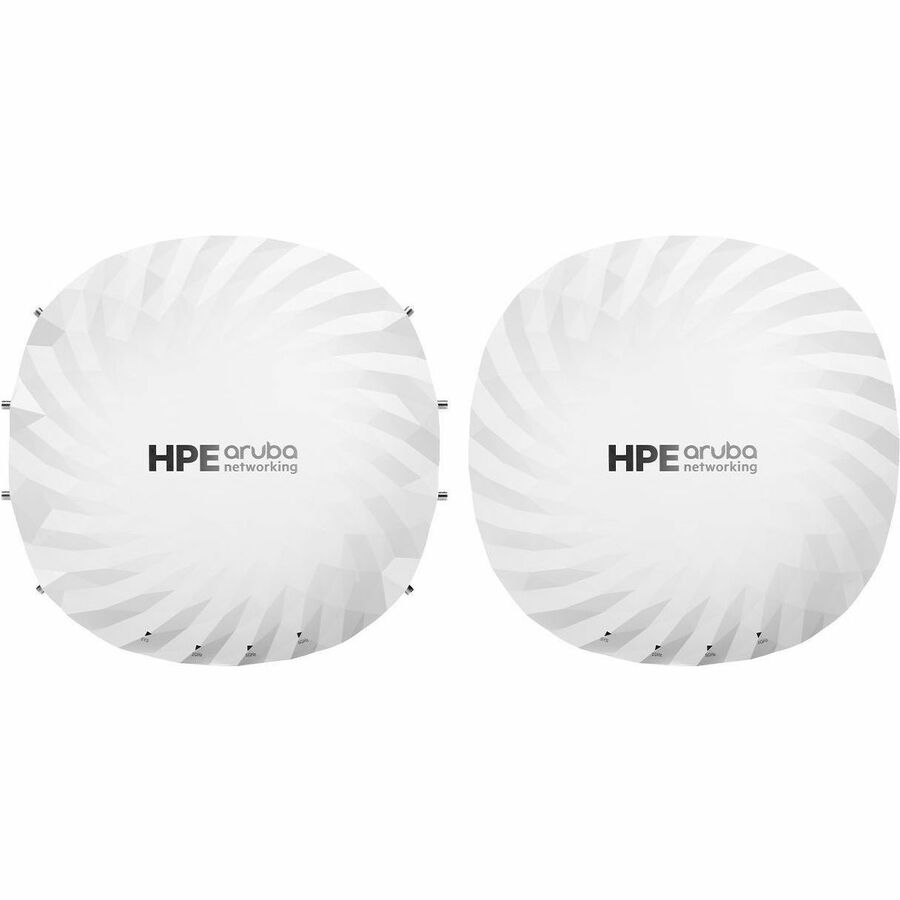

The HPE Aruba Networking AP‑755 (EG) is a flagship Wi‑Fi 7 indoor campus access point designed for the most demanding enterprise environments such as education, healthcare, and industrial IoT. Part of the 750 Series, it features tri-band 4x4 MIMO radios (2.4, 5, and 6 GHz), delivering up to 18.7 Gbps aggregate throughput with ultra-low latency, AI-powered automation, and advanced IoT integration.
With built-in Ultra Tri-Band filtering, dual 10GbE Ethernet ports for hitless failover, and dual Bluetooth 5.4 and Zigbee radios, the AP‑755 ensures seamless client performance, robust security with MACsec and WPA3, and support for high-density IoT and precision location services via GNSS and barometric sensors.
| Specification | Details |
|---|---|
| Product Number | S1G81A |
| Wi‑Fi Standard | Wi‑Fi 7 (802.11be) |
| Radios | Tri-radio (2.4 GHz, 5 GHz, 6 GHz) 4x4 MIMO |
| Max Data Rate | Up to 18.7 Gbps (tri-band); up to 28.8 Gbps (dual 5/6 GHz mode) |
| Antenna Type | Internal omni-directional, down-tilt (5.3 dBi @ 2.4GHz, 6.0 dBi @ 5/6GHz) |
| Ethernet Ports | 2x 10GbE (RJ-45) with hitless failover and power summing |
| USB Ports | 2x USB 2.0 (Type-A) |
| IoT Radios | 2x Bluetooth 5.4, 2x 802.15.4 (Zigbee) |
| Location Services | Built-in GNSS receiver, barometric pressure sensor, FTM 802.11az support |
| Security Features | WPA3, MACsec, Enhanced Open, TPM, Policy Enforcement Firewall (PEF) |
| Power Consumption | Max: 46W (DC), 51W (PoE); Idle: 14W–25W; Deep-sleep: 2.4W–3.5W |
| Mounting | Preinstalled bracket (kits sold separately) |
| Operating Environment | Indoor, ceiling-mounted |
| Certifications | Wi‑Fi Alliance (Wi‑Fi 7, WPA3), UL2043, Bluetooth SIG, CE, FCC/ISED |
| Warranty | Limited lifetime warranty |
