Description

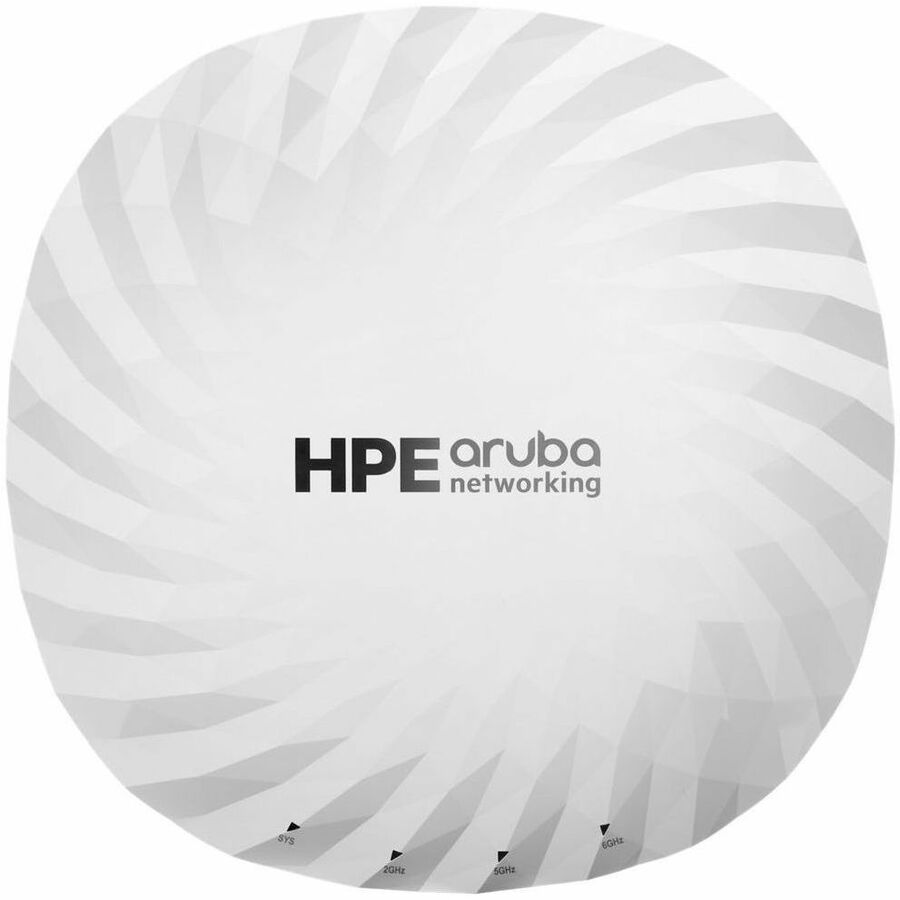

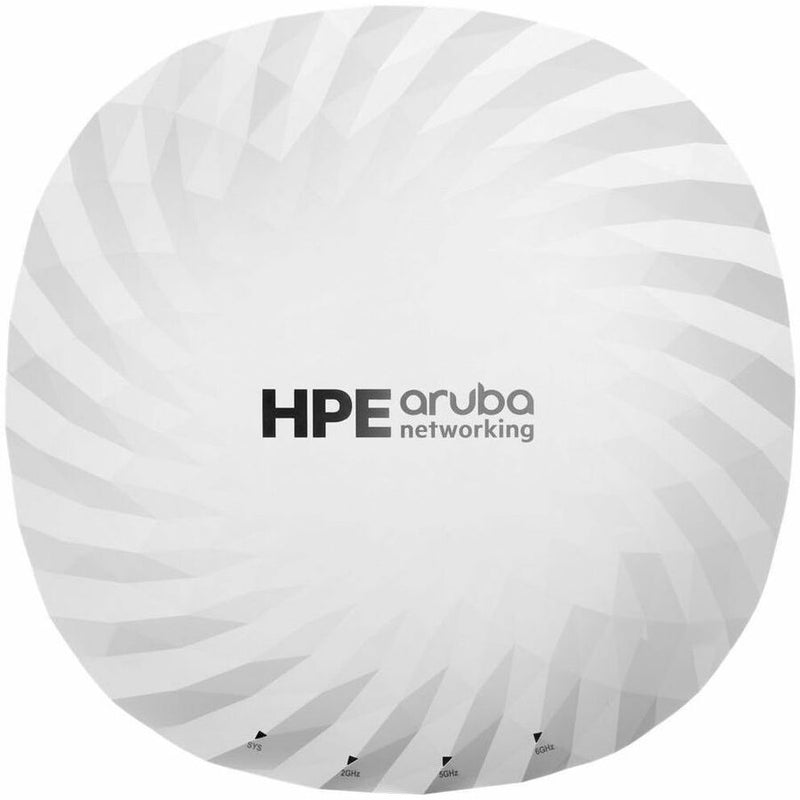

The HPE Aruba Networking AP-755 (IL) is a high-performance, tri-radio Wi-Fi 7 (802.11be) access point built for demanding enterprise, healthcare, education, retail, and industrial IoT environments. Part of the Aruba 750 Series, the AP-755 delivers up to 18.7 Gbps aggregate throughput across 2.4 GHz, 5 GHz, and 6 GHz bands via 4x4 MIMO radios.
With dual 10GbE ports for high availability and failover, integrated Bluetooth 5.4 and 802.15.4 radios for Zigbee, built-in GNSS receiver, and patented Ultra Tri-band (UTB) filtering, this AP empowers secure, scalable, and AI-driven connectivity. It includes enhanced device assurance with TPM, MACsec support, and WPA3 security features.
Ideal for ceiling-mounted indoor deployments, the AP-755 also supports self-location via barometric sensors and FTM, delivering precise indoor locationing capabilities.
| Specification | Details |
|---|---|
| Model Number | S1G82A |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Radios | 3 × 4x4 MIMO (2.4 GHz, 5 GHz, 6 GHz) |
| Max Data Rate | Up to 18.7 Gbps (tri-band); Up to 28.8 Gbps (optional dual 5/6 GHz) |
| Internal Antennas | Omni-directional, ceiling-optimized, 5.3 dBi (2.4 GHz), 6.0 dBi (5 GHz), 6.0 dBi (6 GHz) |
| Wired Interfaces | 2 × 10GbE (RJ-45), 2 × USB 2.0 (Type-A), Micro-B serial console |
| Security | WPA3, Enhanced Open, TPM, MACsec-capable port |
| IoT Support | 2 × Bluetooth 5.4 + 802.15.4 radios (Zigbee), 2 × USB ports |
| Mounting | Integrated bracket, compatible with Aruba mount kits |
| Power (Max) | 35W (DC), 40W (PoE); Up to 51W with USB |
| Idle/Deep Sleep Power | Idle: 14W (DC)/12W (PoE); Deep Sleep: 2.4W (DC)/3.5W (PoE) |
| Location Services | Built-in GNSS, barometric sensor, 802.11az (FTM) |
| Certifications | Wi-Fi CERTIFIED 6/7, Bluetooth SIG, PoE Class 6, UL2043, WPA/WPA2/WPA3 |
| Regulatory Compliance | FCC, CE, RED, EMC, LVD, EN 60601, UL/IEC/EN 62368-1 |
| Environment | Indoor; Ceiling-mounted orientation |
| Warranty | Limited Lifetime Warranty |
