Description

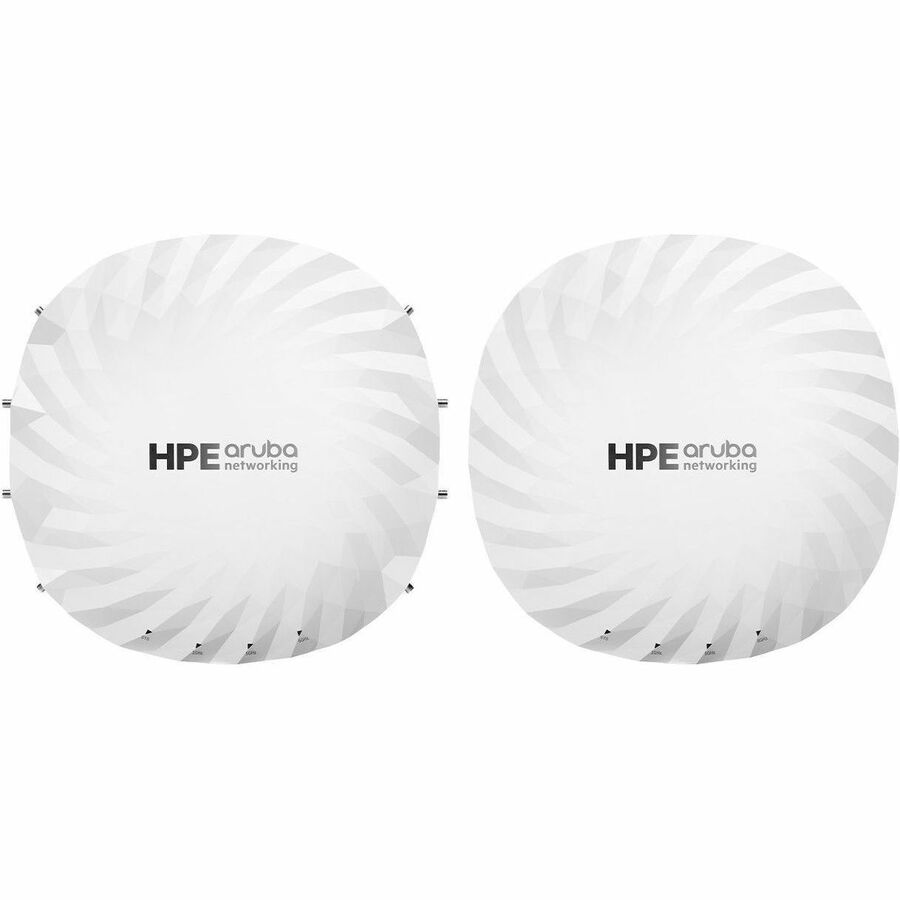

The HPE Aruba Networking AP‑755 (JP) is a high-performance, AI-powered Wi‑Fi 7 access point built for demanding enterprise environments, including education, healthcare, retail, and industrial IoT deployments. Featuring three 4x4 MIMO radios for concurrent 2.4 GHz, 5 GHz, and 6 GHz tri-band coverage, it delivers up to 18.7 Gbps wireless throughput and supports dual 10GbE ports for power and data redundancy.
Designed with integrated omni-directional antennas and patented Ultra Tri-Band (UTB) filtering, the AP‑755 ensures seamless performance across Wi‑Fi 7 bands without interference gaps. It includes enhanced security features like Dynamic Segmentation, MACsec-capable ports, WPA3, TPM, and firewall policy enforcement.
The AP‑755 also functions as a robust IoT platform with dual BLE 5.4 and Zigbee radios, two USB ports for device integration, and built-in GNSS and barometric sensors for precise indoor location services. Perfect for TAA-compliant deployments in Japan.
| Specification | Details |
|---|---|
| Product Number | S1G88A |
| Wi‑Fi Standard | Wi‑Fi 7 (802.11be) |
| Radios | Tri-radio (2.4 GHz, 5 GHz, 6 GHz) – 4x4 MIMO each |
| Max Data Rate | Up to 18.7 Gbps (tri-band); up to 28.8 Gbps (dual 5/6 GHz mode) |
| Antenna Type | Internal omni-directional (5.3 dBi @ 2.4GHz, 6.0 dBi @ 5/6GHz) |
| Ports | 2x RJ-45 (1/2.5/5/10G), 2x USB 2.0 Type-A, Console (Micro-B USB) |

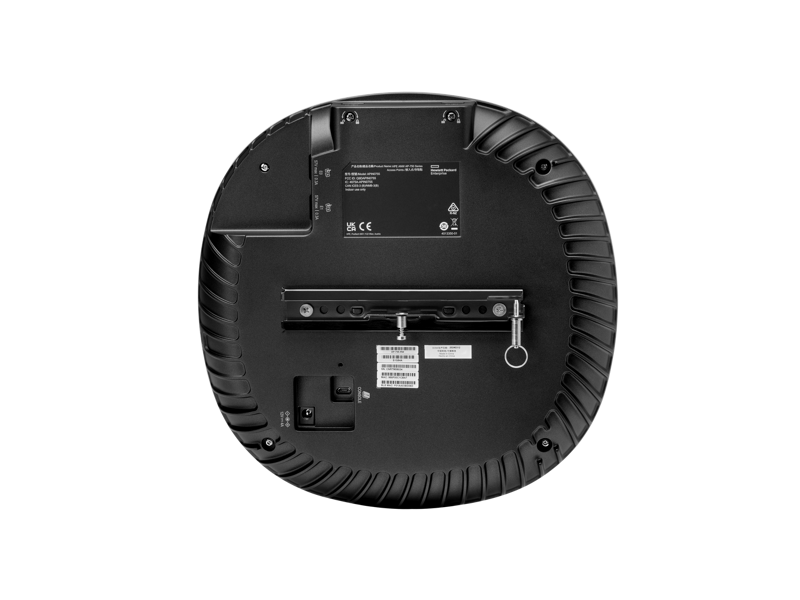

| Mounting | Pre-installed bracket; optional mounting kits available |
| IoT Radios | 2x Bluetooth 5.4 + Zigbee (802.15.4); 2x USB ports for IoT expansion |
| Power Consumption | Max: 40W (PoE), 35W (DC); Idle: 12–14W; Deep Sleep: 2.4–3.5W |
| Power Source | PoE (802.3bt Class 6) or DC input |
| Security | WPA3, MACsec, Enhanced Open, TPM, Dynamic Segmentation, PEF Firewall |
| Location Services | GNSS, FTM (802.11az), barometric pressure sensor |
| Certifications | TAA, Wi-Fi 7, UL2043, CE, FCC, RED, EMC, EN/IEC safety, WPA3 |
| Dimensions | Optimized for ceiling mount; internal antenna downtilt ~30–40 degrees |
| Warranty | Limited lifetime warranty |
