Description

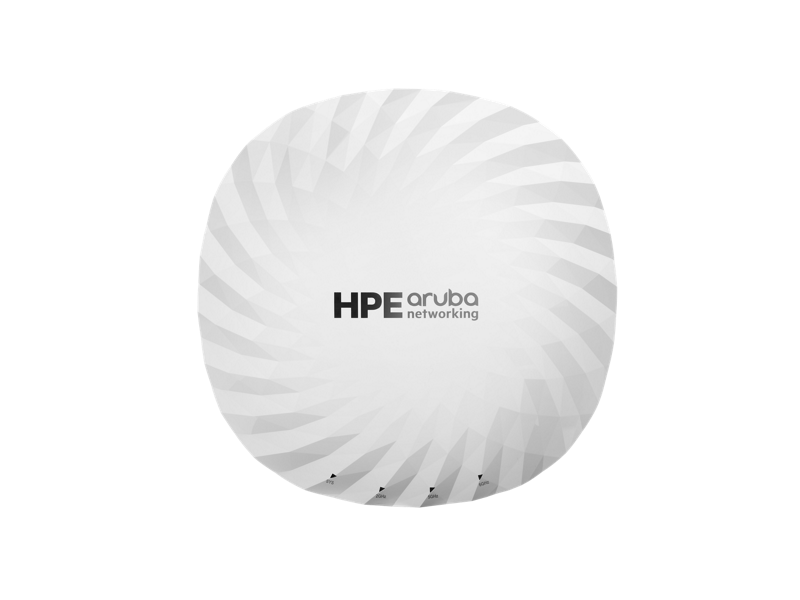

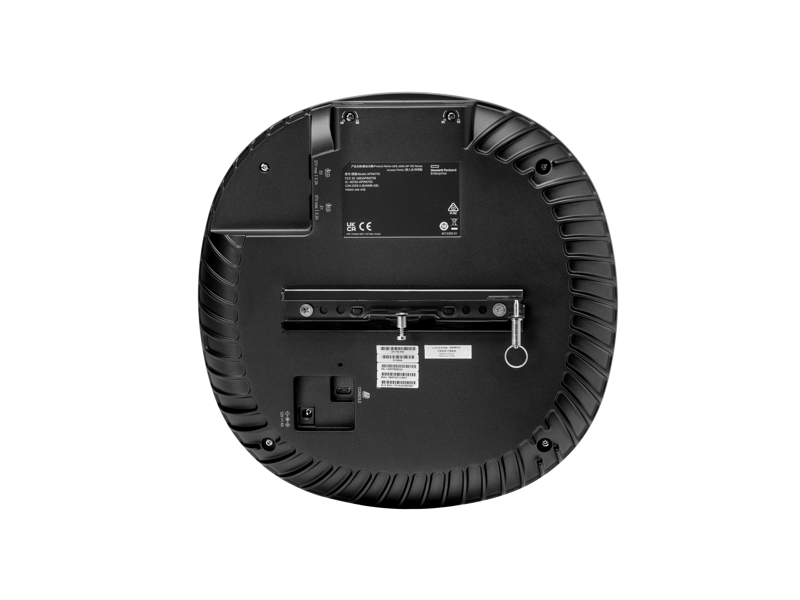

The HPE Aruba Networking AP-755 (IL) is a high-performance Wi-Fi 7 (802.11be) tri-radio access point designed for demanding campus environments in Israel. With internal omni-directional antennas, three 4x4 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), dual 10GbE ports, and integrated IoT and location services, the AP-755 offers industry-leading connectivity, reliability, and intelligent security.
Delivering an aggregate data rate of up to 18.7 Gbps, the AP-755 includes patented Ultra Tri-band (UTB) filtering, dynamic power savings, and enhanced IoT integration with Bluetooth 5.4 and Zigbee radios. Built-in GNSS and barometric sensors enable precise indoor positioning, making it ideal for enterprise, healthcare, education, and smart building deployments.
With HPE Aruba Networking Central and AOS-10 support, this access point delivers AI-powered automation, policy-based segmentation, and real-time client insights for streamlined network management.
| Specification | Details |
|---|---|
| Product Number | S1G87A |
| Model | AP-755 (IL) |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Radios | Tri Radio: 2.4 GHz, 5 GHz, 6 GHz |
| MIMO | 4x4 for each band |
| Antenna Type | Internal omni-directional antennas |
| Antenna Gain | 2.4 GHz: 5.3 dBi 5 GHz: 6.0 dBi 6 GHz: 6.0 dBi |
| Max Aggregate Data Rate | Up to 18.7 Gbps (tri-band) Up to 28.8 Gbps (dual 5/6 GHz optional) |
| Ethernet Ports | 2 x 10GbE (RJ-45) |
| USB Ports | 2 x USB 2.0 Type-A |
| Console Port | Proprietary micro-B USB |
| Security | WPA3, Enhanced Open, MACsec, TPM |
| IoT Radios | 2 x Bluetooth 5.4 + 802.15.4 Zigbee |
| Positioning | Built-in GNSS + Barometric Sensor |
| Mounting | Ceiling mount with preinstalled bracket |
| Power Consumption | Max (PoE): 51W Idle: 12W–23W Deep Sleep: 3.5W |
| Power Options | DC or PoE (Class 6) |
| TAA Compliance | Yes |
| Warranty | Limited Lifetime Warranty |
| Certifications | Wi-Fi Alliance, UL2043, CE, FCC, EN/IEC 62368-1 |
