Description

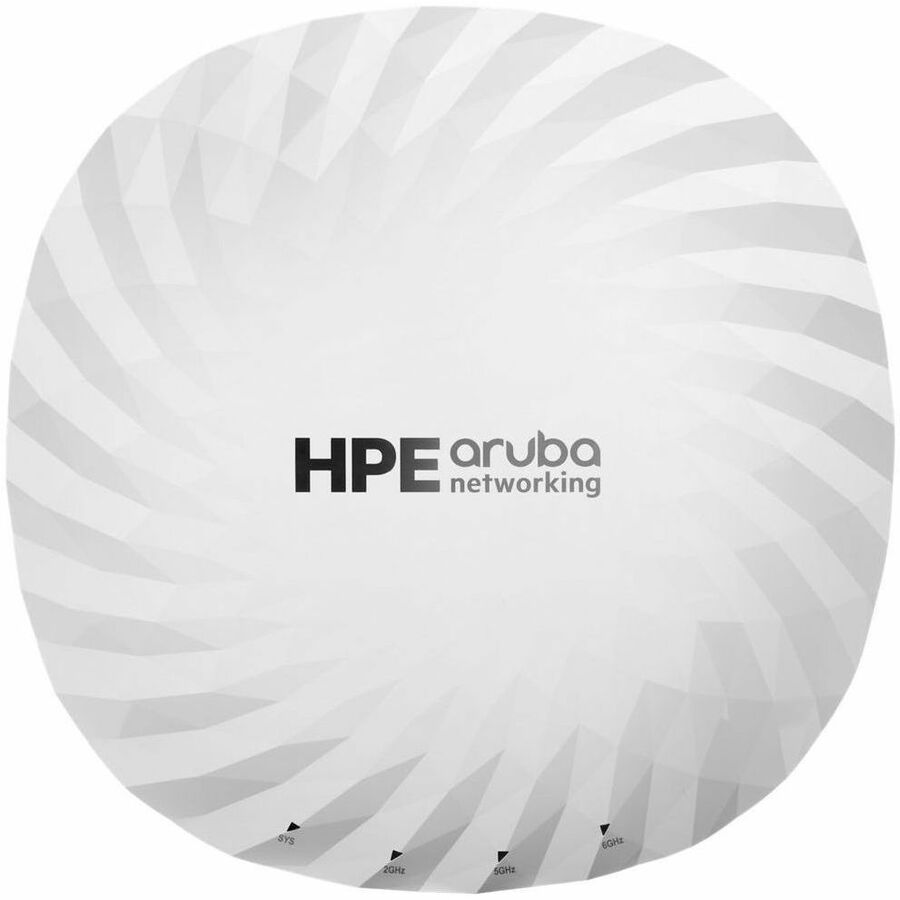

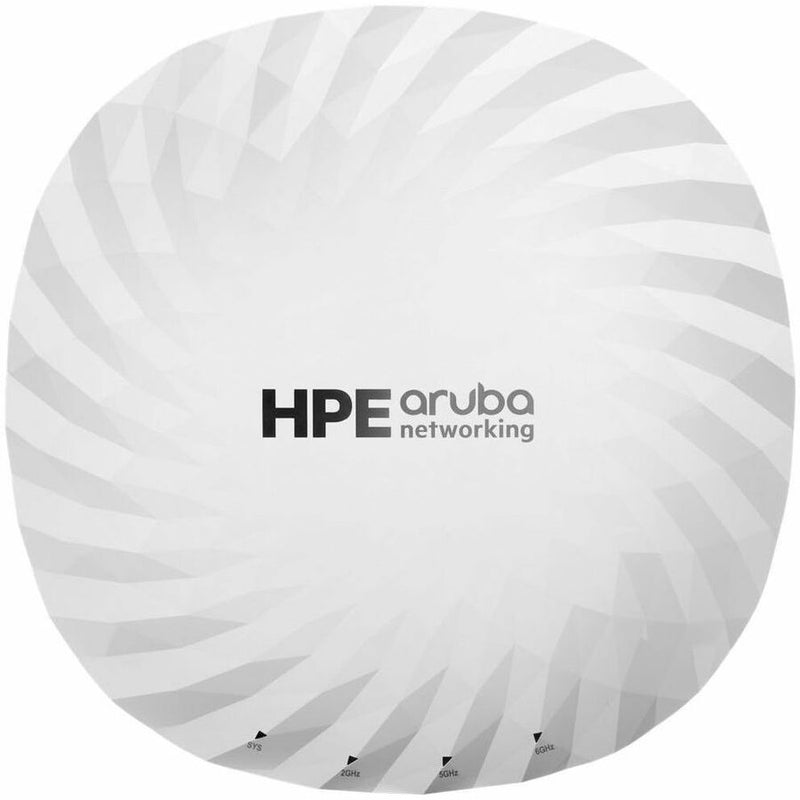

Experience the next generation of wireless networking with the HPE Aruba Networking AP-755 (EG) — a high-performance Wi-Fi 7 (802.11be) indoor access point built for demanding campus environments. With tri-radio 4x4 MIMO operation across the 2.4 GHz, 5 GHz, and 6 GHz bands, the AP-755 delivers an aggregate data rate of up to 18.7 Gbps, enabling ultra-fast connectivity and low-latency performance.
Engineered for enterprise-grade applications, the AP-755 features dual 10 GbE ports for high availability, integrated down-tilt antennas, and advanced Ultra Tri-band (UTB) filtering. The built-in GNSS receiver, barometric sensor, and Bluetooth 5.4 / Zigbee radios make it an ideal platform for IoT and indoor location services.
Enhanced with AI-powered automation, MACsec security, and HPE Aruba Networking Central integration, this TAA-compliant AP is your ideal solution for education, healthcare, retail, and large enterprise networks.
| Specification | Details |
|---|---|
| Model Number | S1G86A |
| Product Type | Indoor Campus Access Point |
| Wi-Fi Standard | Wi-Fi 7 (802.11be), backward compatible with 802.11a/b/g/n/ac/ax |
| Radios | 3 x 4x4 MIMO Radios (2.4 GHz, 5 GHz, 6 GHz) |
| Max Data Rate | Up to 18.7 Gbps (tri-band), up to 28.8 Gbps (dual-band modes) |
| Antenna Type | Internal down-tilt omni-directional antennas |
| Peak Antenna Gain | 5.3 dBi (2.4 GHz), 6.0 dBi (5 GHz/6 GHz) |
| Ethernet Ports | 2 x 10G RJ-45 (supporting 100M/1G/2.5G/5G/10G) |
| USB Ports | 2 x USB 2.0 (Type-A) |
| Console Port | Micro-USB (proprietary) |
| IoT Radios | Bluetooth 5.4 and 802.15.4 (Zigbee) |
| Location Services | Built-in GNSS, barometric pressure sensor, 802.11az FTM |
| Power Consumption | Max: 46W (DC) / 51W (PoE) incl. USB |
| Idle / Deep-Sleep Power | 14W / 2.4W (DC), 12W / 3.5W (PoE) |

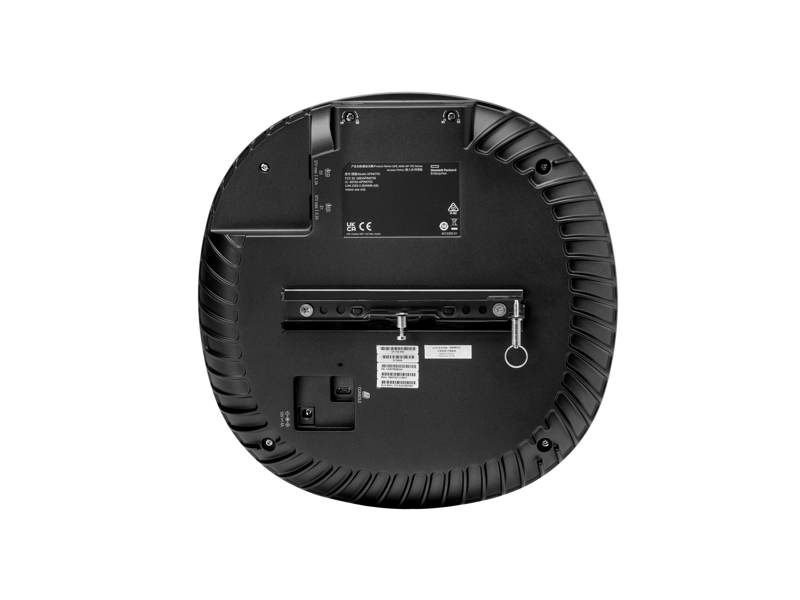

| Mounting | Ceiling/wall mount (bracket pre-installed, kits sold separately) |
| Security Features | WPA3, Enhanced Open, MACsec, TPM, Dynamic Segmentation |
| Software Compatibility | HPE Aruba Networking AOS-10, Aruba Central |
| Warranty | Limited Lifetime Warranty |
| Compliance | TAA Compliant, UL2043, CE, FCC, Wi-Fi CERTIFIED 6/7, WMM, WFA |
