Description

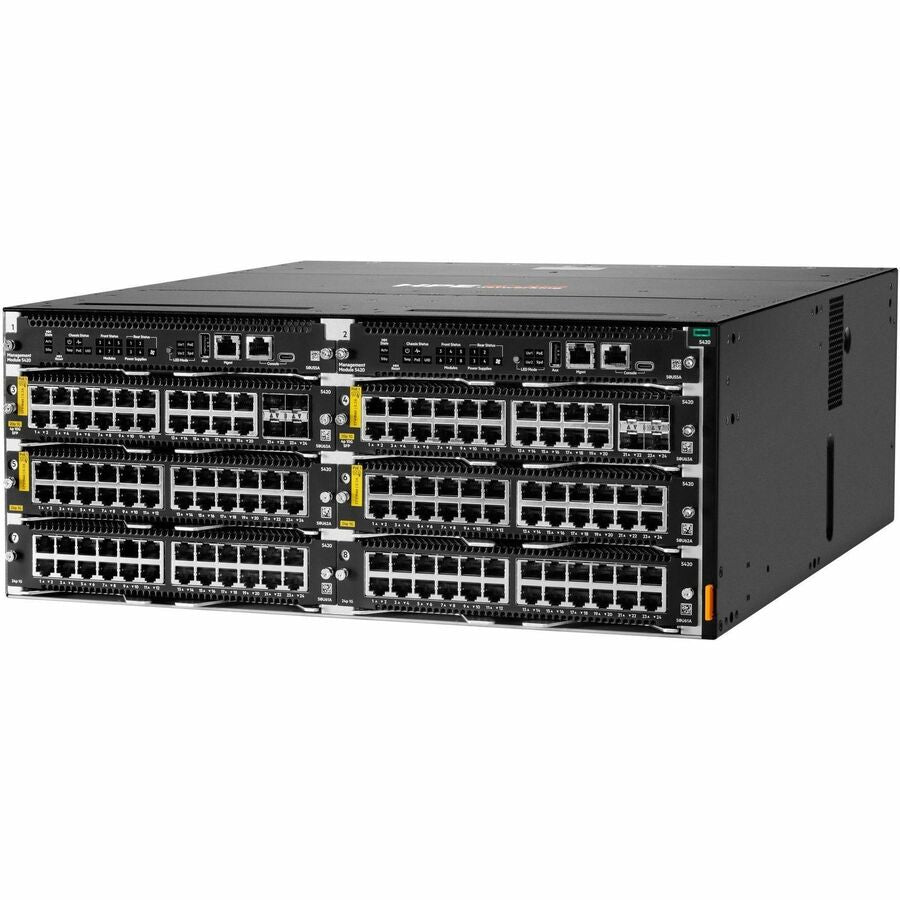

Unlock high-performance, multi-gigabit connectivity for modern enterprise networks with the HPE Aruba Networking CX 5420 16p Smart Rate 1G/2.5G/5G Class6 PoE Module. Designed for the CX 5420 modular Layer 3 switch chassis, this Smart Rate line card delivers secure, high-speed wired access with support for up to 90W IEEE 802.3bt Class 8 PoE—ideal for powering access points, IoT devices, and more.
Built on a Gen7 ASIC architecture, the module enables ultra-low latency switching (2.5 µs) and throughput of up to 714 Mpps. The CX 5420 Series offers Virtual Switching Extension (VSX) for nonstop operations, MACsec-ready hardware, and simplified management via AOS-CX, Aruba Central, and CLI or GUI interfaces.
With industry-leading analytics via the Network Analytics Engine (NAE) and seamless integration with HPE GreenLake and Dynamic Segmentation, this module delivers future-proof scalability and security-first networking—all in a compact, modular design.
| Specification | Details |
|---|---|
| Product Number | S0U66A |
| Port Configuration | 16 x Smart Rate ports (1G/2.5G/5G) with IEEE 802.3bt Class 6 PoE support |
| PoE Capability | Up to 90W Class 8 PoE per port (IEEE 802.3bt) |
| Switching Capacity | 960 Gbps (480 Gbps in + 480 Gbps out) |
| Throughput | 714 Mpps |
| Latency | 2.5 microseconds |
| Buffer Memory | 64MB shared dynamically among ports |
| Memory | 16GB DDR4 SODIMM with ECC, 32GB eMMC flash |
| Operating System | Aruba AOS-CX |
| Management Interfaces | Aruba Central, CLI, Web GUI, SNMPv2c/v3, RMON, Switch Multi-Edit Software |
| Power Supply Compatibility | 4 hot-swappable, field-replaceable power supply slots |
| Power Consumption | 1600W @ 200–240 VAC; 1000W @ 100–127 VAC |
| Input Voltage | 100–127 VAC / 200–240 VAC |
| Operating Temperature | 0°C to 45°C (32°F to 113°F), derate 1°C every 1000ft above 5000ft |
| Product Dimensions (HxWxD) | 4.3 x 21.3 x 22.9 cm |
| Weight | 861.8 g |
| MACsec Support | Hardware-capable (software support available in future release) |
| Compliance & Certifications | IEEE 802.3bt, IEEE 802.1X, VXLAN, BGP, OSPF, PIM, REST API |
