Description

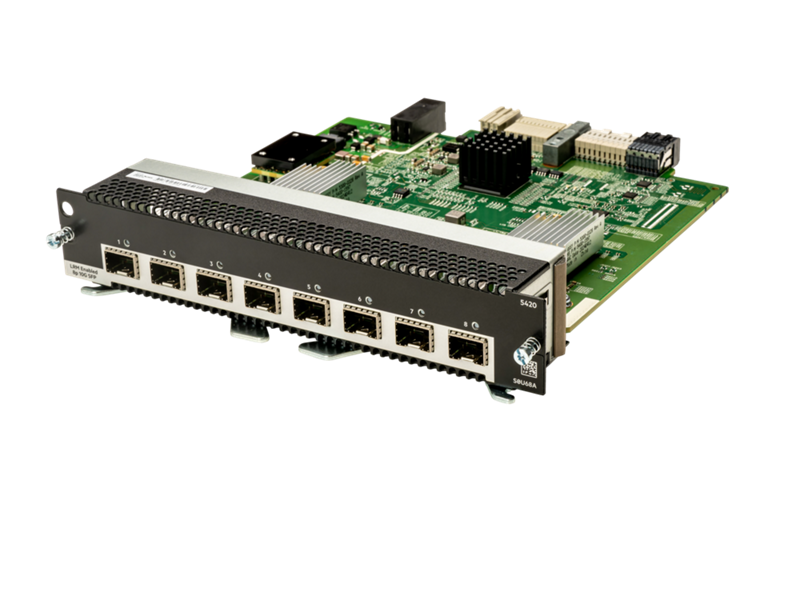

The HPE Aruba Networking CX 5420 8p SFP+ 1G/10G LRM Module (S0U68A) is a high-performance, MACsec-capable line card designed for the modular Aruba CX 5420 Series Switch chassis. This 8-port SFP+ module enables flexible 1G/10G LRM connectivity ideal for small to medium enterprise campuses and branch networks, delivering low-latency, wire-speed performance powered by the Gen7 ASIC architecture.
Engineered for scale, simplicity, and security, this module supports advanced features such as VSX Live Upgrade, HPE Aruba Networking Dynamic Segmentation, and the fully programmable AOS-CX operating system. Integrated with HPE Aruba’s Network Analytics Engine (NAE), it provides real-time insights and automation for proactive monitoring and remediation. Whether supporting Wi-Fi 6, IoT, or high-density access, the S0U68A module offers resilient and future-ready networking infrastructure.
| Specification | Details |
|---|---|
| Product Number | S0U68A |
| Form Factor | Line card module for CX 5420 modular switch chassis |
| Port Configuration | 8x SFP+ 1G/10G LRM ports |
| Latency | 2.5 microseconds |
| Throughput | 714 Mpps |
| Switching Capacity | 960 Gbps (480 Gbps in + 480 Gbps out) |
| PoE Capability | IEEE 802.3bt, Class 8 up to 90W (per switch series support) |
| Memory | 16 GB DDR4 ECC, 32 GB eMMC flash, 64 MB shared packet buffer |
| Software Support | AOS-CX, Network Analytics Engine, REST APIs, Python scripting, CLI, SNMP |
| Management Tools | Aruba Central, Switch Multi-Edit Software, Mobile App |
| Operating Temperature | 0°C to 45°C (derate 1°C per 1000 ft from 5000–10000 ft elevation) |
| Power Supply Compatibility | Supports up to 4 hot-swappable power supplies (modular chassis dependent) |
| Power Consumption | 1600W @ 200–240 VAC, 1000W @ 100–127 VAC (chassis level) |
| Dimensions (W x D x H) | 4.3 x 21.3 x 22.9 cm |
| Weight | 689.5 g |
| MACsec Support | Hardware capable (future software support) |
