Description

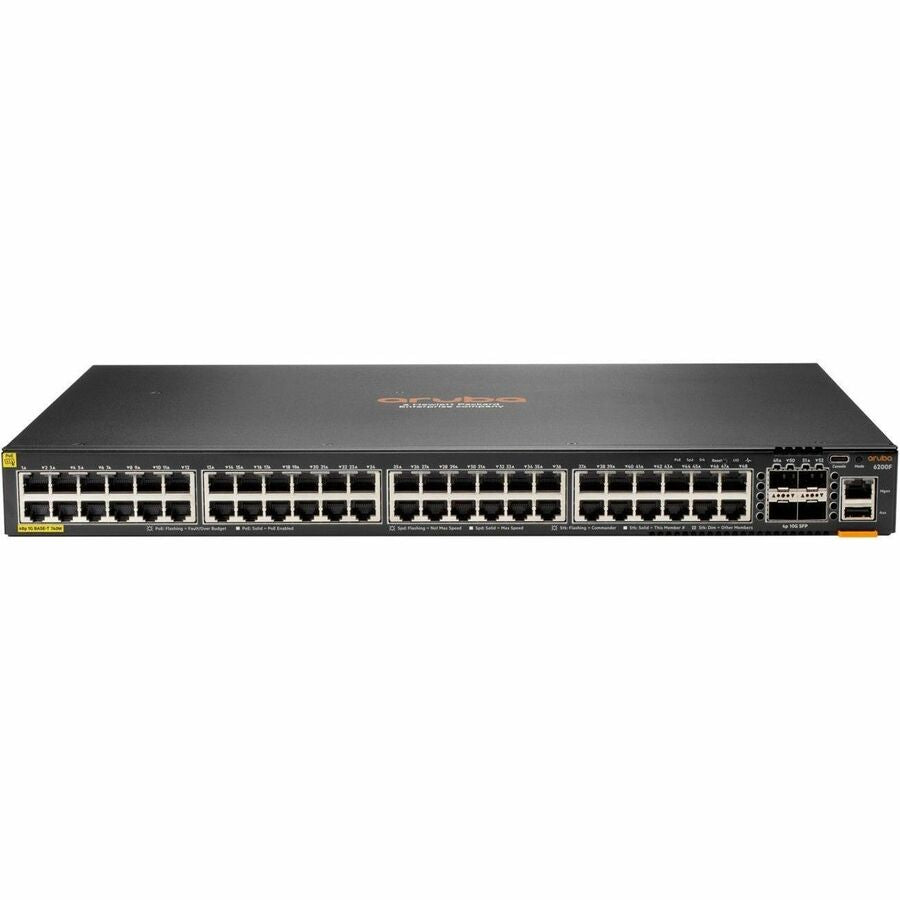

The HPE Aruba Networking CX 6200F 48G Class-4 PoE 4SFP+ 740W TAA Switch is a next-generation, enterprise-grade Layer 3 access switch designed for modern branch, campus, and SMB networks. Powered by Aruba’s Gen7 ASIC architecture and AOS-CX operating system, this model delivers cloud-native agility, scalable stacking, and intelligent analytics to support advanced connectivity and secure access.
With 48 x 10/100/1000 PoE+ ports and 4 x 1/10GbE SFP+ uplinks, this model supports up to 740W of Class 4 PoE, perfect for powering IoT devices and wireless access points. It supports front-to-back airflow, rack-mount installation, and TAA compliance for federal deployments.
Enhanced with Aruba Network Analytics Engine, Aruba NetEdit, and CX Mobile App, the switch simplifies configuration, monitoring, and troubleshooting. Flexible stacking (up to 8 switches via VSF) makes this model ideal for high-performance, scalable network architectures.
| Specification | Details |
|---|---|
| Product Code | S0M90A |
| Switch Type | Layer 3 Managed Stackable Access Switch |
| Ports | 48 x 10/100/1000BASE-T (PoE+) + 4 x 1/10GbE SFP+ uplink ports |
| PoE Budget | 740W Class 4 PoE (IEEE 802.3at) |
| Switching Capacity | Up to 176 Gbps |
| Throughput | Up to 130.9 Mpps |
| Latency | 1 Gbps: 2.28 μs, 10 Gbps: 1.46 μs |
| Processor | Quad-Core ARM Cortex-A72 @ 1.8 GHz |
| Stacking Support | Up to 8 members via Virtual Switching Framework (VSF) |
| Stacking Distance | Max 10 km with supported transceivers |

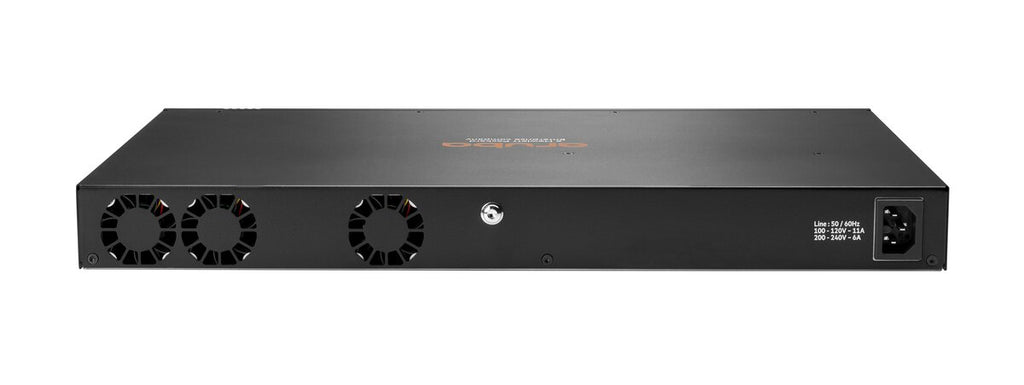

| Cooling | Front and side to back airflow |
| Power Supply | Internal (supports redundancy in modular variants) |
| Mounting | Rack-mountable (1U) |
| Input Voltage | 100V-120V / 200V-240V |
| Power Consumption | Max 76W at 230 VAC (model dependent) |
| Dimensions (H x W x D) | 1.73 x 17.4 x 12.9 in (4.39 x 44.2 x 32.8 cm) |
| Management | Aruba NetEdit, Aruba CX Mobile App, CLI, Web GUI, REST API |
| TAA Compliance | Yes |
| Operating System | Aruba AOS-CX |
