Description

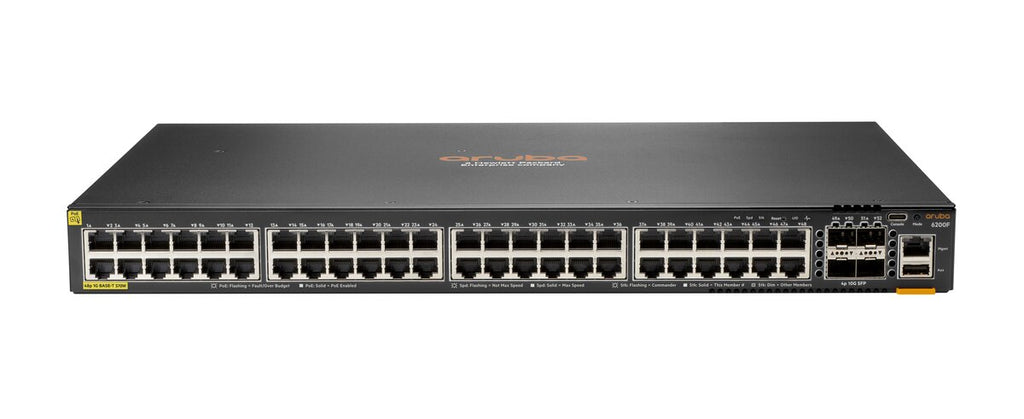

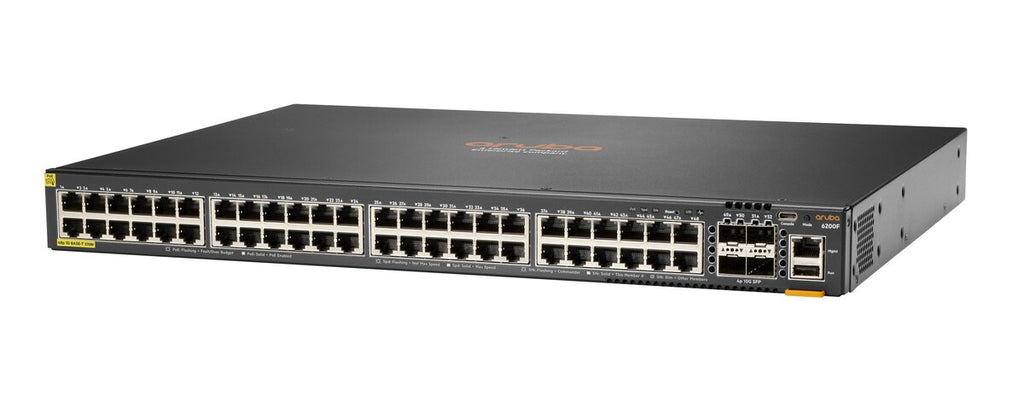

The HPE Aruba Networking CX 6200F 48G Class 4 PoE+ 4SFP+ 370W TAA Switch is a stackable, enterprise-grade Layer 3 managed access switch designed for modern campus, branch, and SMB environments. It features 48 Gigabit PoE+ ports and 4 high-speed 1/10G SFP+ uplink ports, ensuring high performance, scalability, and secure connectivity.
Powered by Aruba’s Gen7 ASIC architecture and managed through Aruba’s AOS-CX operating system, this switch delivers intelligent automation, built-in analytics with the Network Analytics Engine (NAE), and simplified configuration via the Aruba CX Mobile App and NetEdit.
Designed with flexibility and resilience in mind, this TAA-compliant switch supports Aruba Virtual Switching Framework (VSF) stacking for up to 8 members and provides up to 370W of PoE+ power—ideal for powering access points, cameras, and IoT devices.
| Feature | Details |
|---|---|
| Model Number | S0M89A |
| Ports | 48 × 10/100/1000BASE-T (PoE+), 4 × 1/10G SFP+ uplinks |
| Layer Support | Layer 3 |
| PoE Power Budget | 370W (IEEE 802.3at Class 4) |
| Stacking | Aruba VSF up to 8 switches |
| Max Stacking Distance | 10 km |
| Switching Capacity | Up to 176 Gbps |
| Throughput | Up to 130.9 Mpps |
| Latency | 1 Gbps: 2.28 μs, 10 Gbps: 1.46 μs |
| Processor | Quad Core ARM Cortex A72 @ 1.8 GHz |
| Management | Fully managed via AOS-CX, NetEdit, Aruba CX Mobile App |
| Power Supply | Internal, with support for redundant PSU |

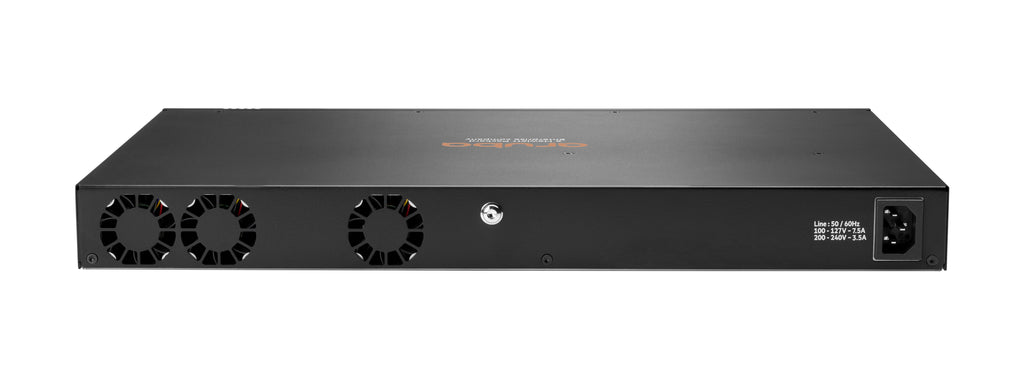

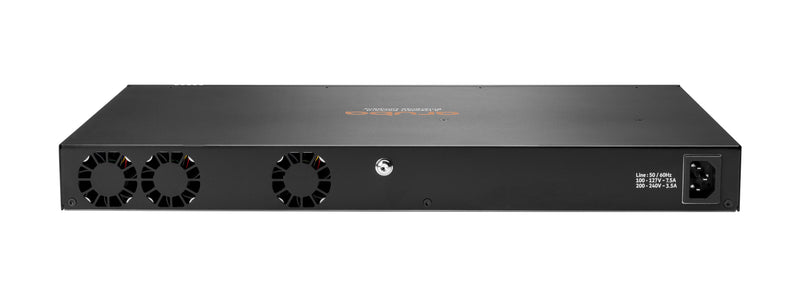

| Cooling | Front-to-side and side-to-back airflow |
| Mounting | Rack-mountable |
| Input Voltage | 100–120V / 200–240V |
| Max Power Consumption | 76W (at 230 VAC, varies by model) |
| Dimensions | 1.73 x 17.4 x 12.9 in (4.4 x 44.2 x 32.7 cm) |
| Weight | 11.24 lbs (5.1 kg), varies by model |
| Compliance | TAA Compliant |
