Description

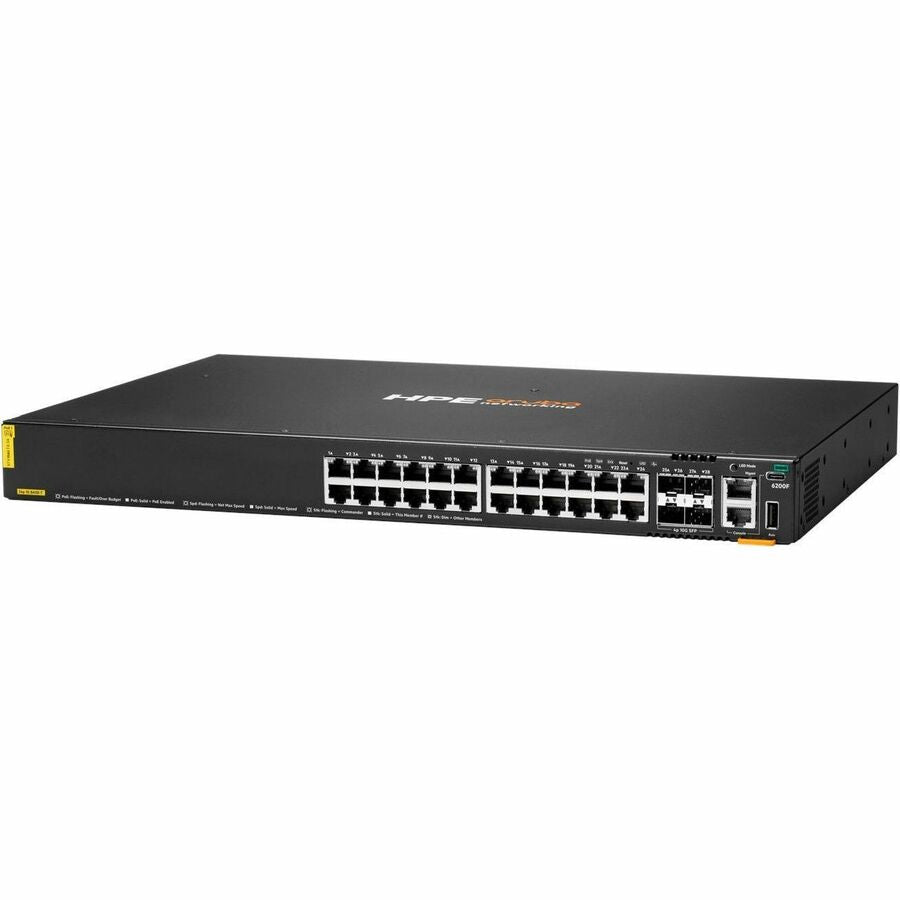

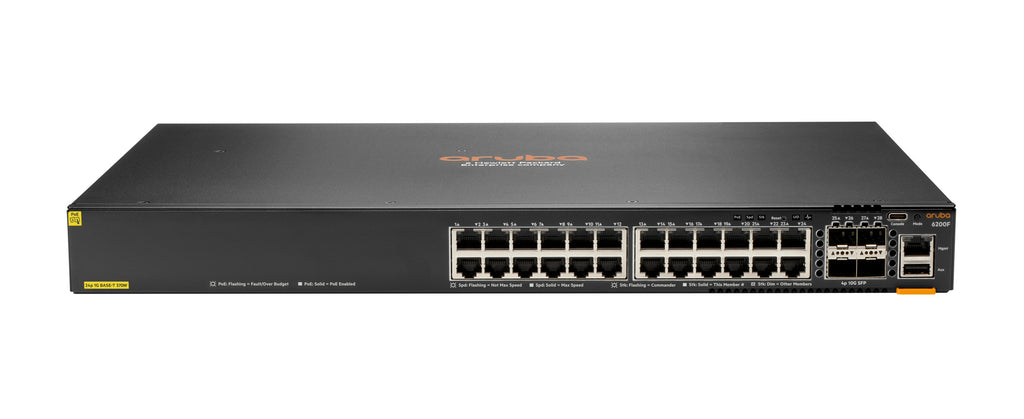

The HPE Aruba Networking CX 6200F JL725B#ACJ is a high-performance, enterprise-grade Layer 3 switch ideal for branch offices, SMBs, and enterprise edge networks. Featuring 24 x 10/100/1000BASE-T Class 4 PoE ports and 4 x 1/10G SFP+ uplinks, this rack-mountable switch delivers robust power and performance with up to 370W of PoE+ to support IoT and access devices like security cameras and wireless APs.
Powered by HPE Aruba’s Gen7 ASIC architecture and the ArubaOS-CX operating system, the 6200F offers seamless network automation, real-time analytics, and simplified management with support for HPE’s Network Analytics Engine (NAE), Virtual Switching Framework (VSF) stacking for up to 8 members, and unified management via Aruba Central or CLI.
Whether you need intelligent segmentation, zero-touch provisioning, or automated policy enforcement, the CX 6200F provides the agility and scalability modern networks demand.
| Specification | Details |
|---|---|
| Model Number | JL725B#ACJ |
| Product Series | HPE Aruba Networking CX 6200F |
| Switch Type | Layer 3 Managed Switch |
| Ports | 24x 10/100/1000BASE-T PoE+ (Class 4), 4x 1G/10G SFP+ uplinks |
| PoE Budget | 370W (IEEE 802.3af/at) |
| Max Stacking Distance | 10 km |
| Stacking | Up to 8 members via VSF (Virtual Switching Framework) |
| Memory | 8 GB DDR4 |
| Flash Storage | 16 GB eMMC |
| CPU | Quad-Core ARM Cortex-A72 1.8 GHz |
| Throughput | Up to 95.2 Mpps |
| Switching Capacity | 128 Gbps |
| Latency | 2.28 µs (1G), 1.46 µs (10G) |
| Management | Aruba Central, CLI, Web GUI, REST APIs, Aruba CX Mobile App |
| Power Supply | Fixed, 370W PoE |
| Power Input | 100–120V / 200–240V AC |
| Typical Power Consumption | 65W at 230V AC |
| Mounting | Rack-mountable |
| Console Ports | 1x RJ-45, 1x USB-C |
| Out-of-Band Management (OOBM) | 1x RJ-45 OOBM port |
| USB Host Port | 1x USB Type-A |
| Dimensions | 44.25 x 32.05 x 4.39 cm (W x D x H) |
| Weight | Approx. 5.1 kg |
