Description

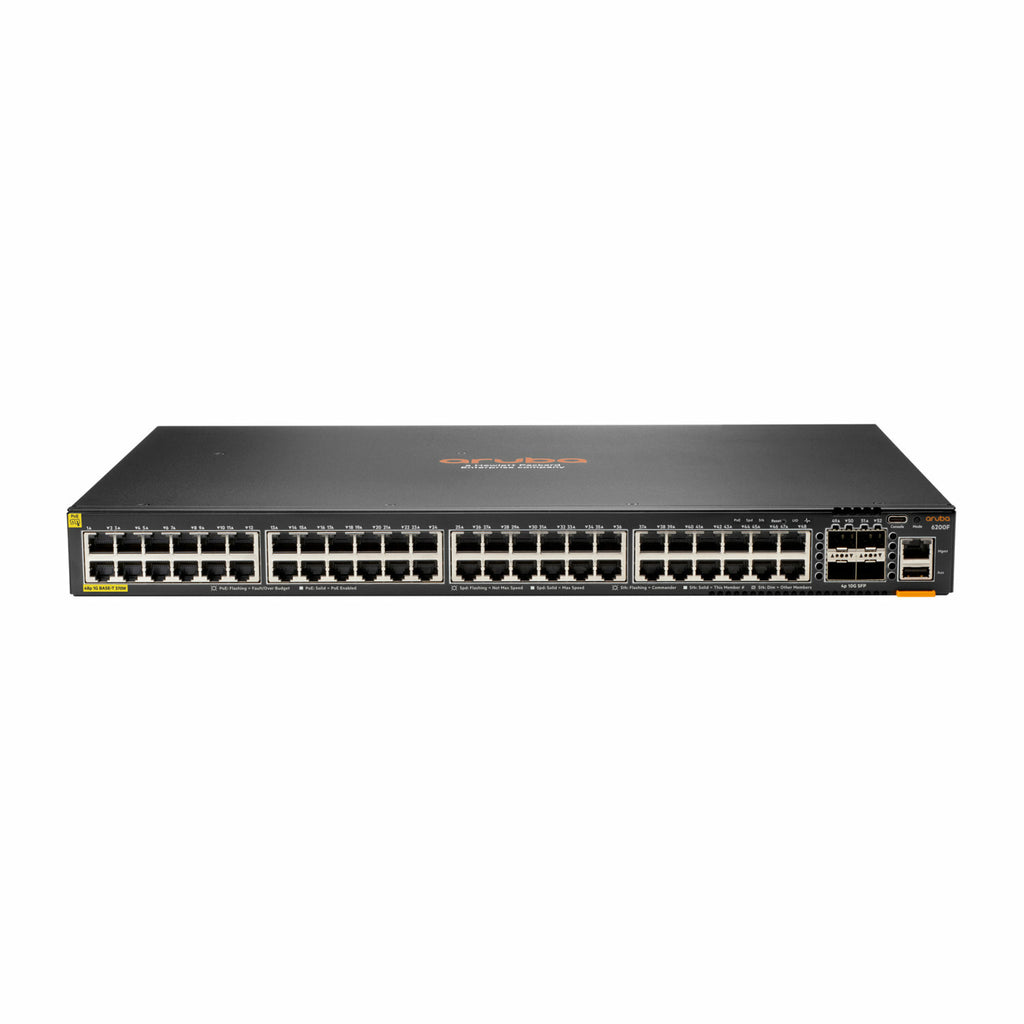

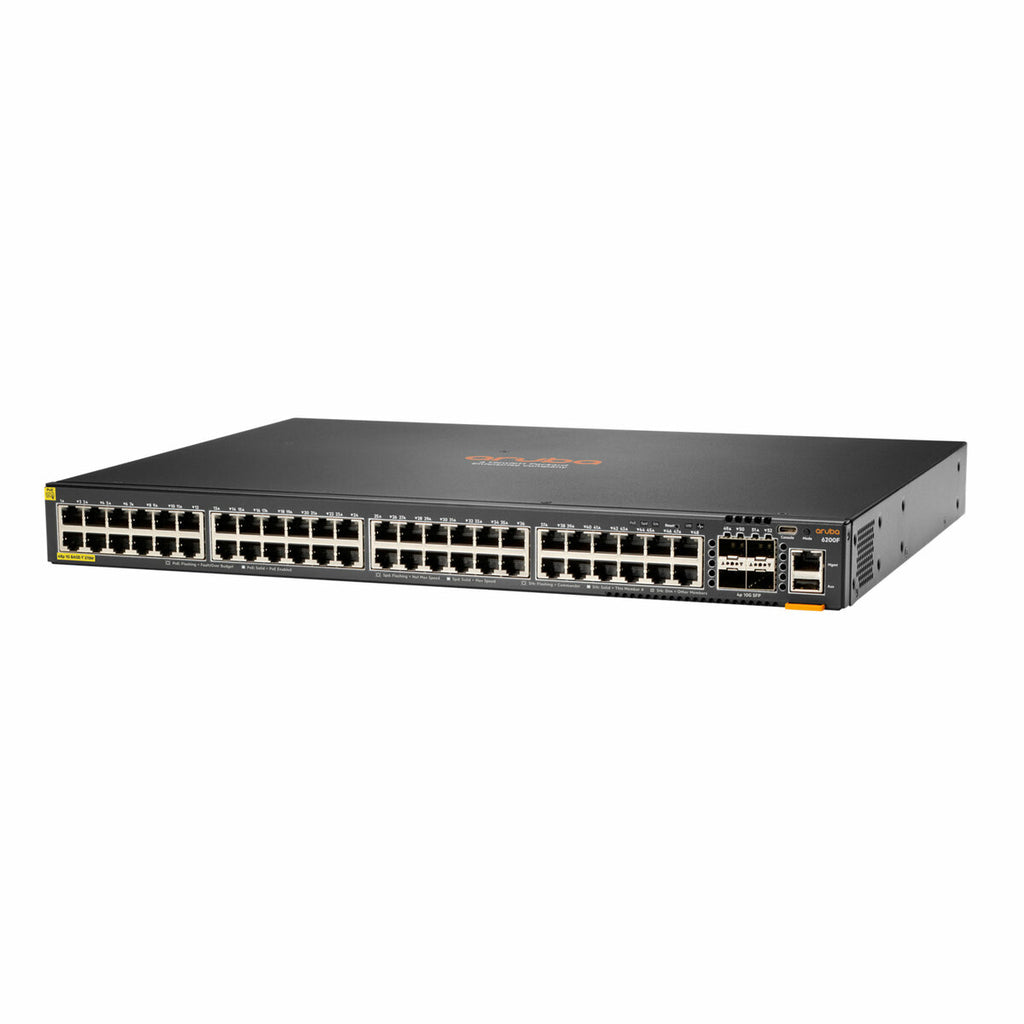

The HPE Aruba Networking CX 6200F 48G Class-4 PoE+ 4SFP+ 370W Switch (JL727B#ABB) is an enterprise-grade Layer 3 managed switch designed for high-performance edge access in SMBs, branch offices, and campus environments. Featuring 48 Class-4 PoE+ ports, 4 SFP+ uplinks, and a 370W PoE budget, it delivers seamless connectivity for wired and IoT devices like IP phones, cameras, and wireless APs.
Powered by Aruba’s 7th-gen ASIC architecture, this model supports Virtual Stacking Framework (VSF) for up to 8 switches, simplifying scalability and management. With built-in analytics, Zero Touch Provisioning, and automation via Aruba Central or MultiEdit, this switch is ideal for modern, cloud-native, and dynamic environments requiring speed, visibility, and resilience.
| Specification | Details |
|---|---|
| Model Number | JL727B#ABB |
| Switch Type | Layer 3 Managed Access Switch |
| Ports | 48 × 10/100/1000BASE-T PoE+ (Class 4)4 × 1G/10G SFP+ uplink ports |
| PoE Power Budget | 370W total |
| Max PoE per Port | 30W (IEEE 802.3at) |
| Stacking | Up to 8 switches via Virtual Stacking Framework (VSF) |
| Stacking Distance | Up to 10 km |
| Switching Capacity | 176 Gbps |
| Throughput | 130.9 Mpps |
| Latency | 1Gbps: 2.28 μs10Gbps: 1.46 μs |
| Processor | Quad-Core ARM Cortex A72 1.8 GHz |
| Memory | 8 GB DDR4 RAM, 16 GB eMMC flash |
| Console Ports | 1 × USB-C, 1 × RJ-45 |
| USB Ports | 1 × USB Type-A host |
| Out-of-Band Management (OOBM) | 1 × RJ-45 |
| Form Factor | Rack-mountable |
| Airflow | Front-to-back and side-to-back airflow options |
| Power Supply | Fixed internal (370W) |
| Input Voltage | 100–120V / 200–240V |
| Power Consumption | 76W at 230 VAC |
| Software Features | ACLs, QoS, Static and Access OSPF Routing, REST APIs, Python Automation |
| Management | Aruba Central, Multi-Edit, Web GUI, CLI |
| Mounting | Rack-mountable |
| Build to Order (BTO) | Yes |
