Description

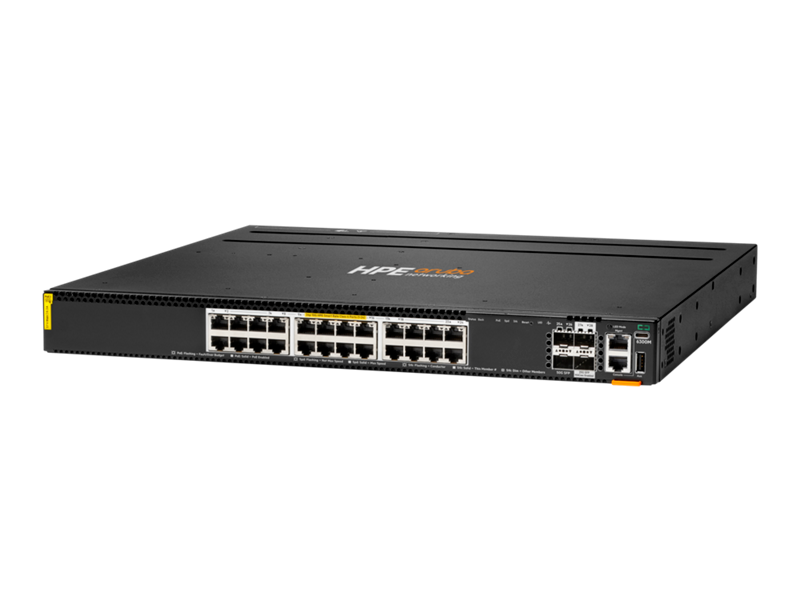

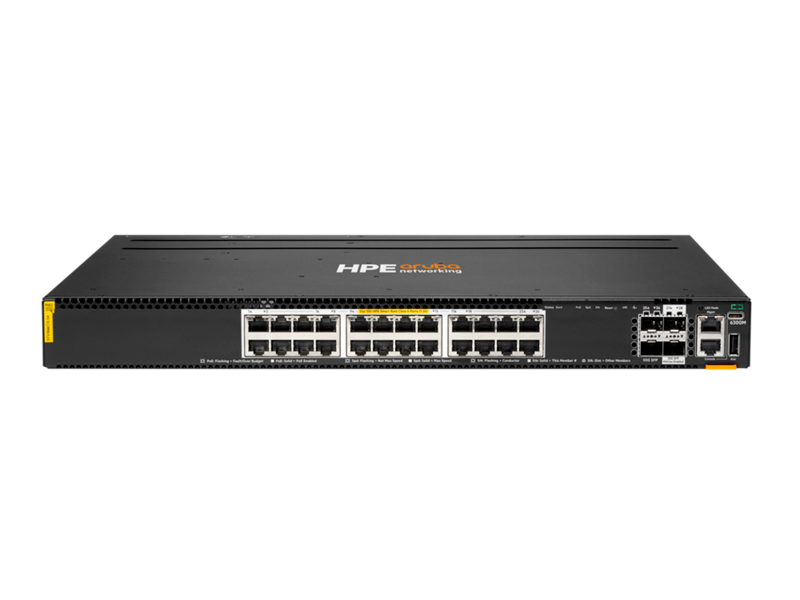

The HPE Aruba Networking CX 6300M S0F99A is a powerful, intelligent, and stackable Layer 3 switch designed for access, aggregation, and data center top-of-rack deployments. With 24 Class 4 PoE-enabled 10M/100M/1G ports and four high-speed SFP56 uplinks supporting up to 50GbE, this switch delivers robust performance, flexibility, and advanced analytics.
Powered by a next-gen ASIC architecture and supported by Aruba’s Network Analytics Engine, it offers advanced telemetry, network visibility, and zero-touch automation. Seamlessly manage your entire network with Aruba Central, AirWave, or the intuitive Multi-Edit Software and mobile app. Ideal for high-performance edge access, multi-gigabit APs, and IoT connectivity, this TAA-compliant model supports up to 10-unit stacking and high availability with non-blocking throughput.
| Specification | Details |
|---|---|
| Product Number | S0F99A |
| Port Configuration | 24 × 10M/100M/1G RJ-45 PoE Class 4 ports |
| Uplink Ports | 4 × SFP56 (up to 50G per port) |
| Switching Capacity | Up to 1.76 Tbps |
| Forwarding Throughput | Up to 1310 Mpps |
| PoE Support | IEEE 802.3bt Class 4 (30W per port); total PoE budget model-dependent |
| Stacking | Up to 10 switches; 200–400 Gbps stacking bandwidth |
| Processor | Quad-Core ARM Cortex-A72 @ 1.8GHz |
| Memory | 8 GB DDR4 RAM, 32 GB eMMC flash |
| Buffer Memory | 8 MB / 16 MB / 32 MB (model-dependent) |
| Management Options | Aruba Central, AirWave, CLI, REST API, Multi-Edit Software, Mobile App |
| Layer 3 Features | BGP, EVPN, VXLAN, OSPF, VRF, PTP, MACsec 256, QoS, AVB |
| Security Features | Role-based access, dynamic segmentation, Layer 7 firewall |
| Analytics Engine | Built-in Network Analytics Engine (NAE) for telemetry & monitoring |
| Form Factor | 1U rack-mountable |
| Dimensions (WxDxH) | 44.2 × 38.5 × 4.4 cm |
| Weight | Approx. 6.02 kg |
| TAA Compliant | Yes |
