Description

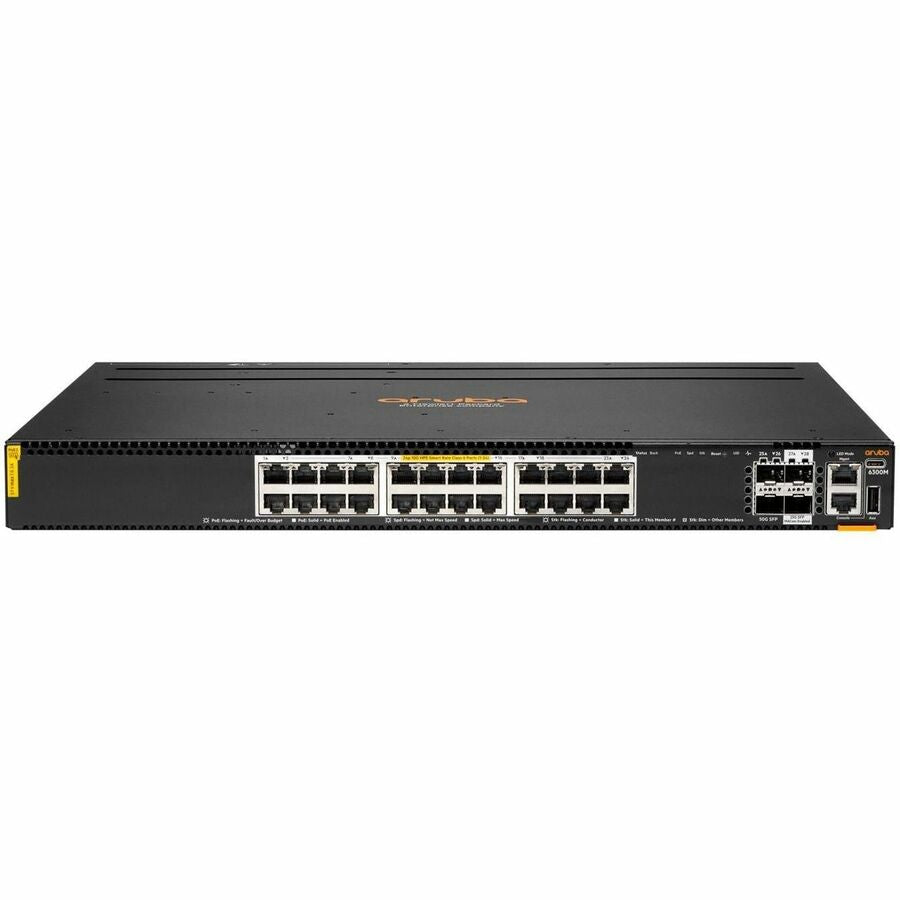

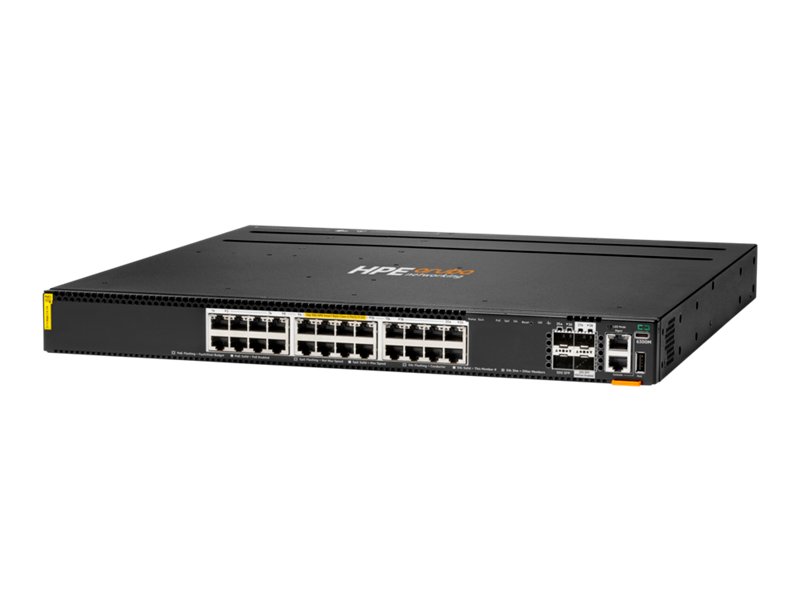

The HPE Aruba Networking CX 6300M S0G05A is a powerful, stackable Layer 3 switch engineered for high-performance access and aggregation in enterprise and campus networks. Featuring 24 Smart Rate Multi-Gigabit ports (1G/2.5G/5G) with Class 6 PoE and 4 SFP56 50G uplinks, this switch enables high-speed connectivity for demanding workloads, including access points and IoT devices.
Built on a modern ASIC architecture, it supports up to 1760 Gbps switching capacity, delivers up to 1310 Mpps throughput, and enables front-plane stacking of up to 10 switches. Integrated with the Aruba Network Analytics Engine, it ensures deep visibility, automation, and real-time troubleshooting, while Aruba Central and Switch Multi-Edit Software simplify management at scale.
Whether in the access layer or data center edge, the CX 6300M provides unparalleled performance, scalability, and enterprise-grade automation capabilities.
| Specification | Details |
|---|---|
| Product Number | S0G05A |
| Ports | 24x Smart Rate 1G/2.5G/5G with Class 6 PoE, 4x SFP56 50G uplinks |
| PoE Capability | Supports Class 4 (30W), Class 6 (60W), Class 8 (90W); up to 2880W max |
| Switching Capacity | Up to 1760 Gbps |
| Throughput | Up to 1310 Mpps |
| Stacking Support | Up to 10 switches (CX 6300M only) |
| Processor | Quad-Core Arm Cortex-A72 @ 1.8 GHz |
| Memory | 8 GB DDR4 RAM, 32 GB eMMC storage |
| Packet Buffer | 8 MB / 16 MB / 32 MB shared memory (model-dependent) |
| Management | Aruba Central, AirWave, Multi-Edit Software, CLI, SNMP v2c/v3, RMON |
| Automation & Analytics | Built-in NAE, Python, REST API, Time Series Database |
| Advanced Features | VXLAN, VRF, BGP, EVPN, OSPF, QoS, MACsec 256, PTP, AVB, LRM |
| Power Options | Multiple PoE budget SKUs (370W to 2880W max), depending on PSU config |
| Dimensions (WxDxH) | 44.2 x 38.5 x 4.4 cm |
| Weight | 6.02 kg (max, varies by model) |
| TAA Compliant | Yes |
| Airflow | Front-to-back (ideal for data centers) |
