Description

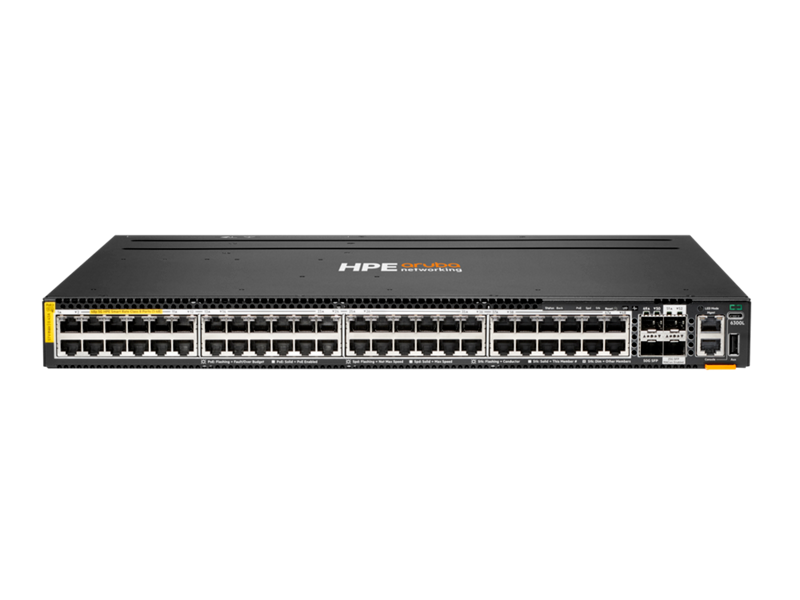

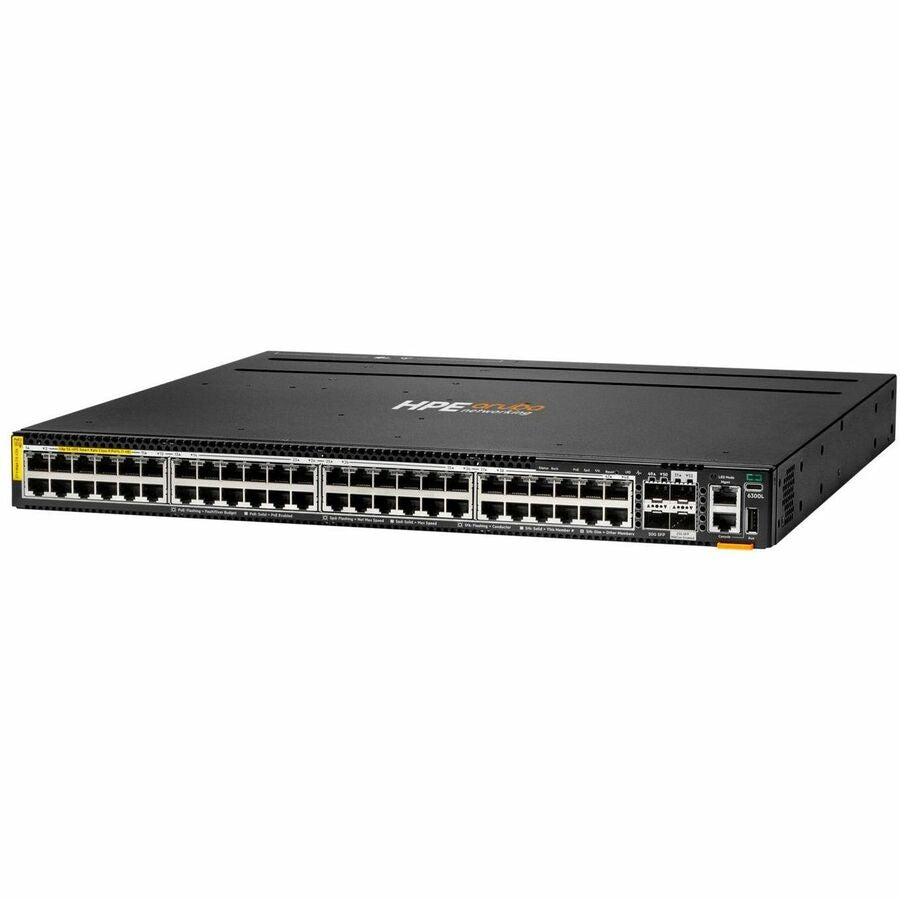

The HPE Aruba Networking CX 6300L (S3L76A) is a high-performance, stackable Layer 2 switch featuring 48 Smart Rate 100M/1G/2.5G/5G BaseT Class 8 PoE ports with up to 90W power per port. Designed for next-gen access networks, this intelligent and flexible switch supports automation, robust security, and advanced monitoring with the Aruba Network Analytics Engine (NAE).
It includes two SFP56 ports for 10/25/50G and two SFP28 ports for 10/25G uplinks, ensuring high-speed connectivity and VSF stacking capability. Built on a Gen7 ASIC architecture, it delivers wire-speed performance, ultra-low latency, and enhanced PoE power delivery—ideal for modern enterprise networks supporting Wi-Fi 6/6E APs and IoT deployments.
Enhanced with MACsec encryption, full power redundancy, and intuitive cloud or app-based management via Aruba Central and the CX Mobile App, this switch is purpose-built for secure, scalable, and high-density deployments.
| Specification | Details |
|---|---|
| Model Number | S3L76A |
| Port Configuration | 48x 100M/1G/2.5G/5G Base-T PoE+ (Class 8, up to 90W/port, MACsec) |
| 2x SFP56 (10/25/50G) uplink ports | |
| 2x SFP28 (10/25G, MACsec) uplink ports | |
| Console & Management Ports | 1x USB-C Console, 1x RJ-45 Console, 1x OOBM, 1x USB Type-A Host |
| PoE Support | IEEE 802.3af, 802.3at, 802.3bt; Max PoE Power: 2880W |
| Stacking Support | Up to 10 CX 6300L switches via VSF; 50G DAC capable |
| Switching Capacity | 780 Gbps |
| Throughput | 580 Mpps |
| Latency | 1G: 4.24μs, 10G: 1.50μs, 25G: 2.91μs, 50G: 3.49μs |
| Processor & Memory | Quad-core ARM Cortex-A72 @1.8GHz, 8GB DDR4, 32GB eMMC, 16MB buffer |

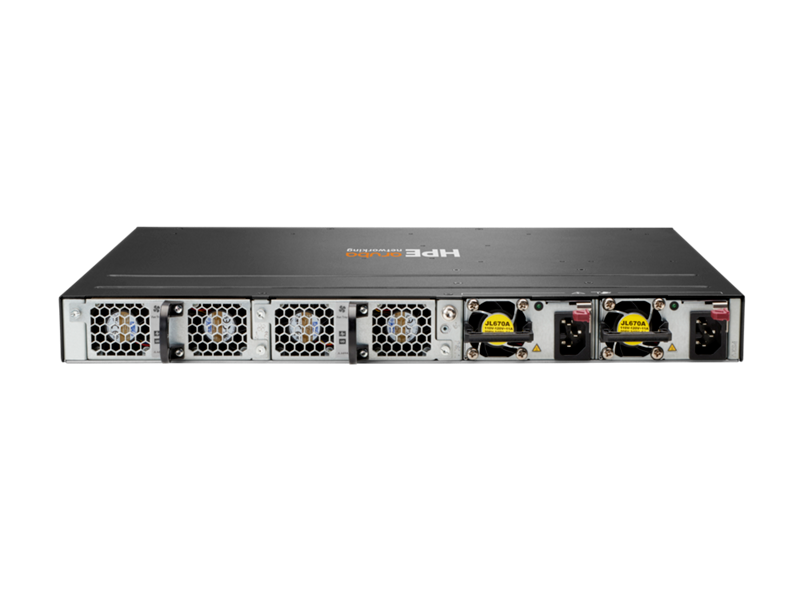

| Power Supply Options | 2x Hot-swappable (1 required), supports JL086A, JL087A, JL670A, JL758A |
| Input Voltage | 100V–240V (model dependent) |
| Power Consumption | Idle: 104–115W; Max: 173–184W (depending on PSU) |
| Operating Temperature | 0°C to 45°C (short excursions up to 55°C supported) |
| Dimensions (WxDxH) | 44.2 x 38.5 x 4.4 cm |
| Weight | Up to 6.02 kg |
| Software Features | Layer 2 Switching, Static Routing, NAE, MACsec, Central & Mobile App Mgmt. |
| Mounting | Rack-mountable (1U) |
| Notes | 100M Smart Rate is full-duplex only; Stacking not supported on 1G ports |
