Description

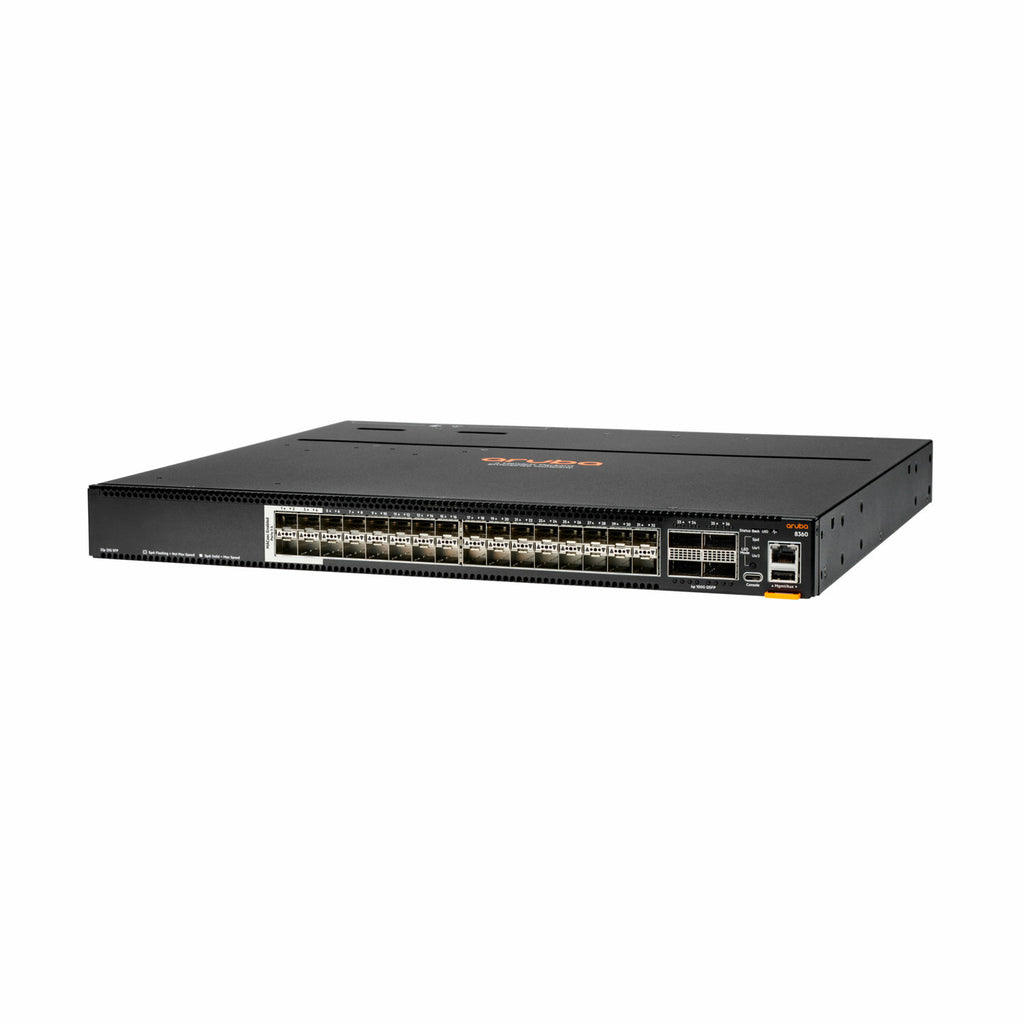

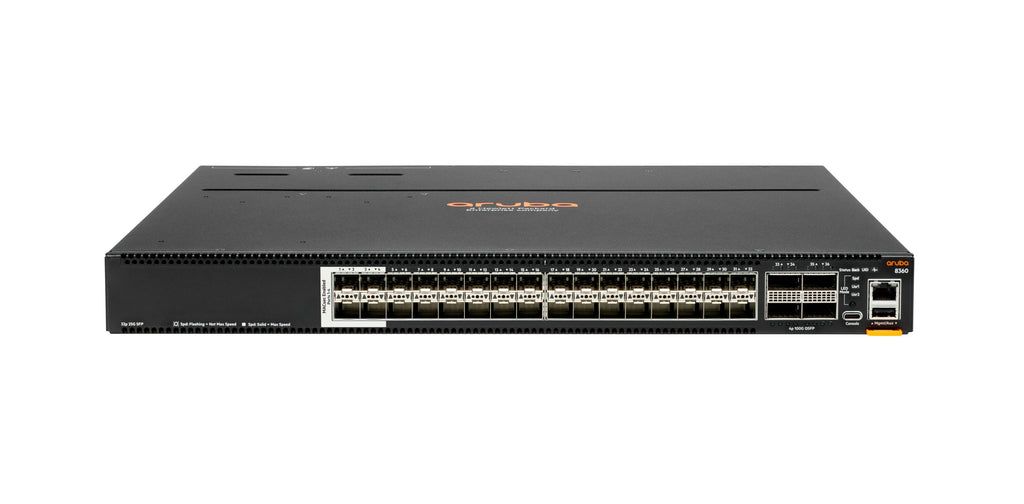

The HPE Aruba Networking CX 8360-32Y4C is a next-generation Layer 3 switch designed for high-performance enterprise campus cores and data center deployments. Equipped with 28 high-speed 1/10/25GbE SFP ports, 4 secure 10/25GbE MACsec-capable ports, and 4 ultra-fast 40/100GbE QSFP+/QSFP28 uplinks, it supports massive throughput and secure connectivity in a compact 1U rack-mount form factor.
This switch runs on the powerful AOS-CX operating system, enabling intelligent network visibility, seamless automation, and fabric-wide orchestration. It’s built to support emerging edge-cloud environments and bandwidth-heavy applications. With VSX redundancy, advanced Layer 2/3 features, and TAA compliance, this model offers top-tier performance, flexibility, and security—all bundled with 2 power supplies and 3 fans for high availability and front-to-back airflow.
| Specification | Details |
|---|---|
| Model Number | JL700A#B2B |
| Form Factor | 1U Rack-mountable |
| Switch Type | Layer 3, Managed |
| Ports | 28 × 1/10/25GbE (SFP/SFP+/SFP28) 4 × 10/25GbE MACSec (SFP28) 4 × 40/100GbE (QSFP+/QSFP28) |
| MACSec Support | Yes, on 4 x 10/25GbE ports |
| Airflow | Front-to-back |
| Processor | 1.8 GHz, 4-core, 64-bit |
| Memory | 16 GB RAM, 32 GB Flash |
| Latency | 1 µs |
| Throughput | 2,000 Mpps |
| Switching Capacity | 2.4 Tbps |
| Input Voltage | 100–127V / 200–240V AC |
| Power Consumption | 550W max |
| Power Supplies | 2 (Included) |
| Fans | 3 (Included) |
| Dimensions (WxDxH) | 17.4 x 16.0 x 1.73 in |
| Weight | 18.05 lbs |
| Compliance | TAA Compliant |
| OS | HPE Aruba Networking AOS-CX |
